ADF Retard Roller Cover

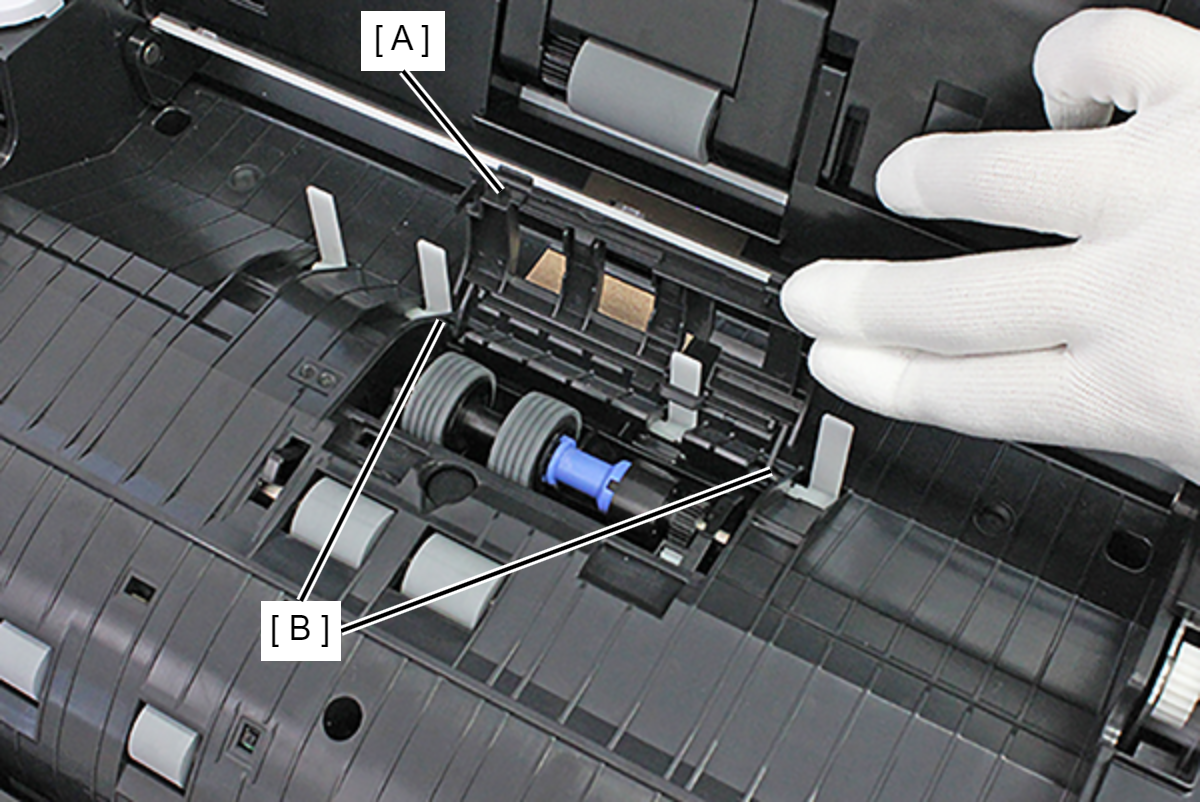

- Remove the two shafts (B) of the ADF Retard Roller Cover (A) from the hole in the Housing.

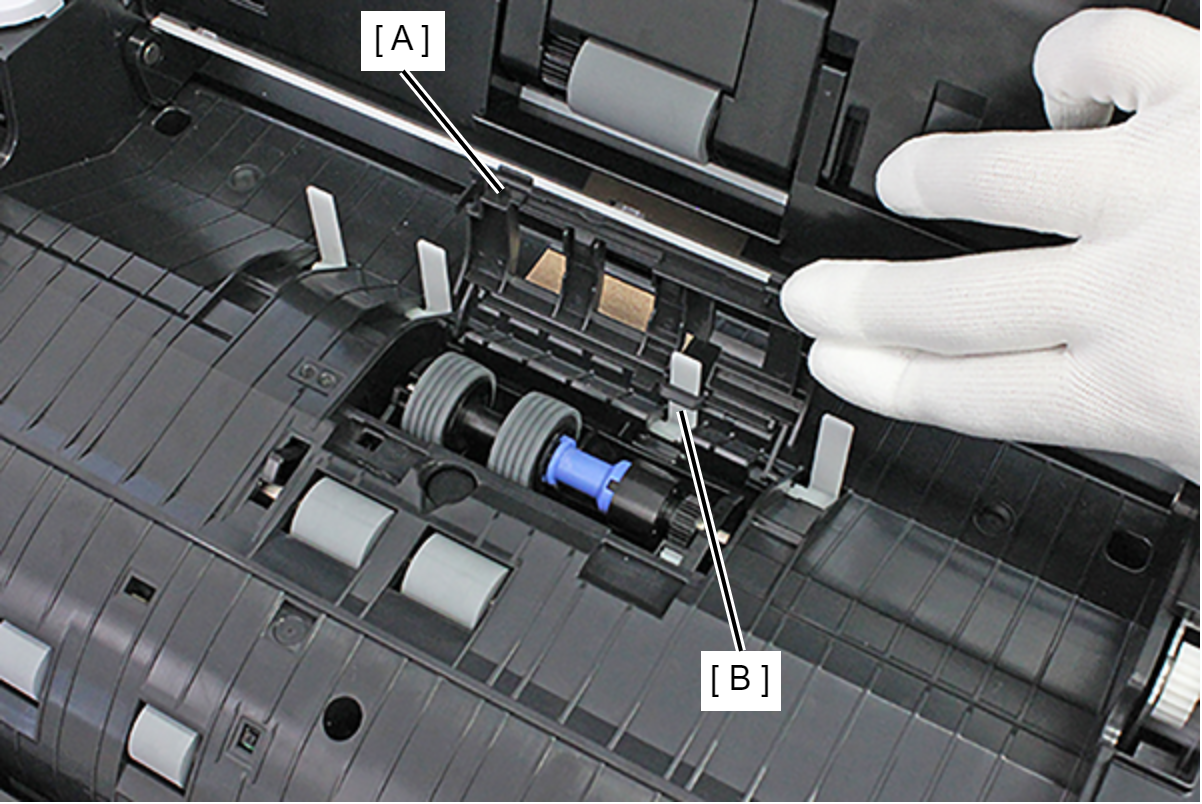

Assembly / 組み立てSet the Document Stopper (B) in the ADF Retard Roller Cover (A).
