Manual stapler

  1. Open the Duplex Print Cover (A).

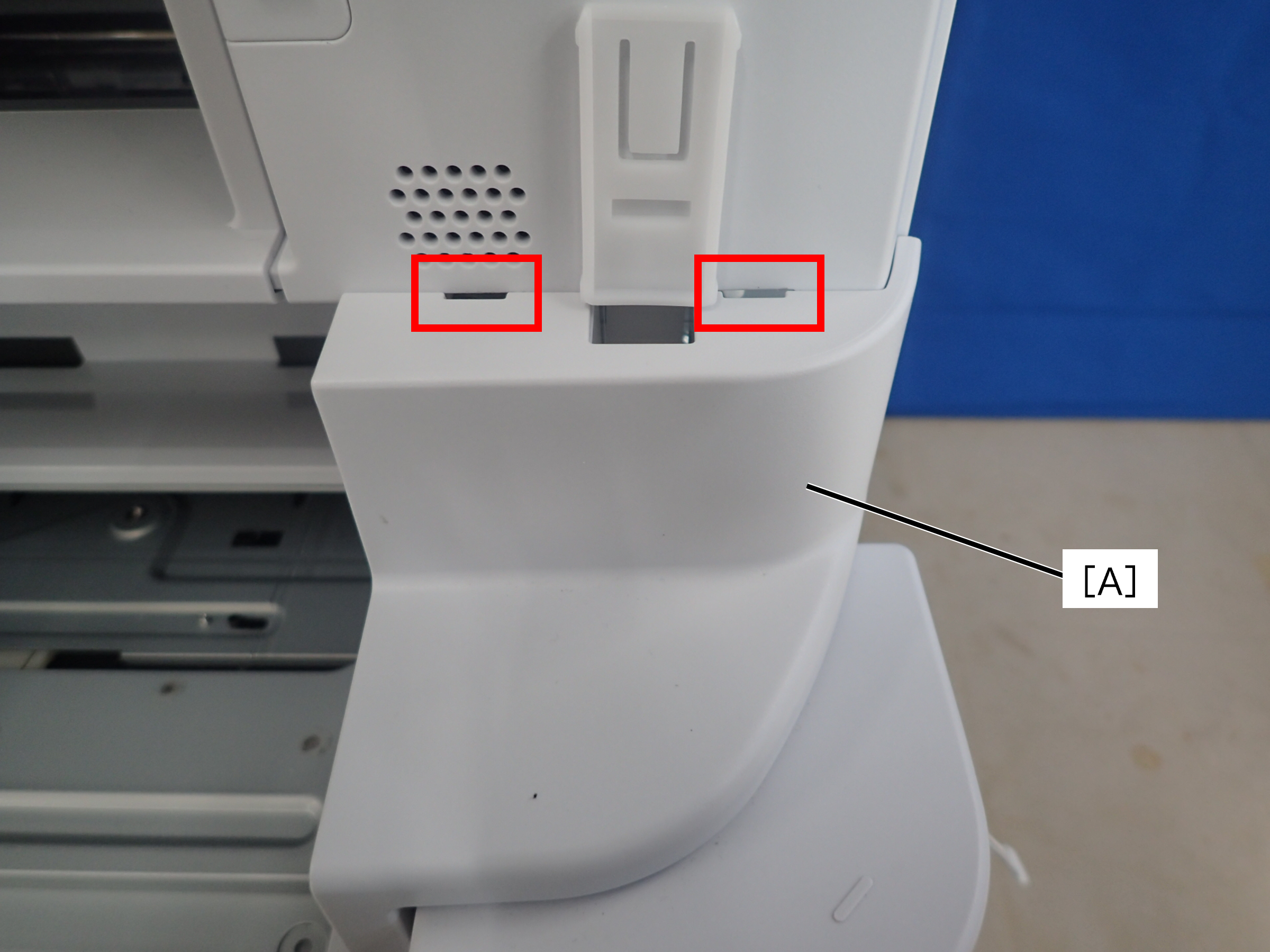

  2. Remove the two screws, then remove the Connector Cover (A).

    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C

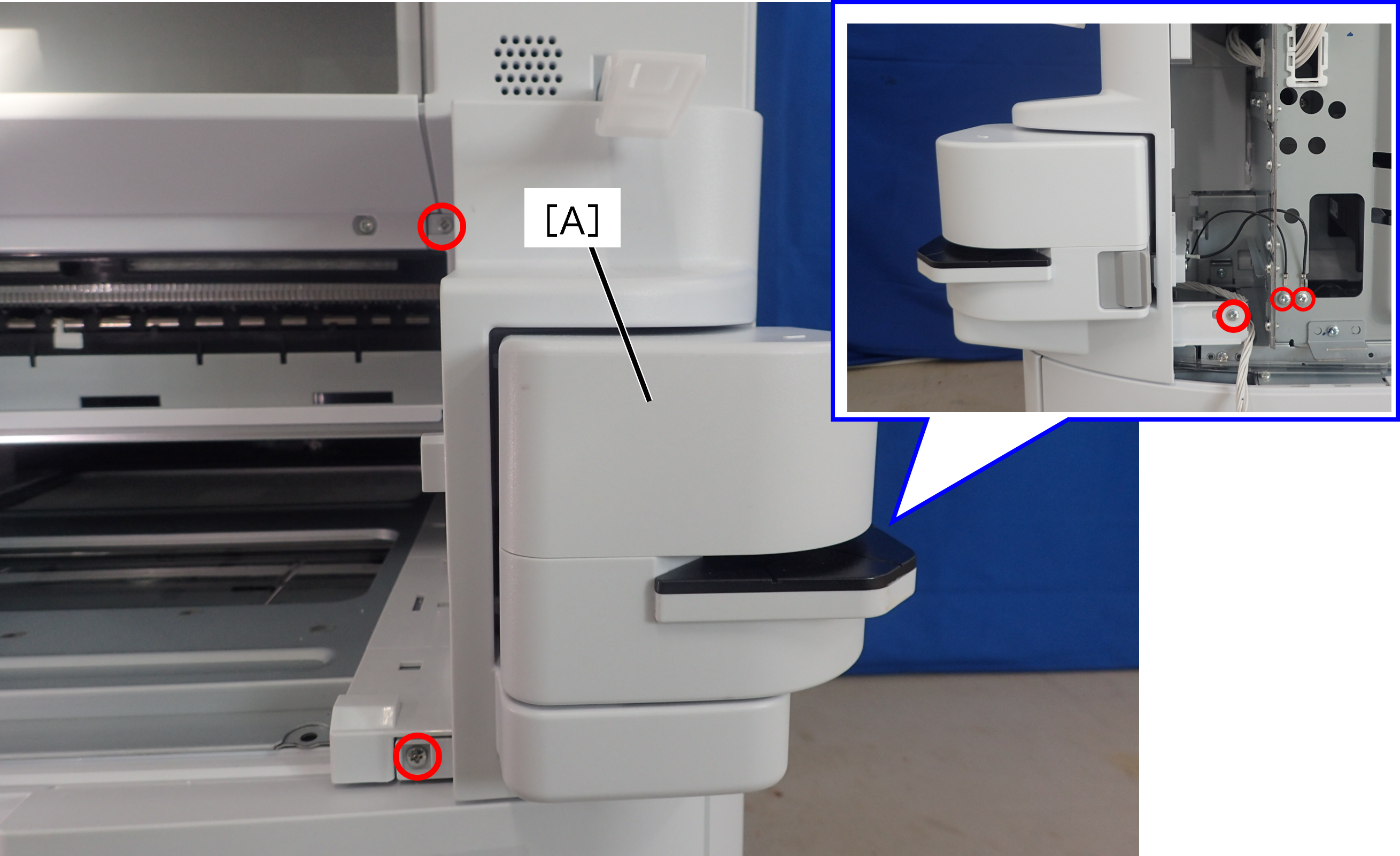

  3. Remove the two screws, then remove the Right Housing Assy (A) toward the rear of the product.

    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
  4. Remove the Stacker Assy (A).


  5. Remove the Cassette Assy (A).
  6. Open the Front Cover Assy (A).
  7. While pressing the two hooks of the hinge (A), remove the Front Cover Assy (A) frontward.

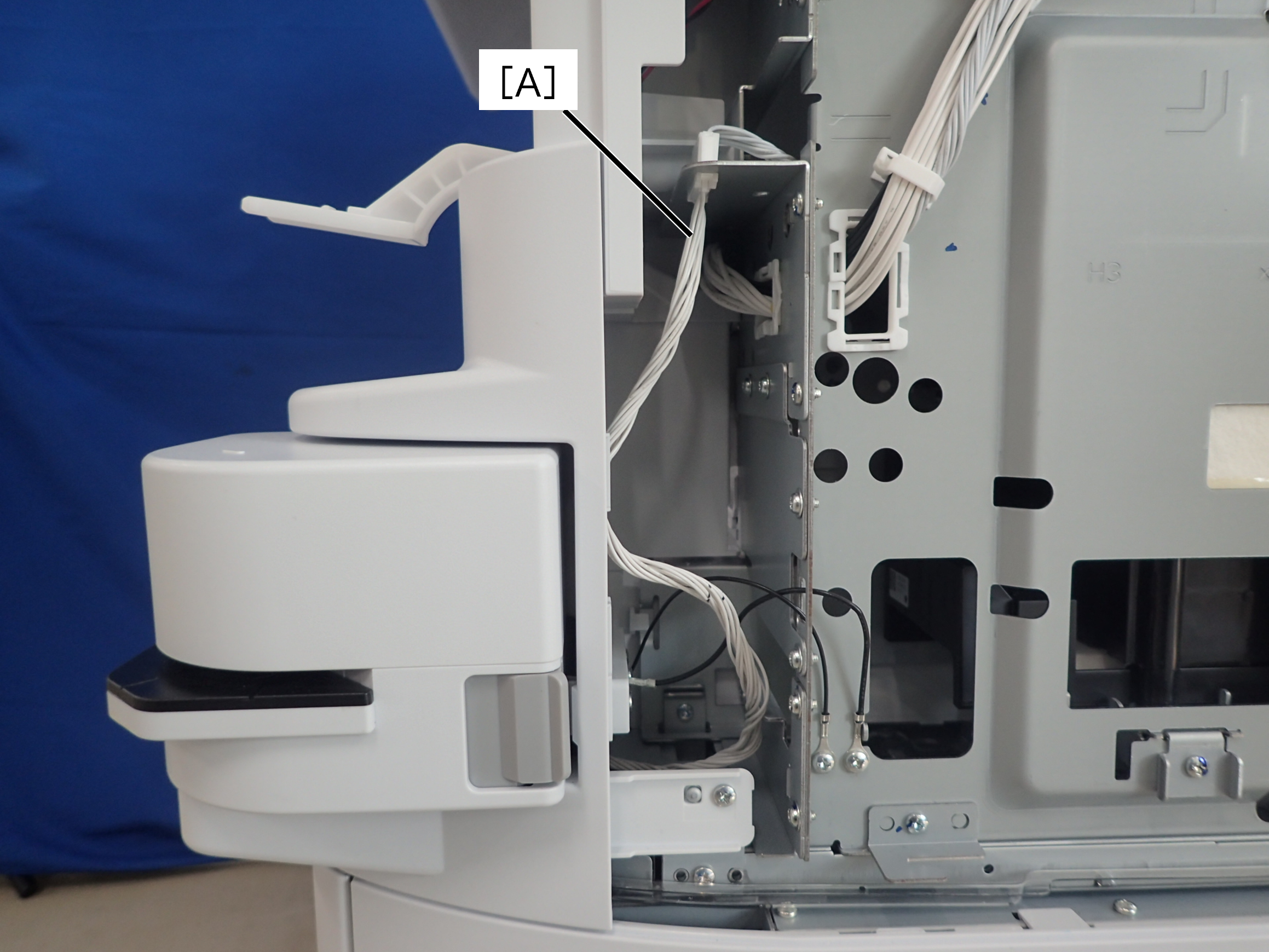

  8. Remove the connector (A).
  9. Remove the three screws fixing the manual stapler (A) and the two screws fixing the ground.

    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
  10. Release the two hooks and remove the manual stapler (A).
