Installation environment

Install this product at a site that satisfies the following conditions:

Well-ventilated site
Site where ventilation ports are not blocked
Site where an exclusive power outlet can be secured
Site where paper can be loaded and printed paper can be removed without exerting unnecessary force
A level site capable of withstanding the following weight and ensuring the following space (For detailed specifications, refer to Product Descriptions.)

Printer main unit only

Items			Specification
External dimensions	For storage	Width	621 mm
		Depth	751 mm
		Height	711 mm
	For printing	Width	621 mm
		Depth	941 mm
		Height	760 mm
Weight			79.3 kg

Basic model (Printer main unit + one additional cassette)

Items			Specification
External dimensions	For storage	Width	621 mm
		Depth	751 mm
		Height	837 mm
	For printing	Width	621 mm
		Depth	941 mm
		Height	887 mm
Weight			90.9 kg

Fully set model (Basic model + full options)

Items			Specification
External dimensions	For storage	Width	772 mm
		Depth	797 mm
		Height	1177 mm
	For printing	Width	772 mm
		Depth	941 mm
		Height	1226 mm
Weight			144.7 kg

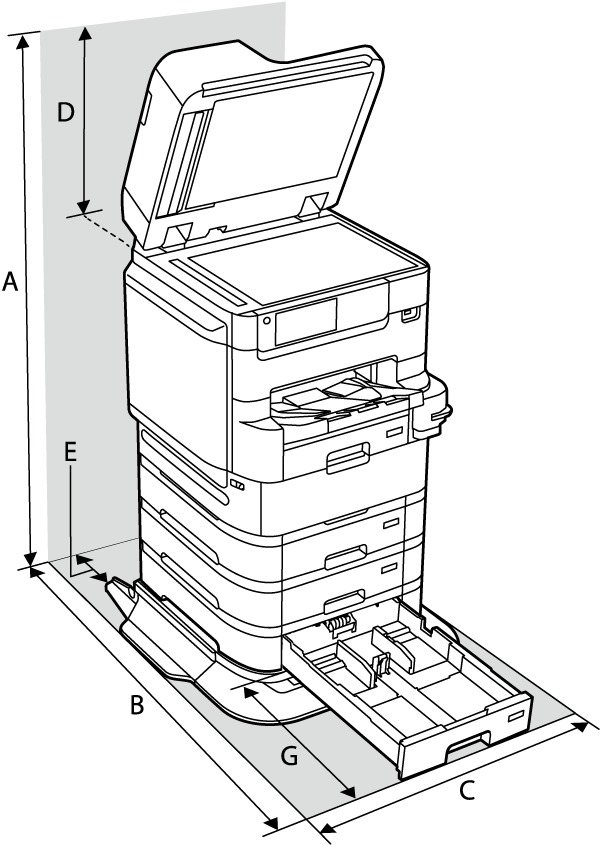

Installation space

Required space
A	1555 mm
B	1324 mm
C	772 mm
D	523 mm
E	100 mm
F	529 mm
