# Front ADF Cover/Front ADF Cover Support

1. Remove the five screws.

   • : C.B.S-TITE.P4.SCREW-3x6-F.ZN-3C
   • : C.B.P-TITE.P4.SCREW-3x10-F.ZN-3C
2. Disengage the two hooks, and remove the Front ADF Cover Assy (A).

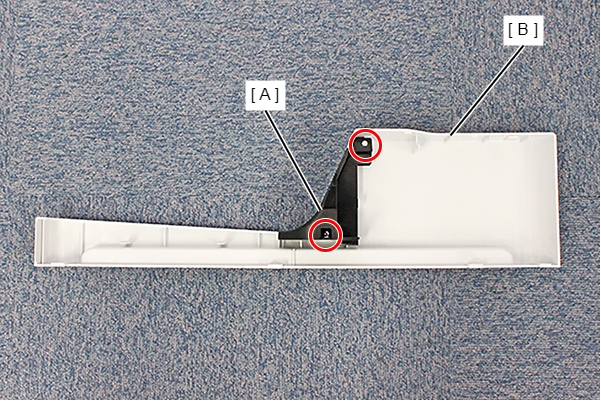

3. Remove the two screws  and remove the Front ADF Cover Support (A) from the Front ADF Cover (B).


   • : C.B.P-TITE-SCREW-3x8-F.ZN-3C
