Checking Number of Print Sides (WebConfig)
- Enter the IP address of the printer in the web browser.
- Check that the WebConfig top screen is displayed.

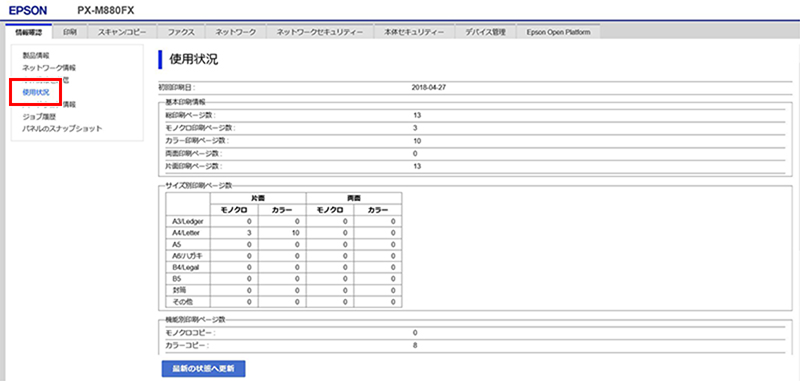

- Click [Usage Status].

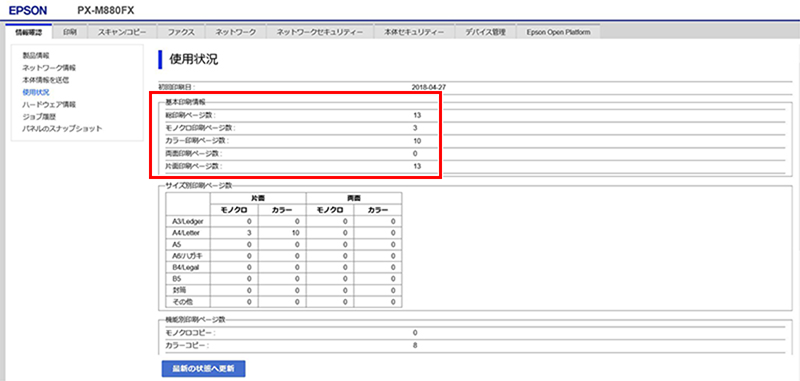

- Check that the number of print pages is displayed.
