Paper Guide UpperLower

  1. Remove the two screws, then remove the Rear ASF Unit (A).

    • : C.SHOULDER S-TITE,3X5
  2. Remove the four screws, and remove the Rear ASF Front Cover Assy (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  3. Remove the four screws, and remove the Rear ASF LD Assy (A).
    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
  4. Remove the four screws, and remove the Rear ASF Hopper Assy (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

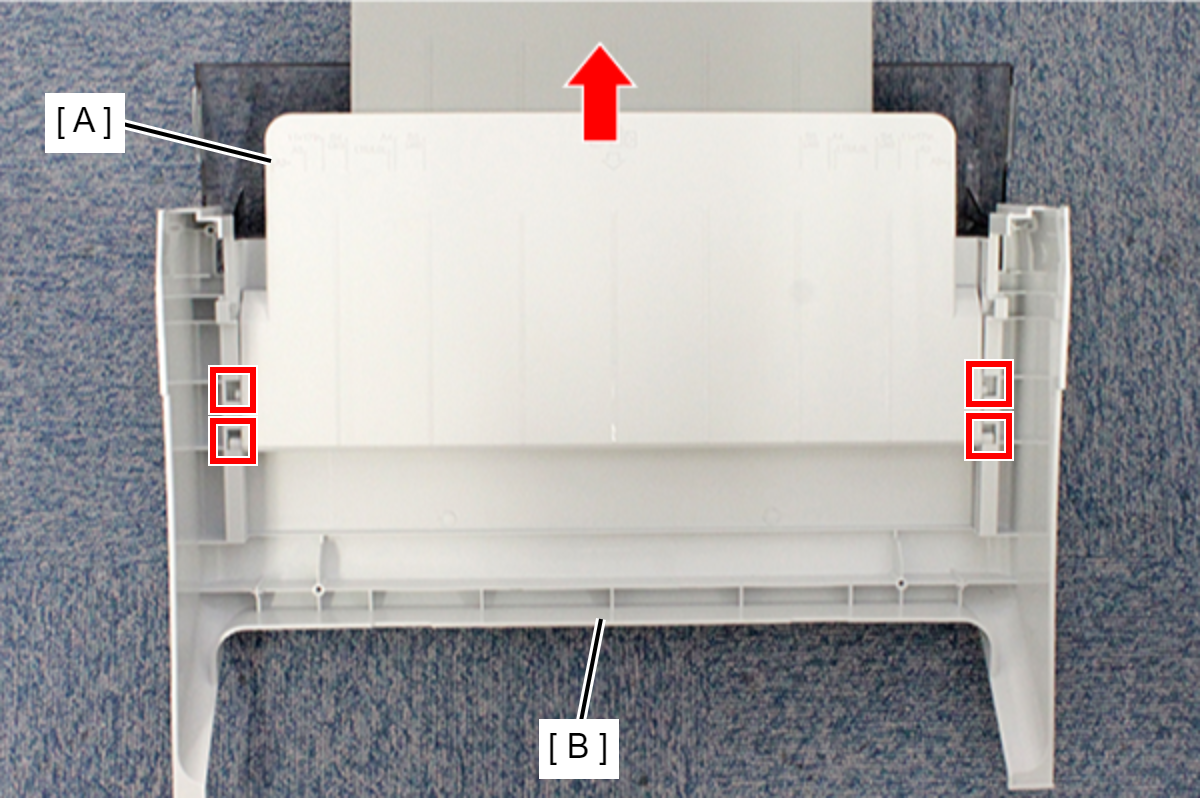

  5. Lift the Paper Guide Upper Lower (A) in the direction of the arrow to remove the four Dowels in line with the four notches in the Rear ASF Lower Cover (B), and remove the Paper Guide Upper Lower.
