# How to set a Static IP Address

1. Switching the network address setting method

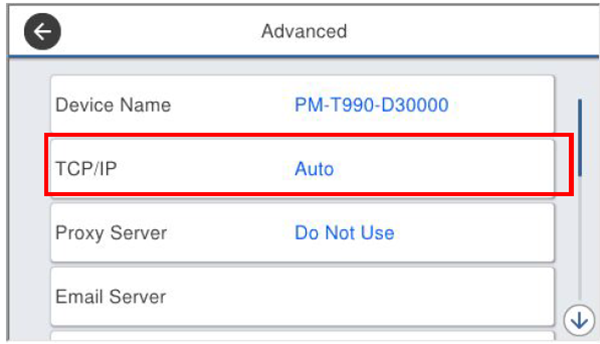

   1. If TCP/IP is set to [Auto], tap [Auto].

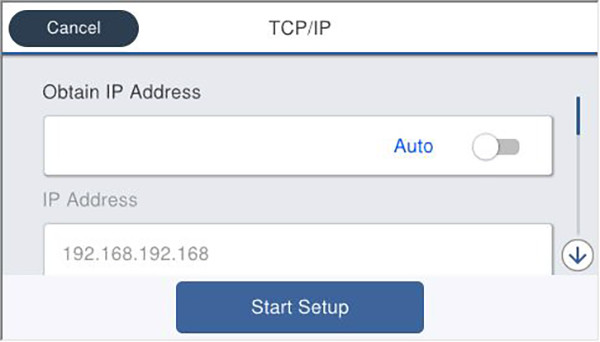

   2. Tap [Auto] of [Obtain IP address].

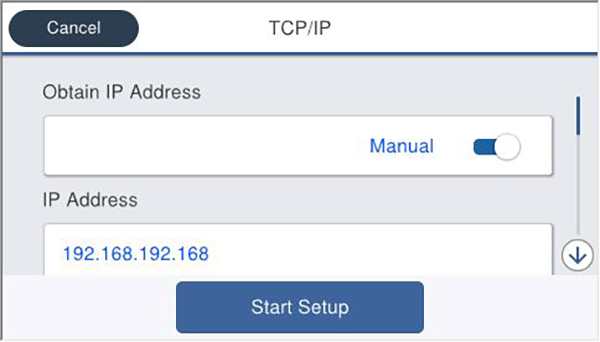

   3. Check that [Obtain IP address] is [Manual].

2. How to set a IP address

   1. Tap [IP address]. (Initial value is 192.168.192.168)

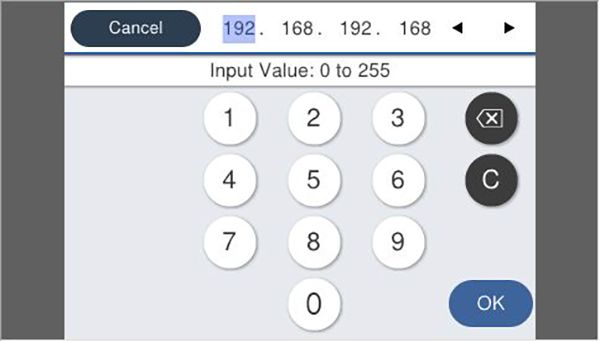

   2. The software keyboard appears. Enter the IP address based on the hearing sheet.

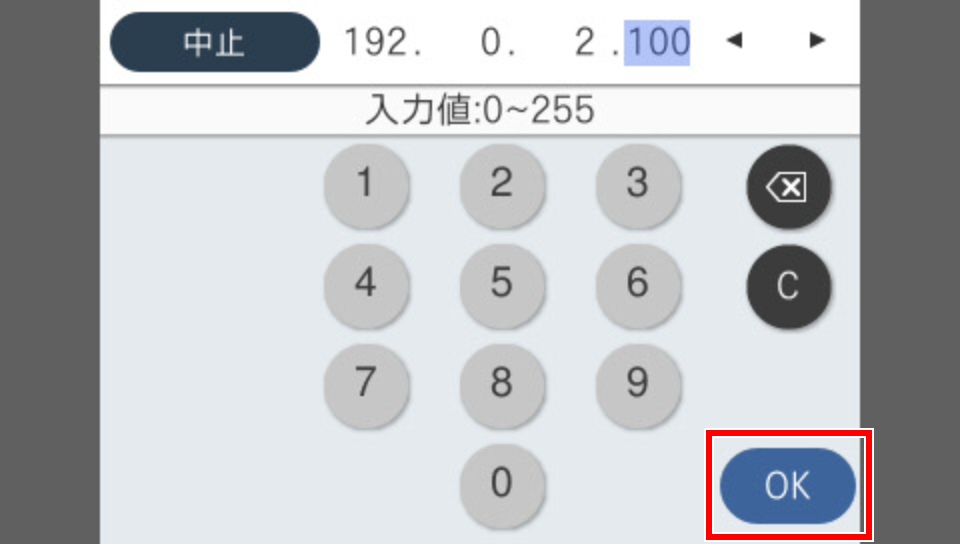

   3. When input is complete, tap [OK].

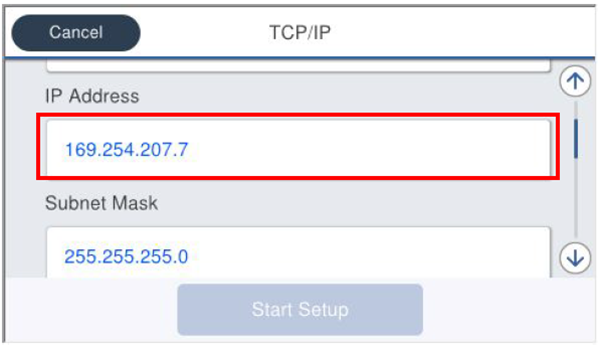

   4. Check that the entered IP address is displayed.

3. Setting the subnet mask

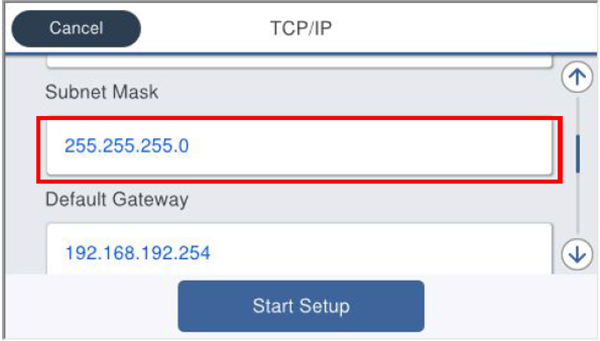

   1. Tap [subnet mask]. (Initial value is 255.255.255.0)

   2. The software keyboard appears. Enter the IP address of a primary DNS server based on the hearing sheet.

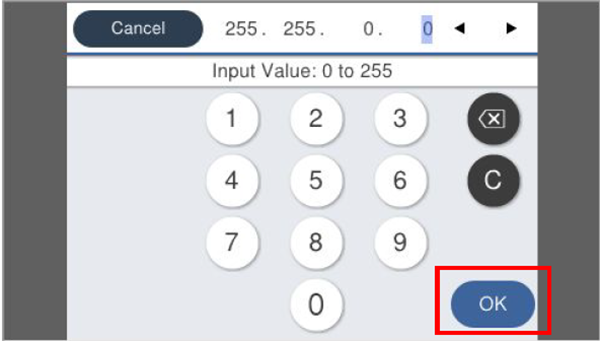

   3. When input is complete, tap [OK].

   4. Check that the entered IP address is displayed.



4. Setting the default gateway

   1. Tap [Default Gateway]. (Initial value is 192.168.192.254)

   2. The software keyboard appears. Enter the default gateway based on the hearing sheet.

   3. When input is complete, tap [OK].

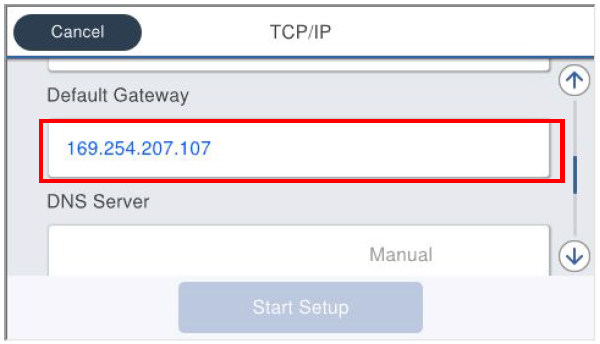

   4. Check that the entered default gateway is displayed.

   5. Set the services cooperated. (Setting a DNS server is required.)
   • • When setting a DNS server, refer to Setting the DNS server.
     • When setting a proxy server, refer to Setting a proxy server.
5. Saving the settings

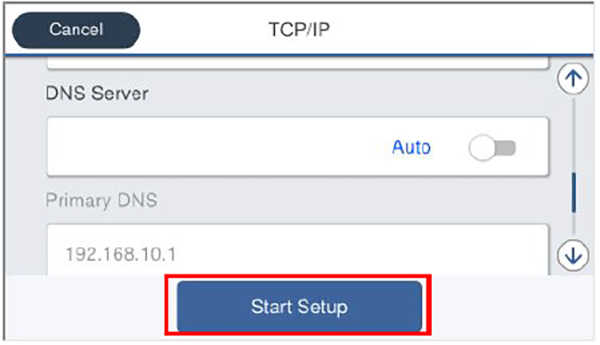

   1. Tap [Start Setup].

   2. Wait until the settings are reflected.

   3. Check that the Setup Complete screen is displayed.
