# SMAP Phase Sensor

1. Remove the three screws, then remove the Left Housing Assy (A) toward the rear of the product.


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C

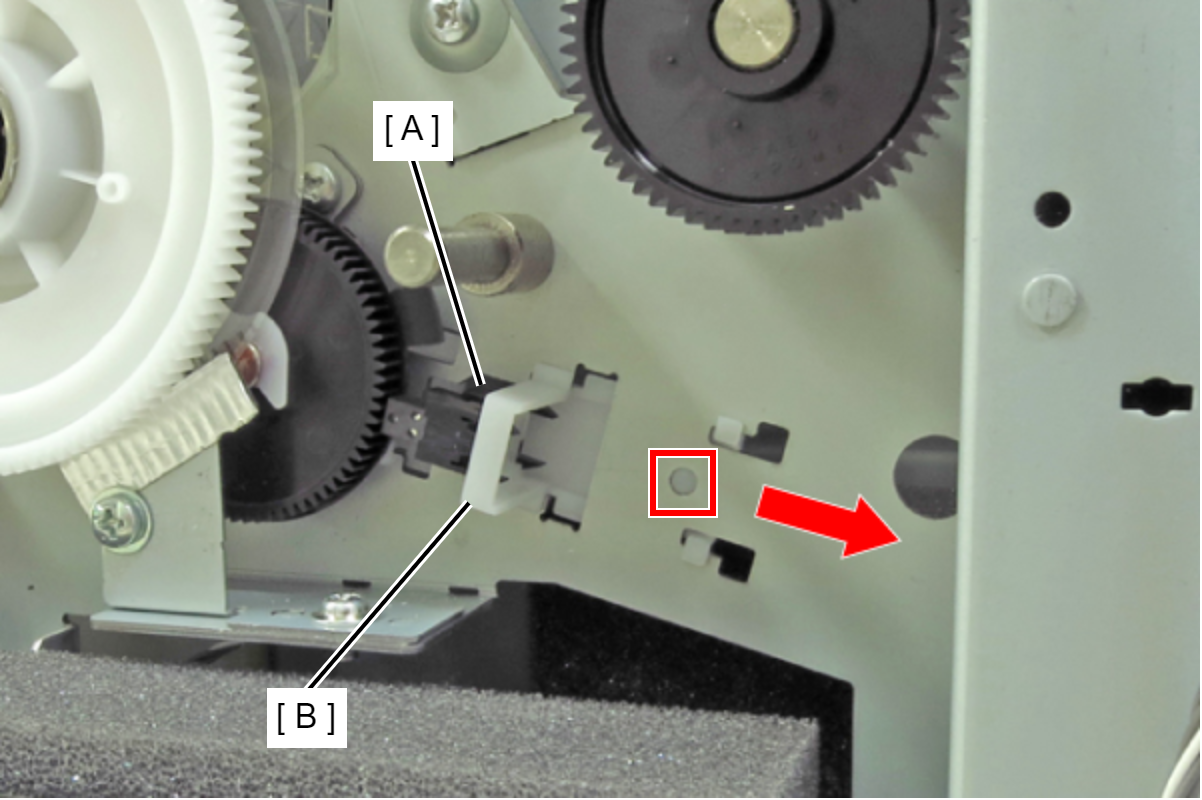

2. While pressing the dowel of the SMAP Drive Sensor Assy (A), remove the sensor holder (B) in the direction of the arrow.

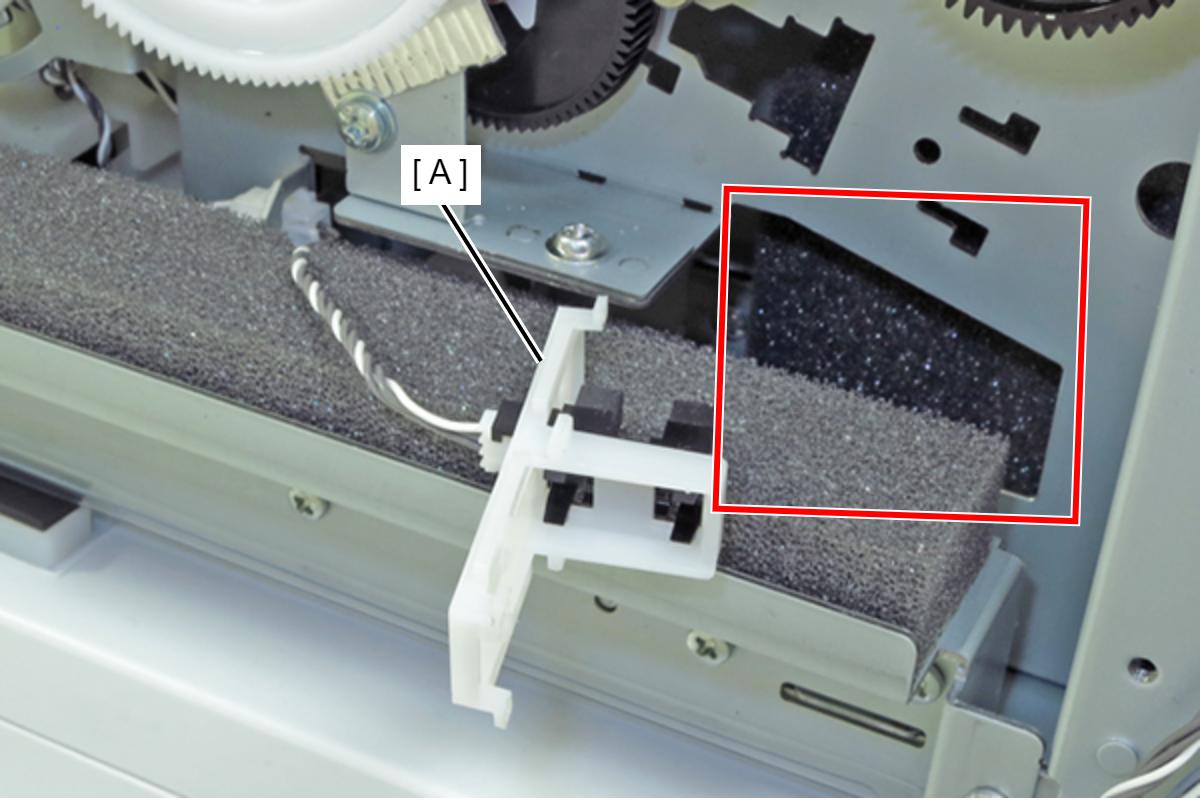

3. Pull out the SMAP Drive Sensor Assy (A) through the cutout of the frame.

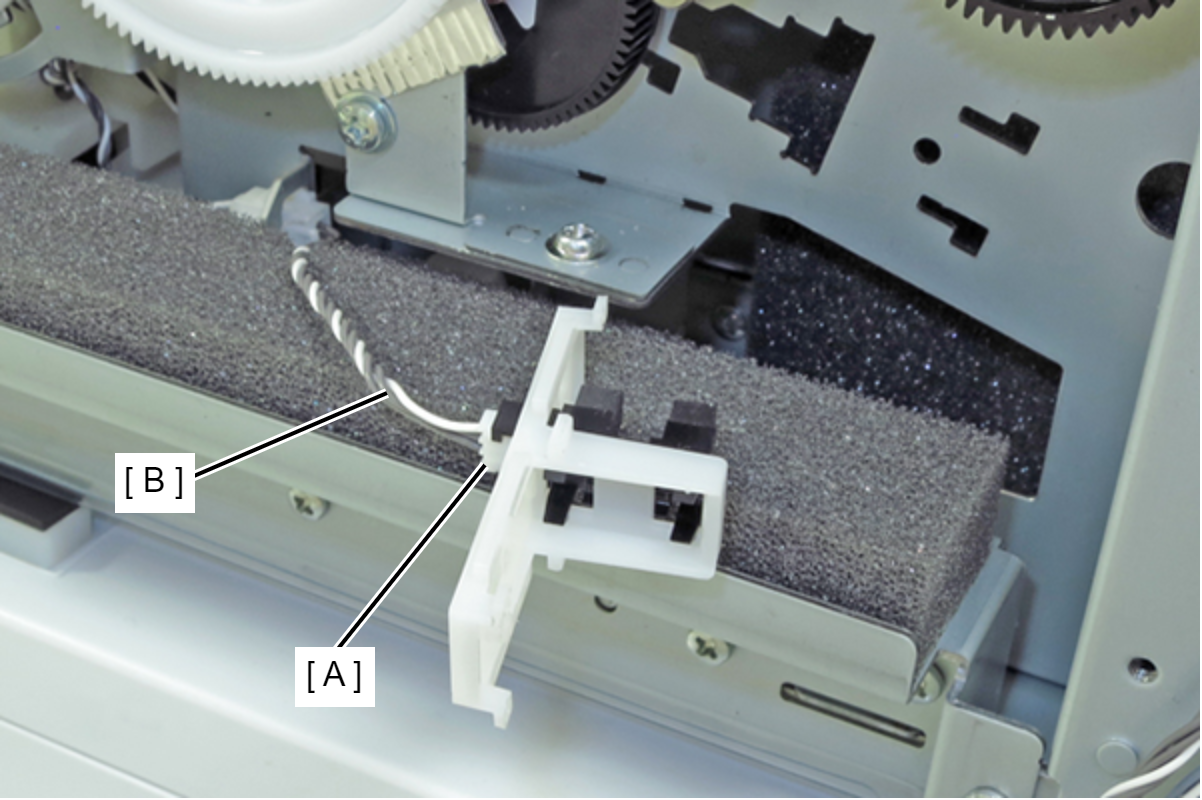

4. Disconnect the cable (B) from the connector (A) of the sensor.

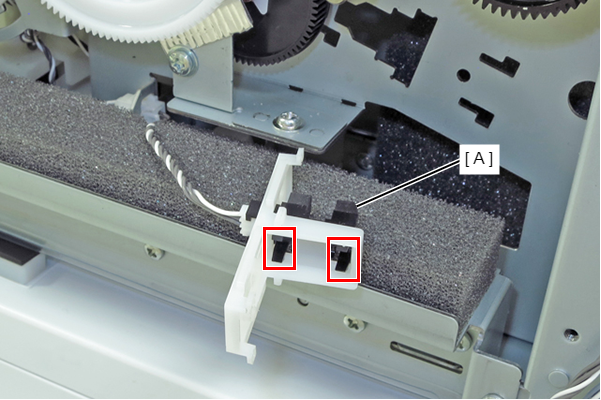

5. Disengage the four hooks, then remove the SMAP Drive Sensor (A).
