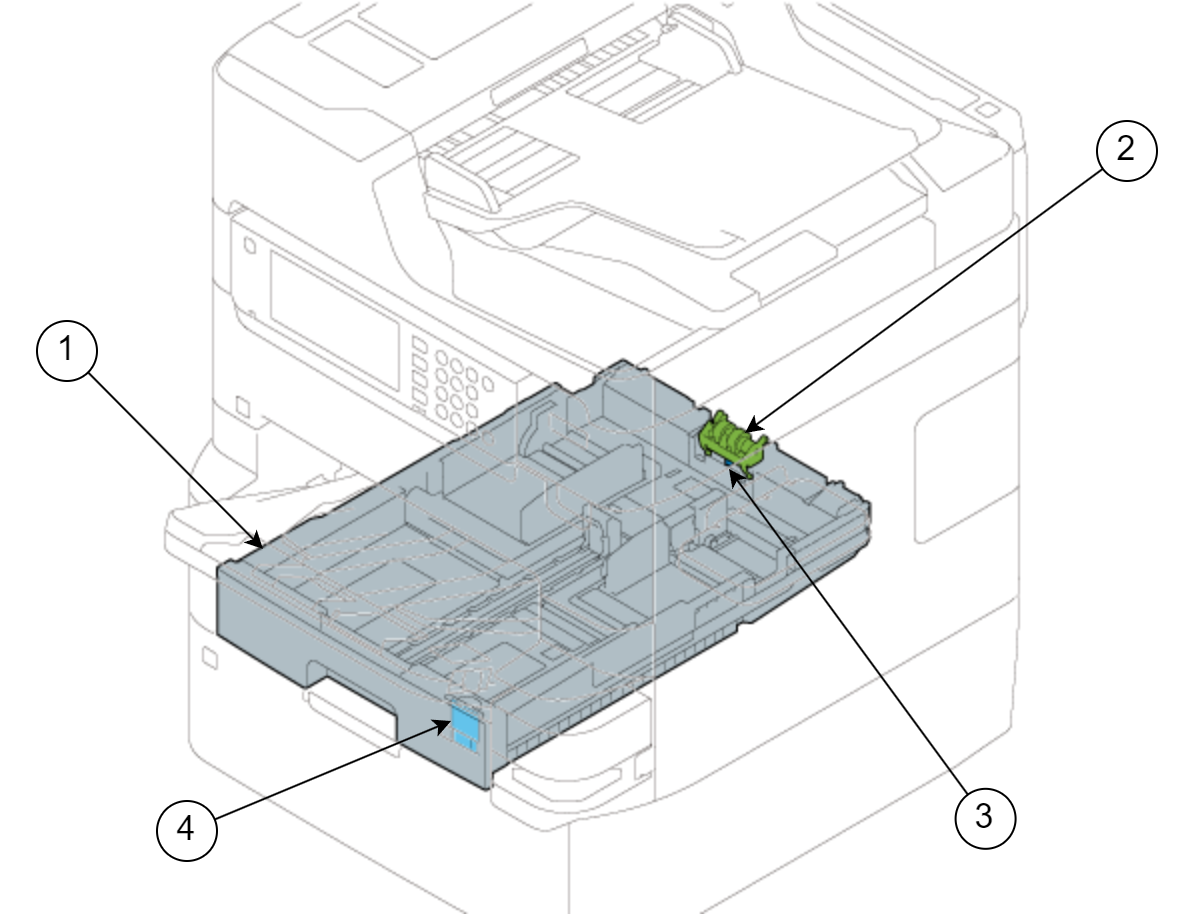

Paper Cassette
| No. | Name |
|---|---|
| 1 | Cassette Assy |
| 2 | Retard Roller |
| 3 | Compression Spring |
| 4 | Paper Label |
