Paper Label
- Remove the Cassette Assy (A).

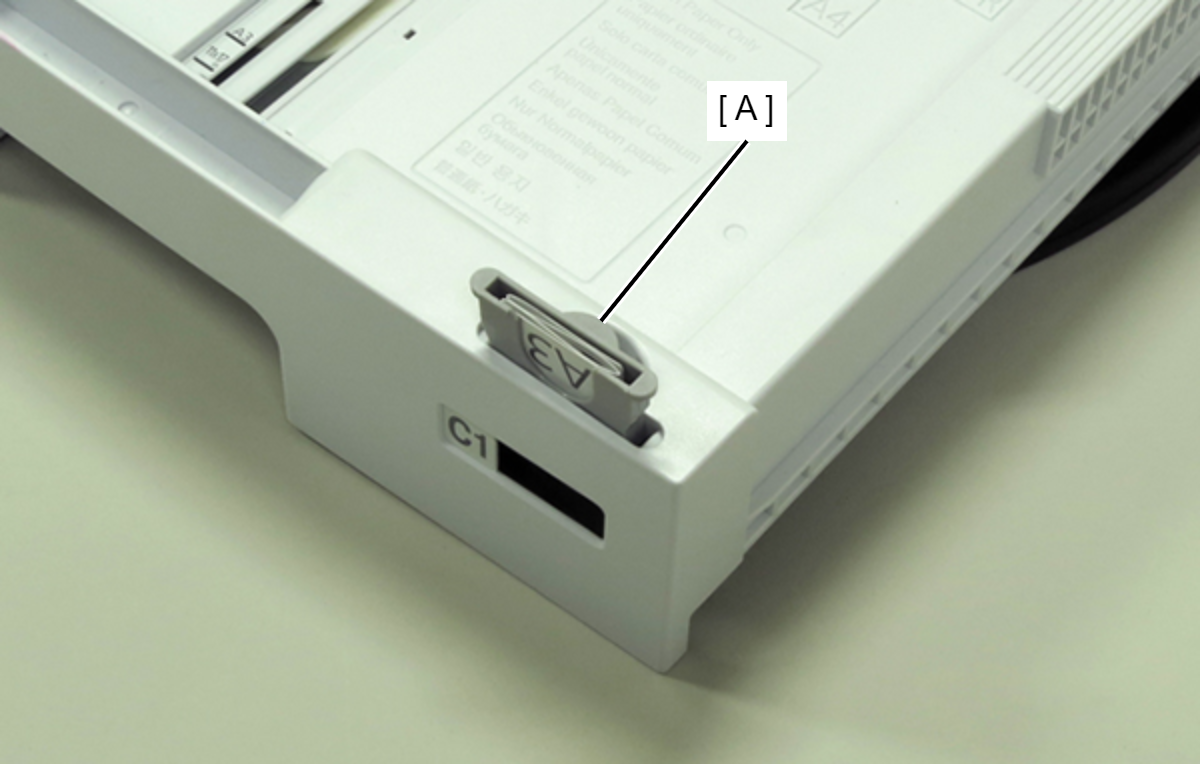

- Pull the Paper Size Holder (A) upward to remove it.

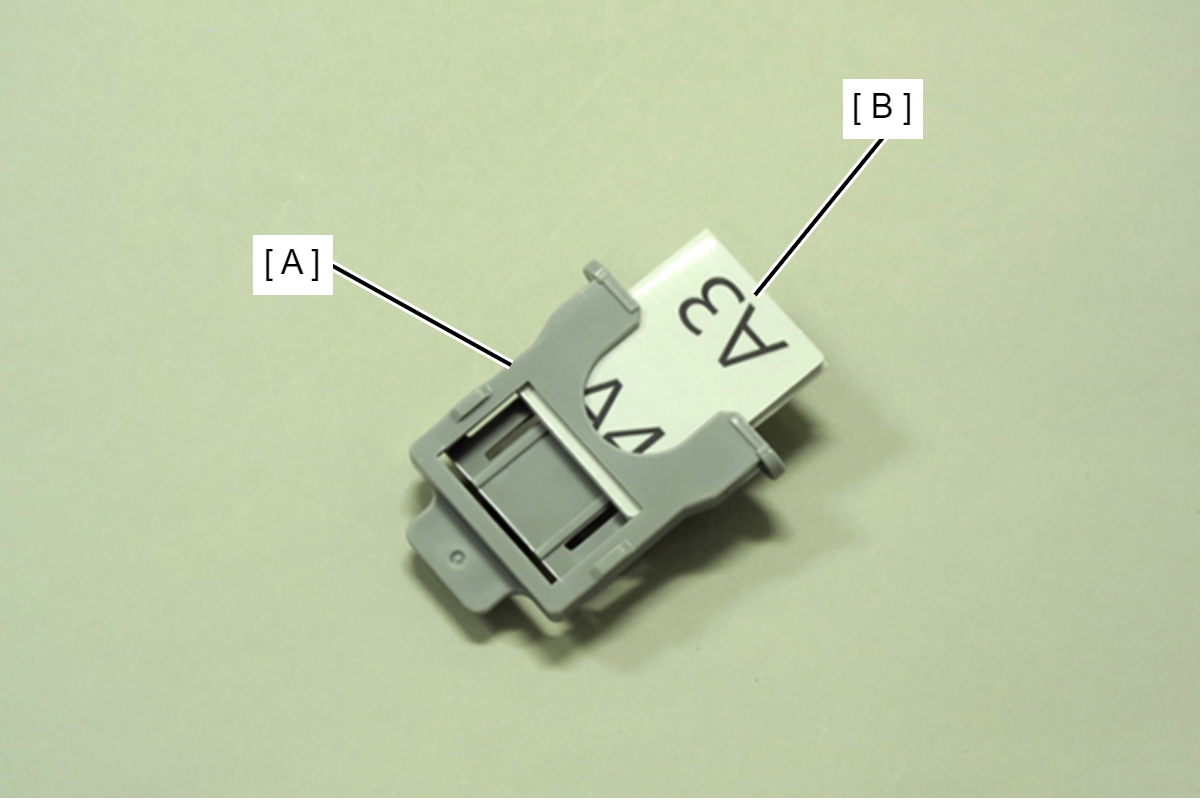

- Pull the Paper Label (B) out of the Paper Size Holder (A).
