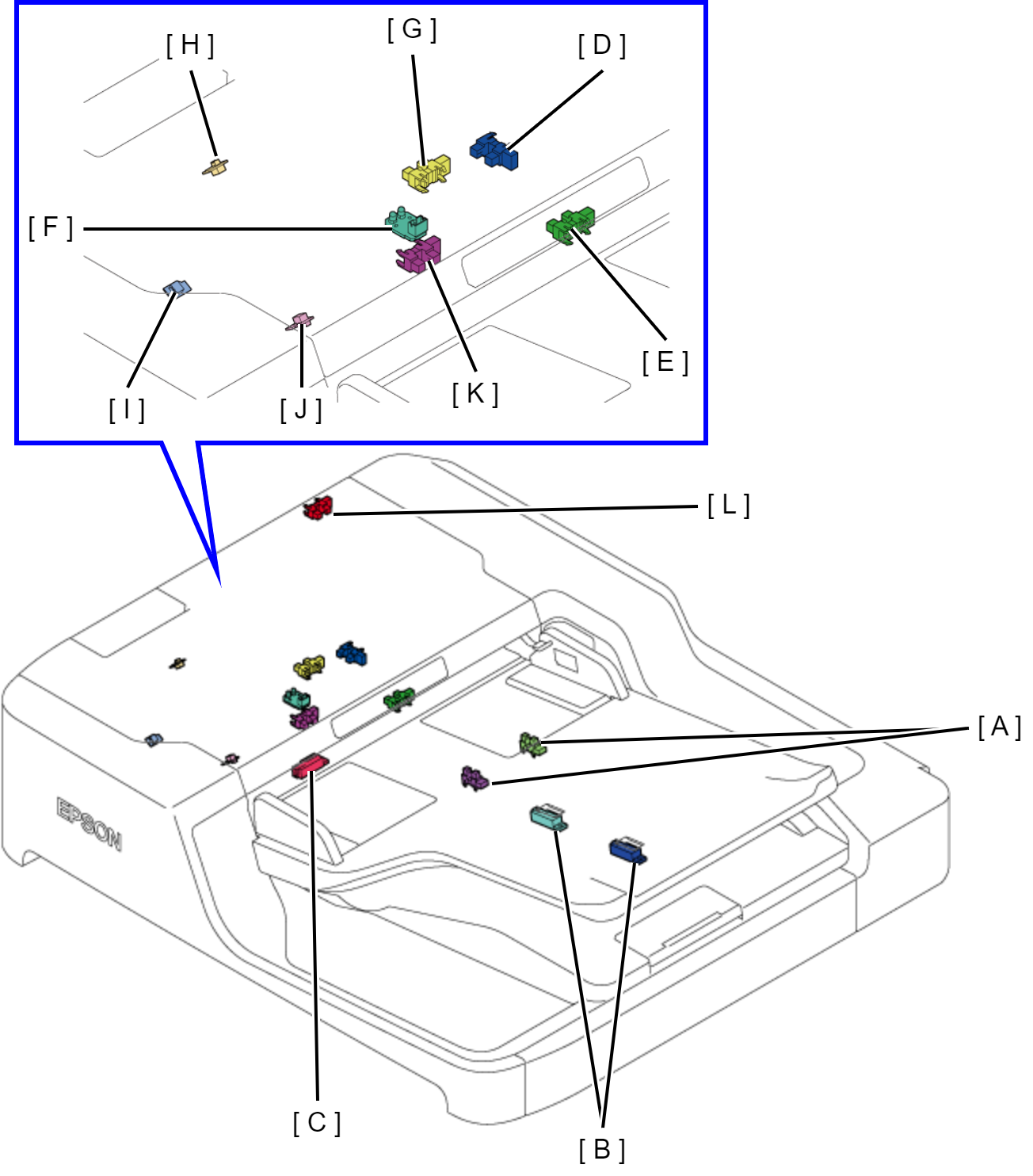

Sensor

Name Function Type
Document Width Detector (x2) (A)

Detects size and orientation of the document.

Transmission type photo interrupter
(3.3VDC±5%)
Document Length Detector (x2) (B)

Reflective type photo interrupter
(3.3VDC±5%)

ADF Document Sensor (C)

Detects whether or not a document is placed on the ADF document support.

Reflective type photo interrupter
(3.3VDC±5%)

Release Sensor (D)

Detects whether or not the Pickup Roller is at its home position (ready for loading documents).

Transmission type photo interrupter
(3.3VDC±5%)

Set Guide Sensor (E)

Detects whether or not the Stopper is at its home position (ready for loading documents).

Transmission type photo interrupter
(3.3VDC±5%)
Document Distance Sensor (F)

At the position where a document passes immediately after it passed through the Separation Roller, the sensor detects whether or not a document exists and when to move the Pickup Roller up.

Analog sensor
(3.3VDC±5%)
Post-Acceleration Roller Document Detector (G)

Detects whether document exists or not immediately after the Acceleration Roller.

Transmission type photo interrupter
(3.3VDC±5%)
Resist Sensor (H)

Detects whether document exists or not immediately after the Resist Roller.

Reflective type photo interrupter
(3.3VDC±5%)
PE 1 Sensor (I)

Detects whether document exists or not immediately before starting scanning of the face side.

Reflective type photo interrupter
(3.3VDC±5%)
PE 2 Sensor (J)

Detects whether document exists or not immediately before starting scanning of the reverse side.

Reflective type photo interrupter
(3.3VDC±5%)
Paper Eject Sensor (K)

Detects whether document exists or not near the Document Ejection Roller.

Transmission type photo interrupter
(3.3VDC±5%)
ADF Cover Open Sensor (L)

Detects whether or not ADF Paper Feeder Unit is opened.

Transmission type photo interrupter
(3.3VDC±5%)
