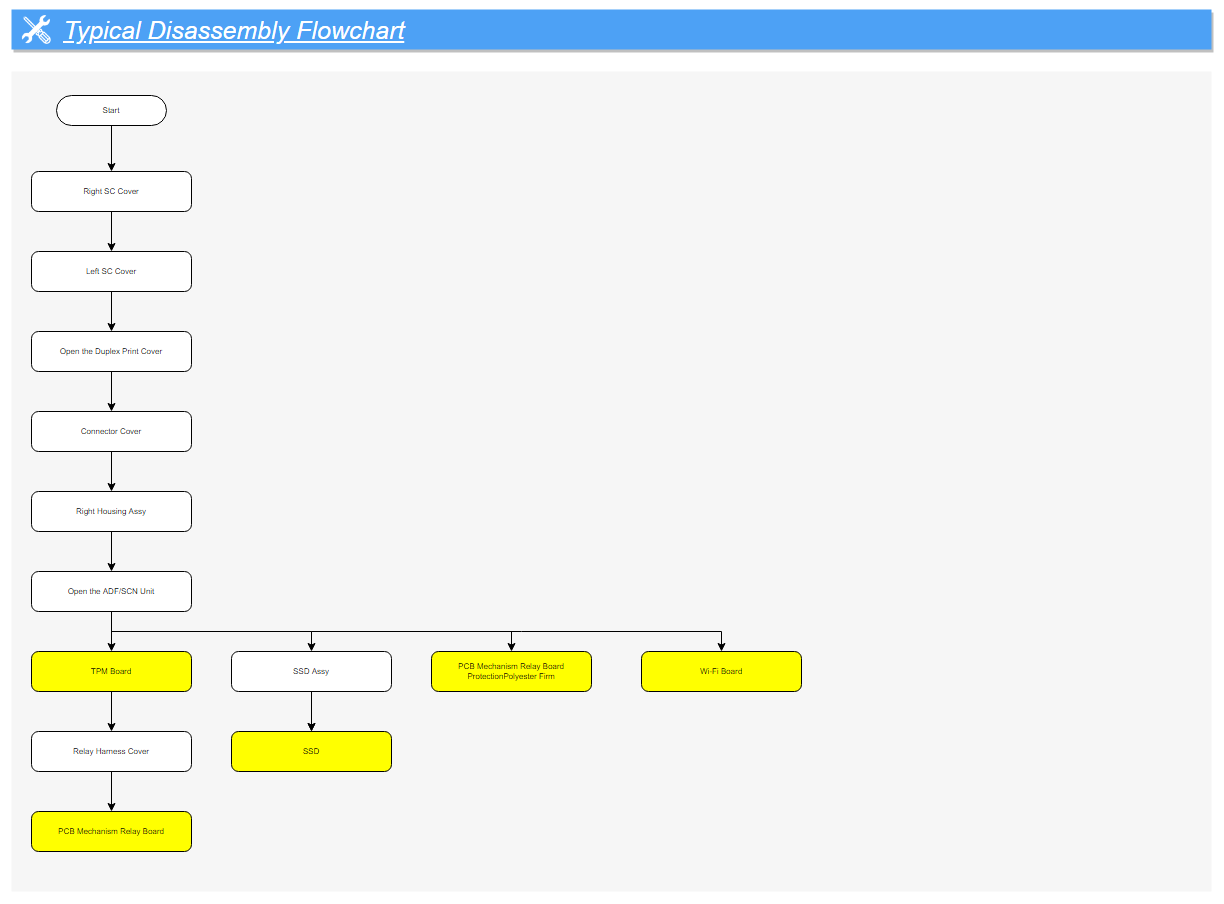

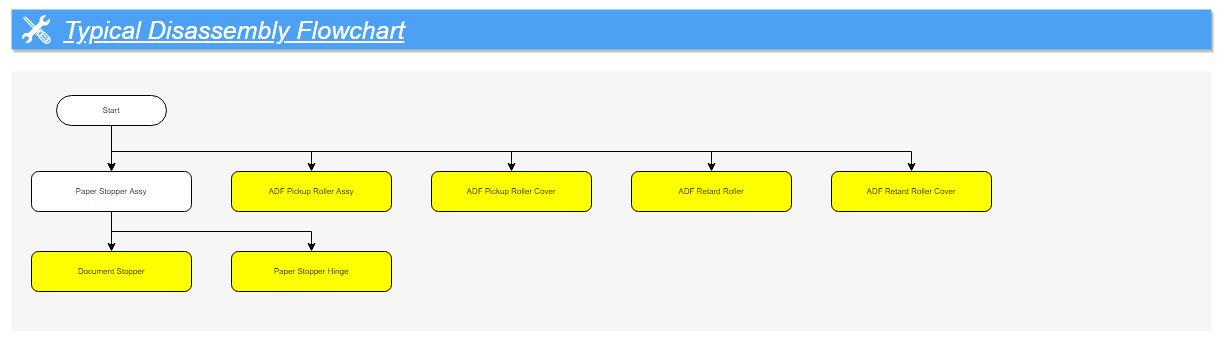

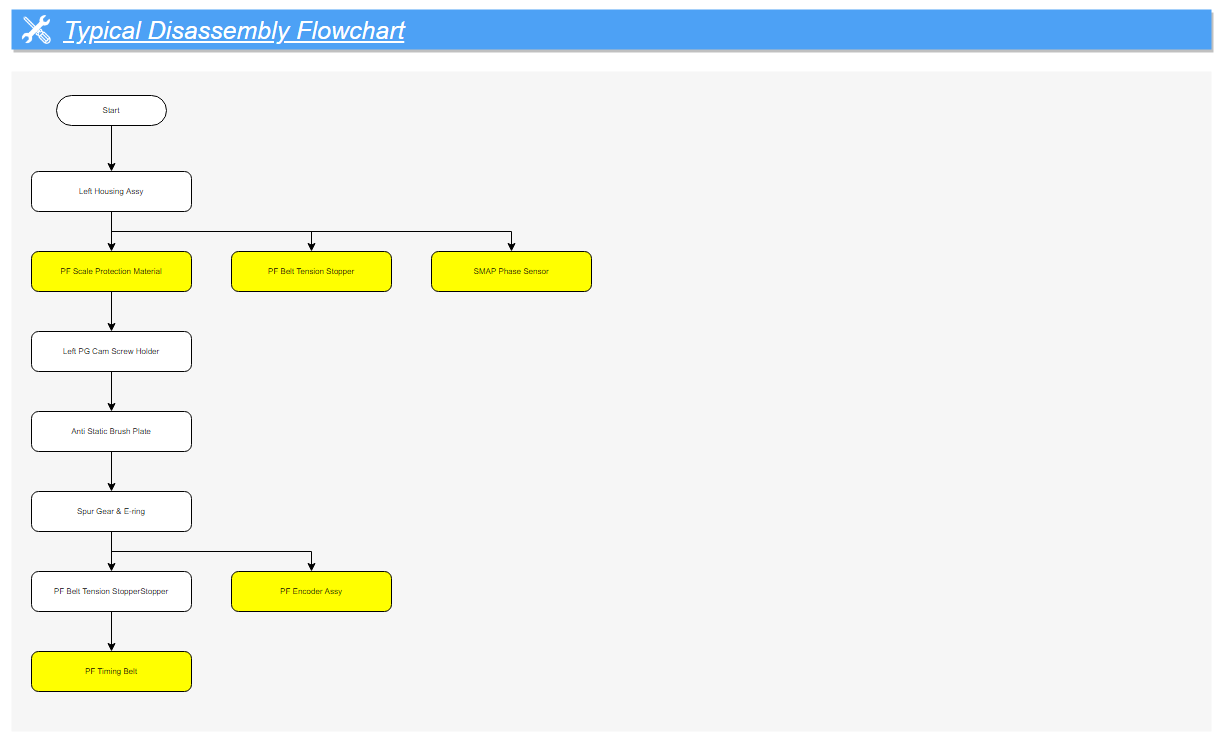

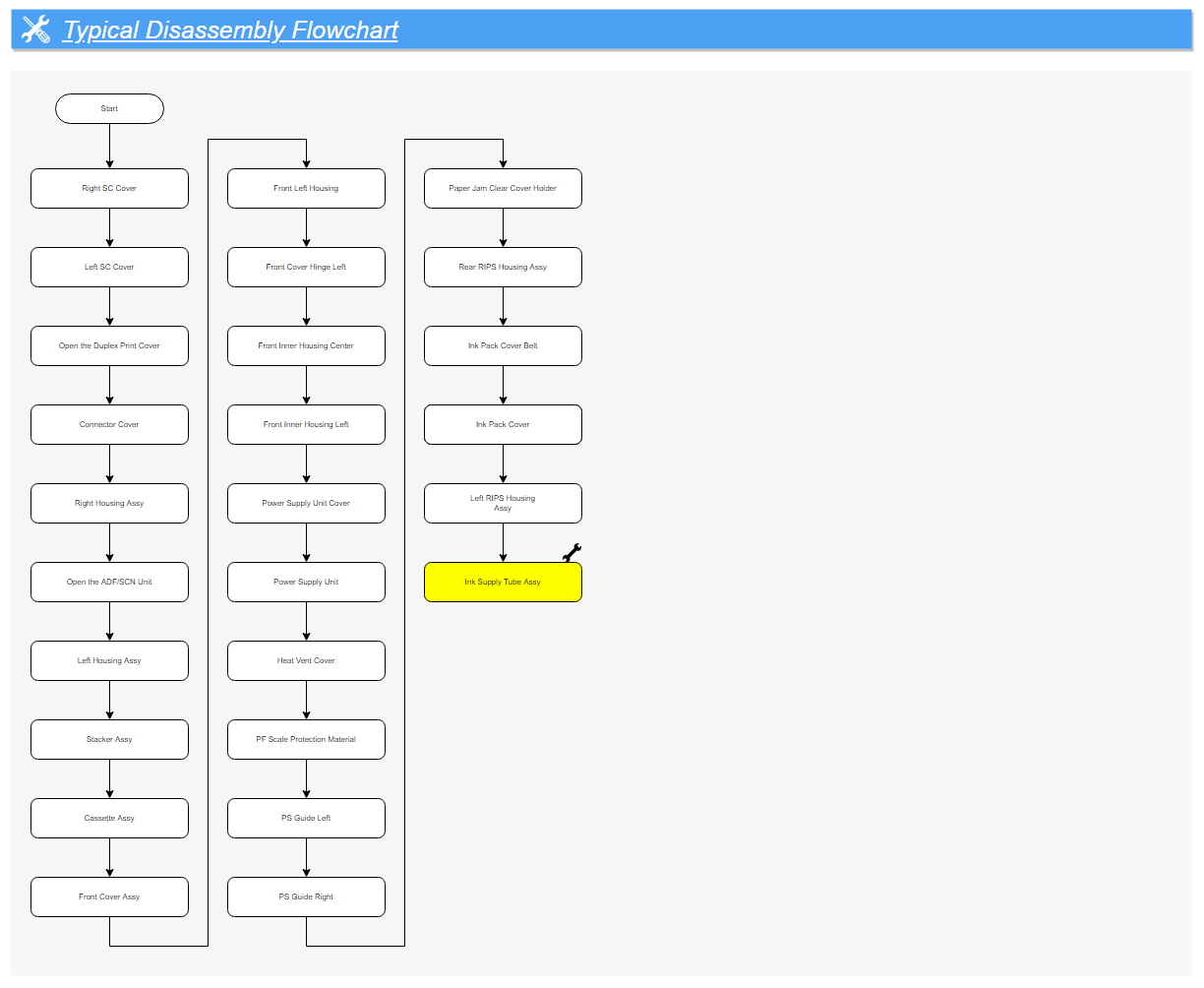

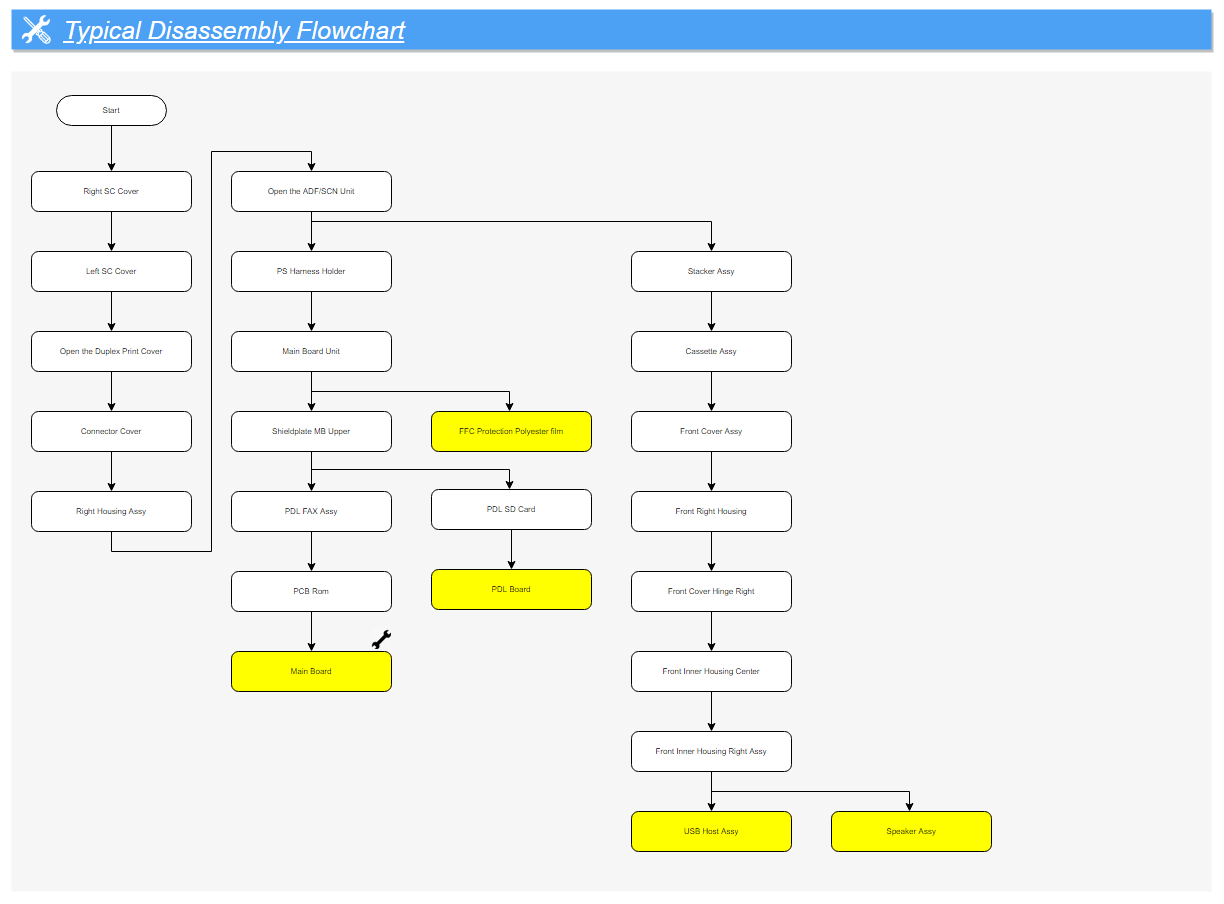

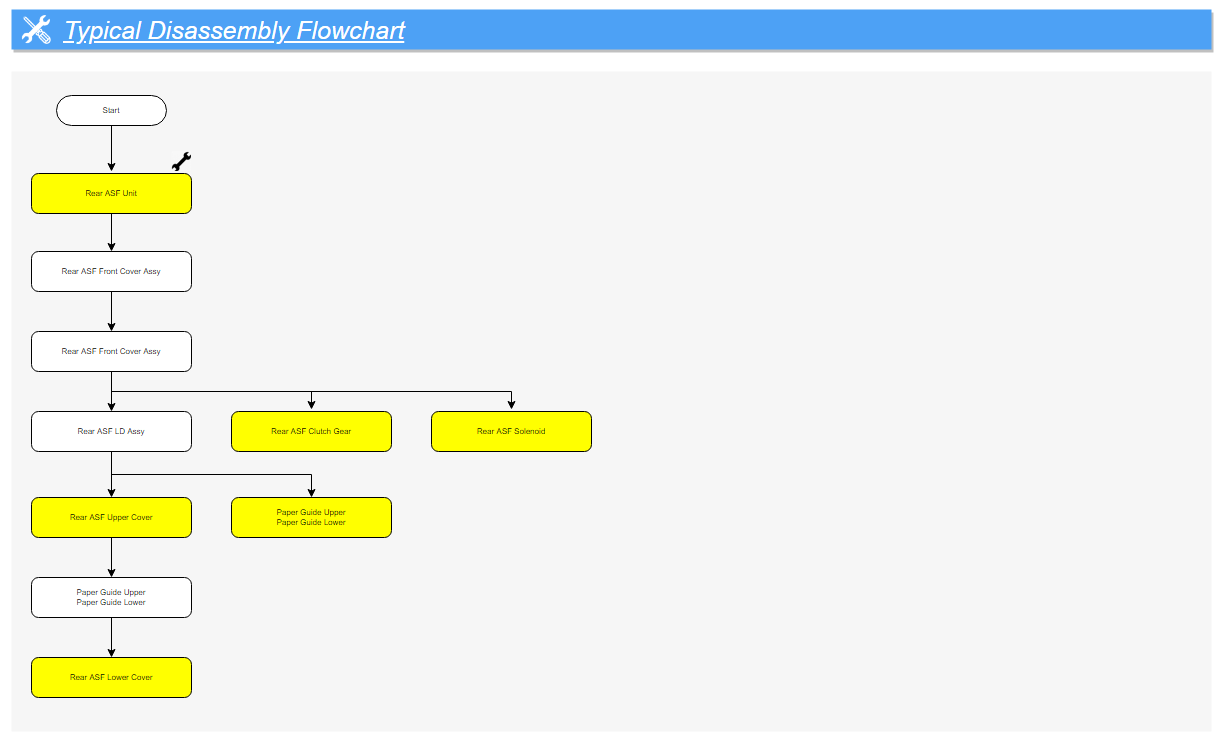

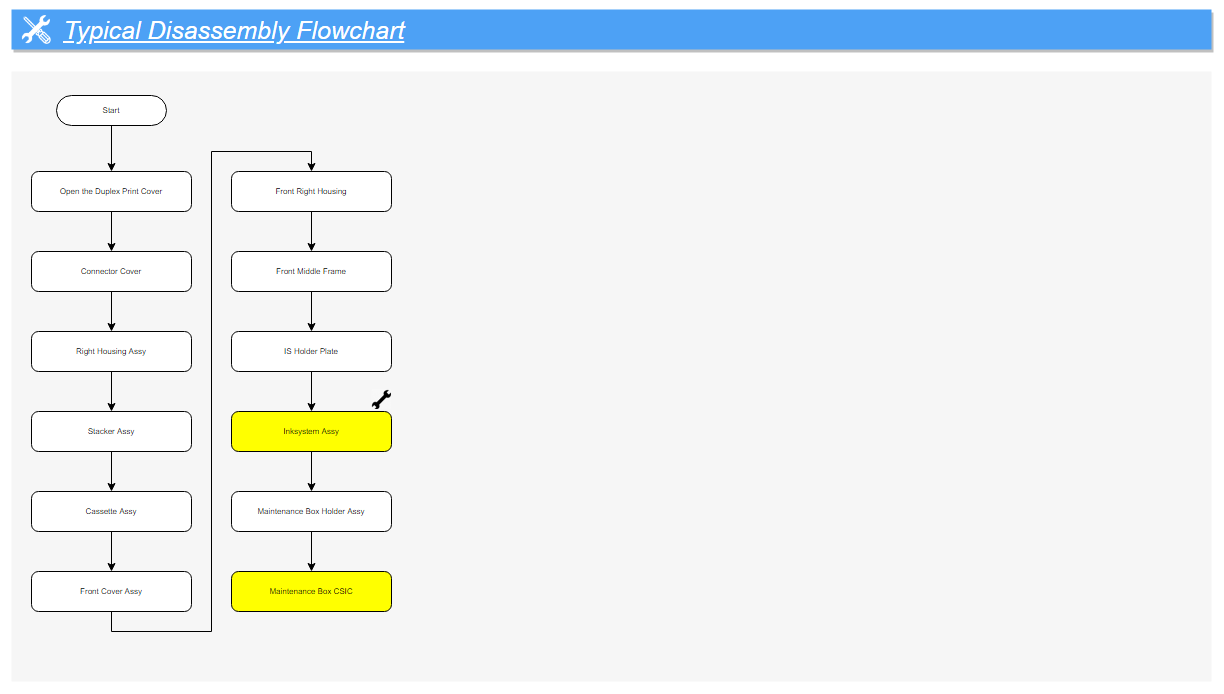

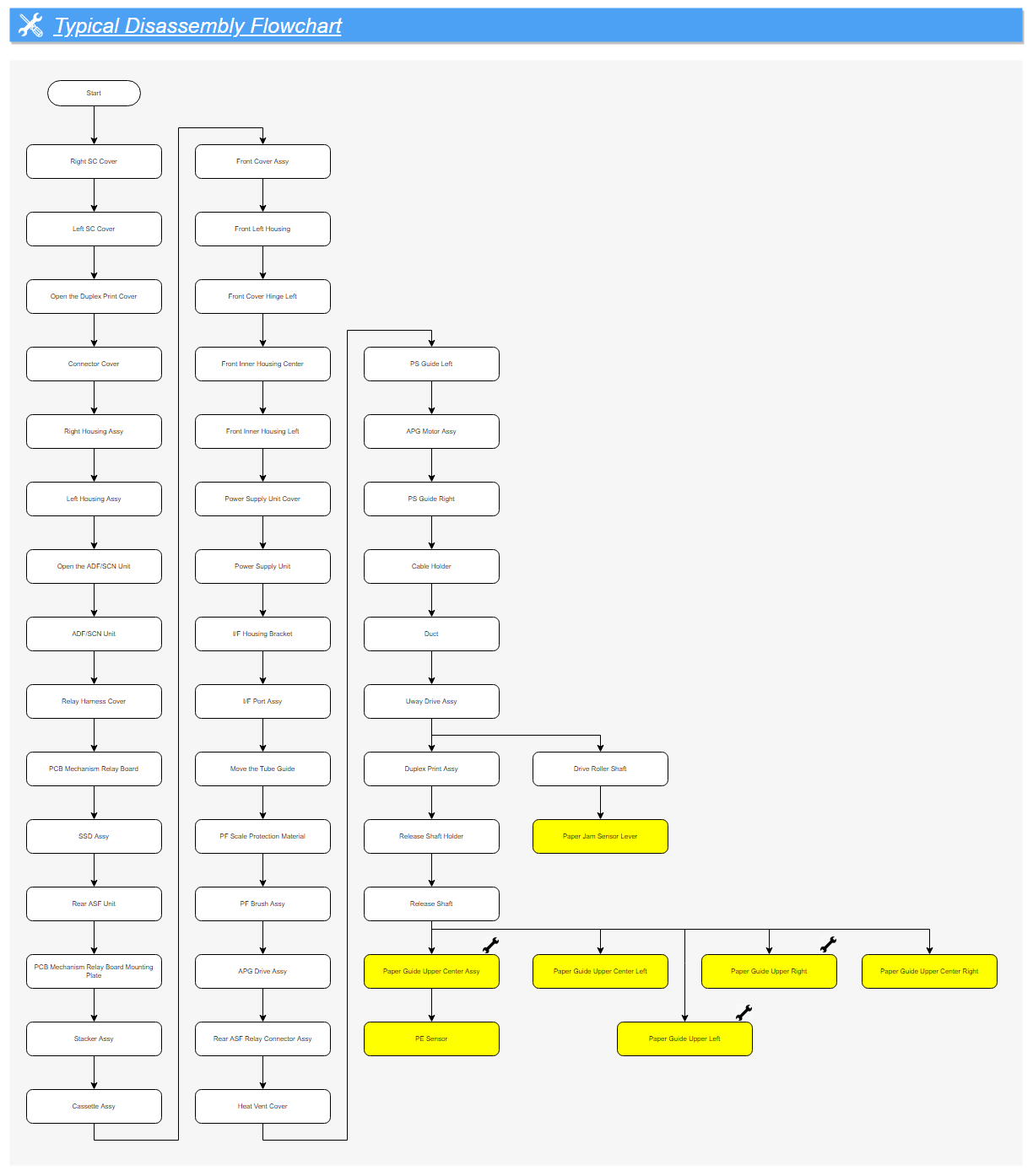

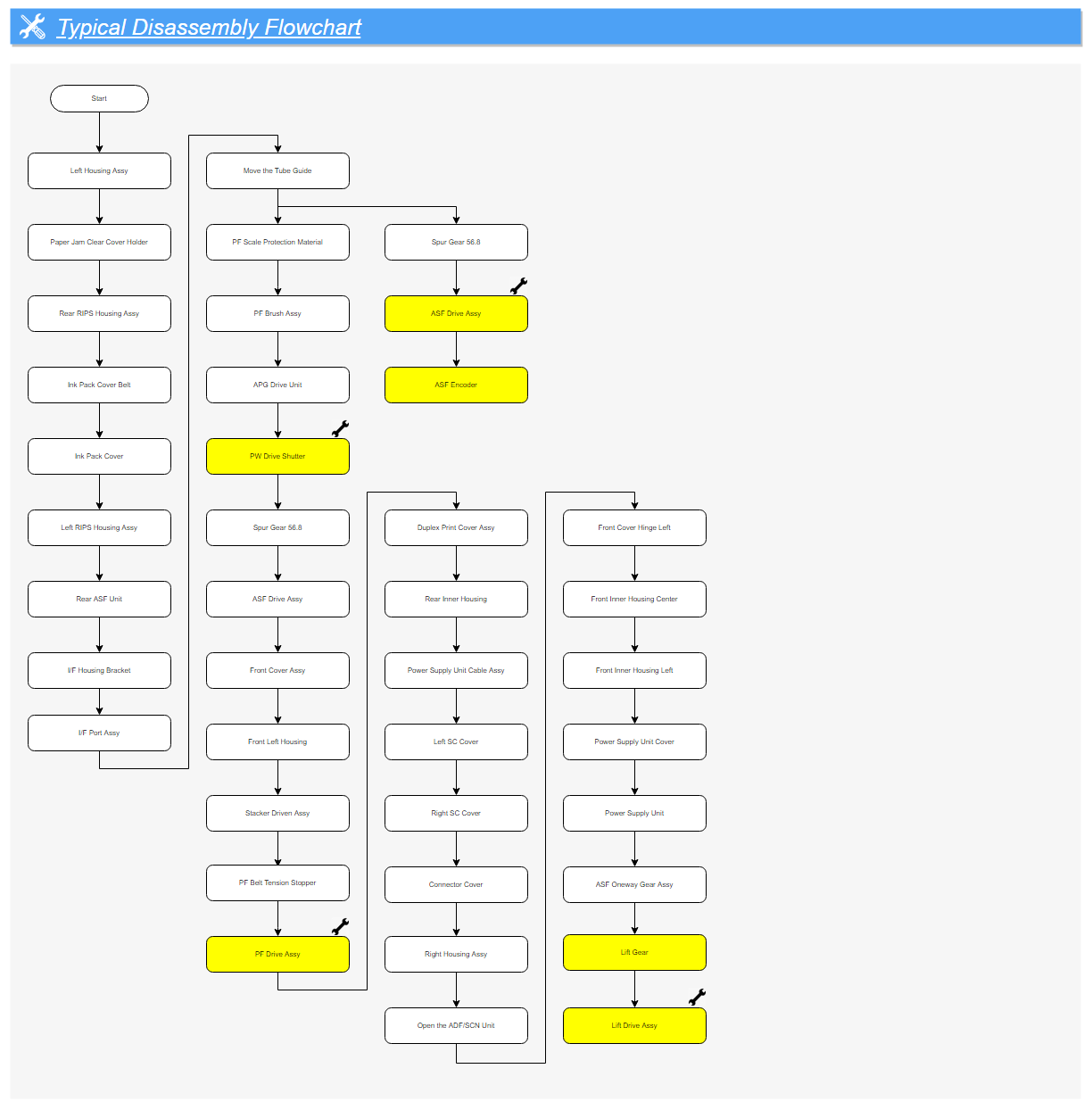

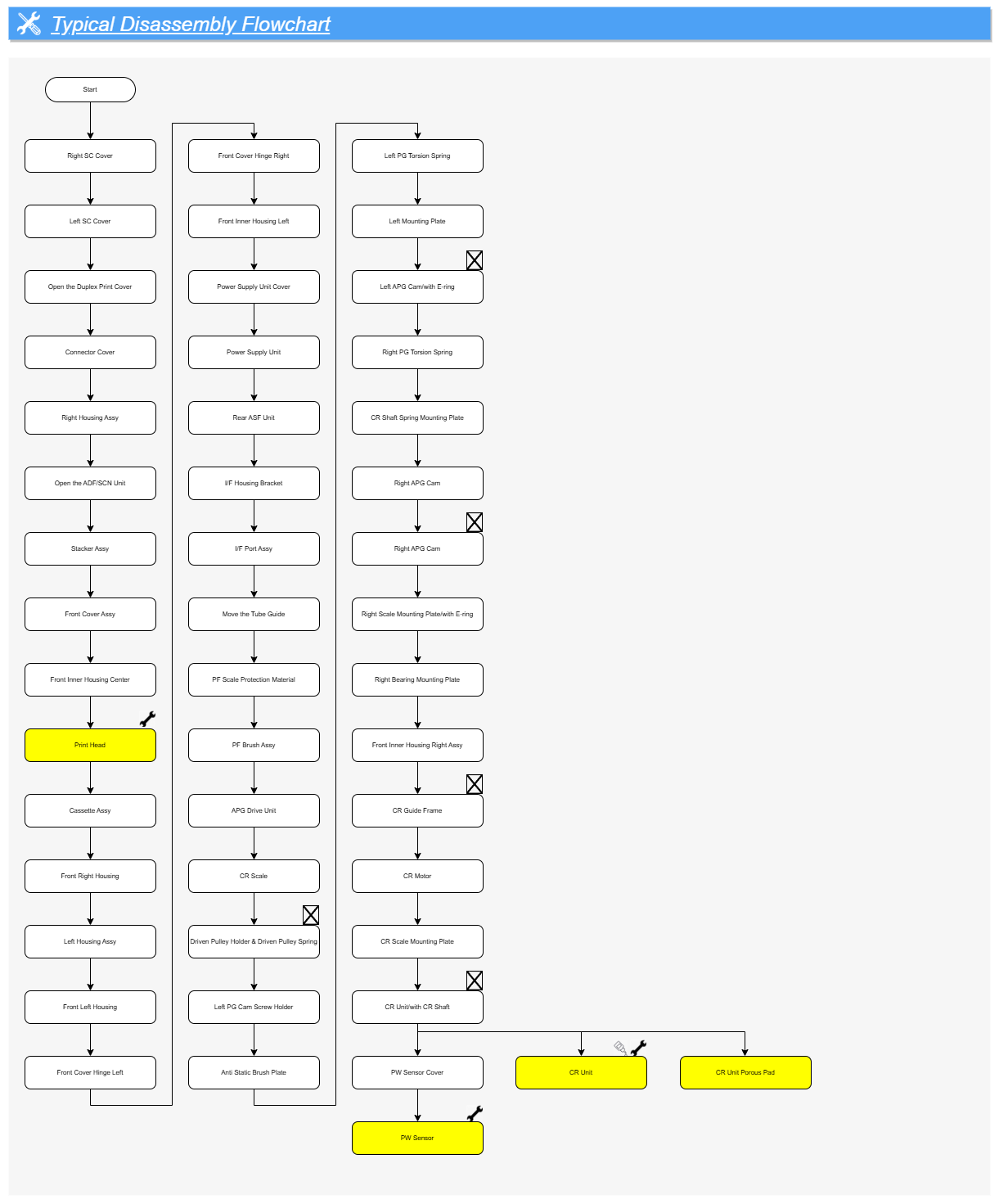

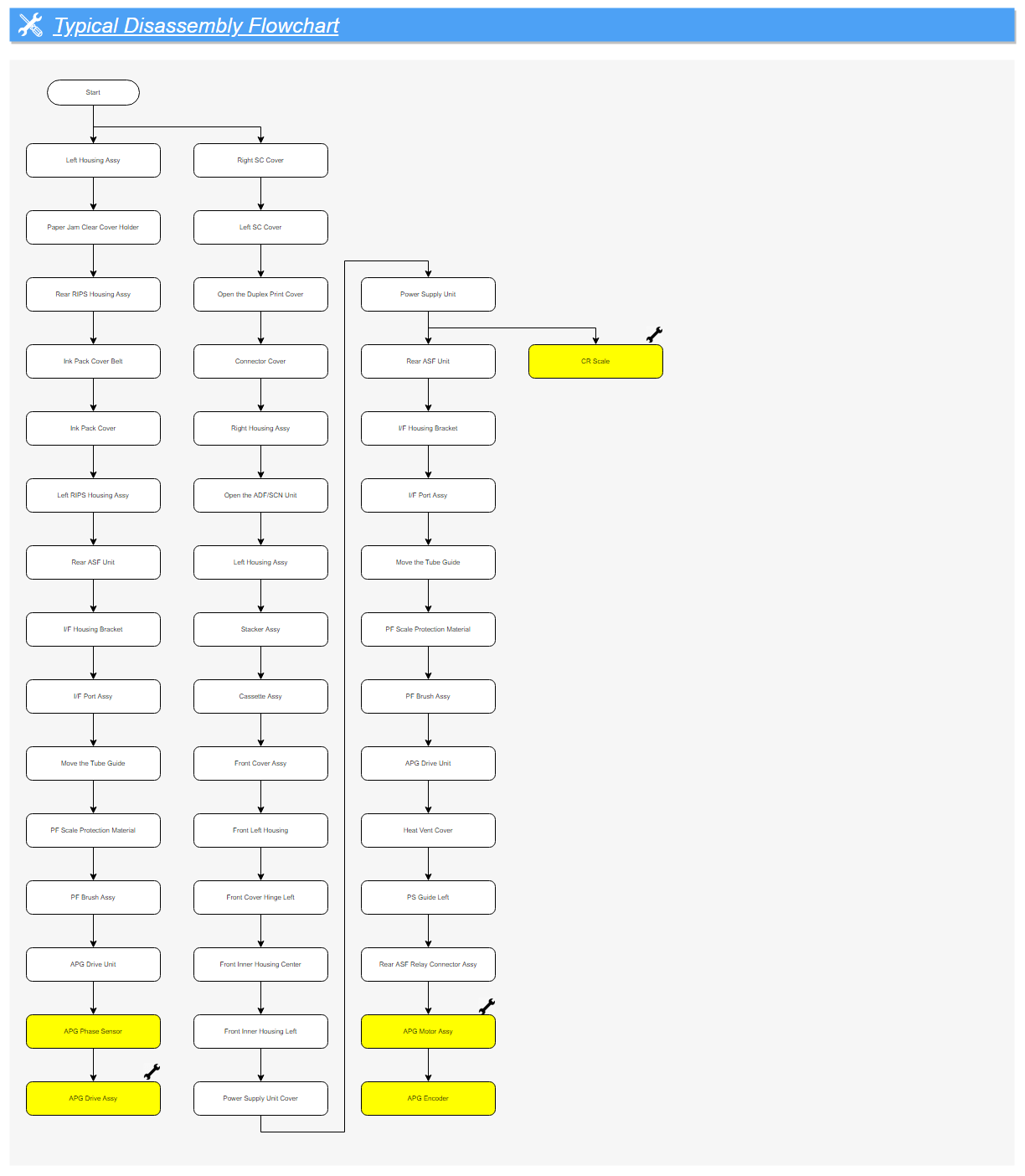

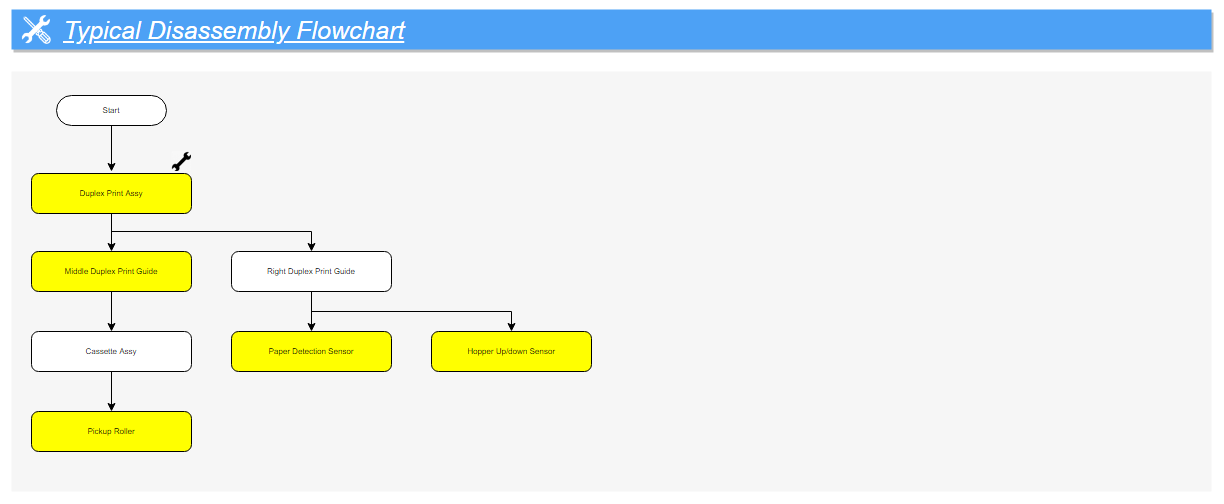

Disassembly Flowchart
 Check Point / チェックポイント |
|
: Parts requiring pre-replacement work (adjustment) before starting the disassembly step.
: Parts requiring lubrication at parts replacement.Housing (1/3)

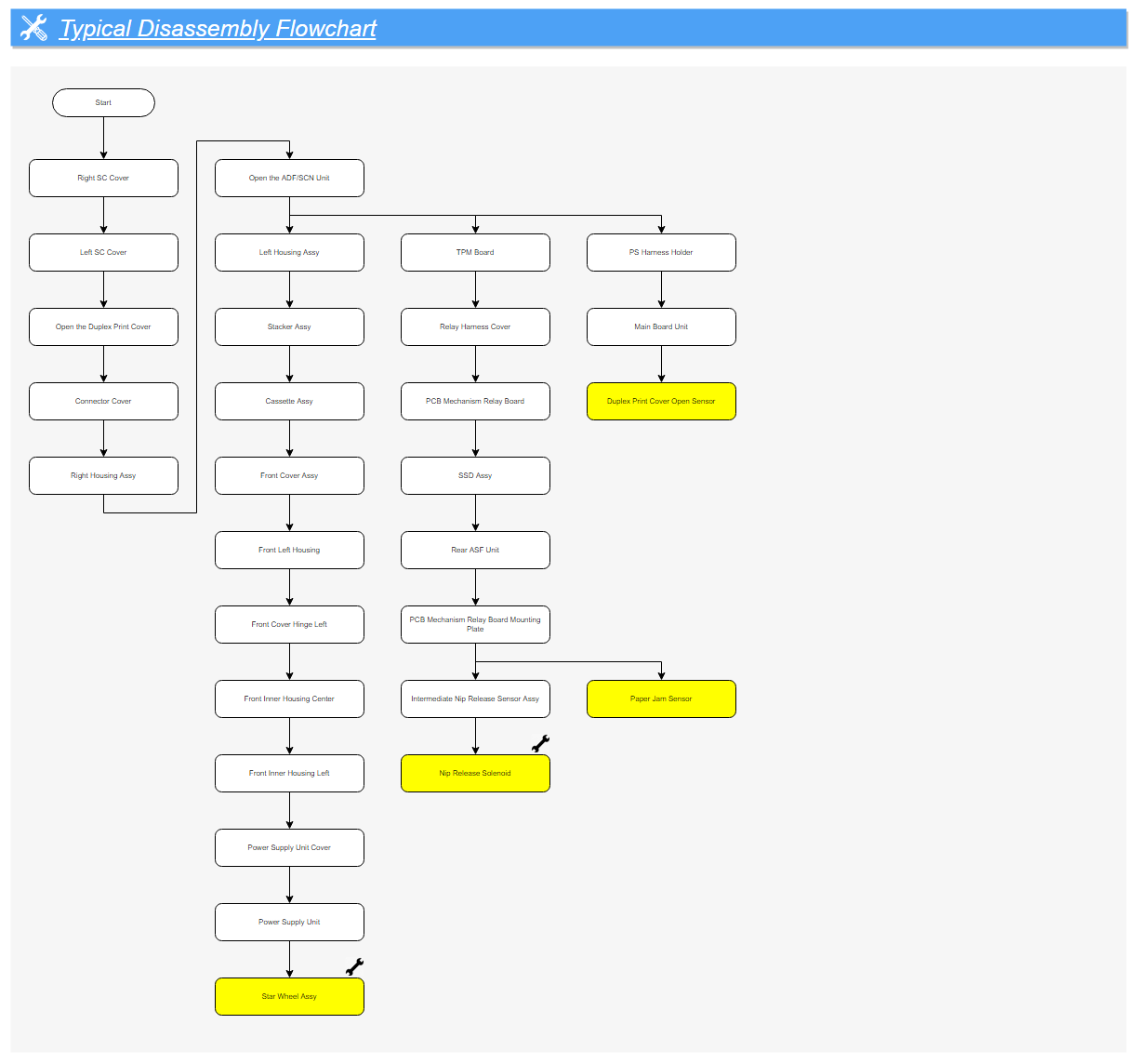

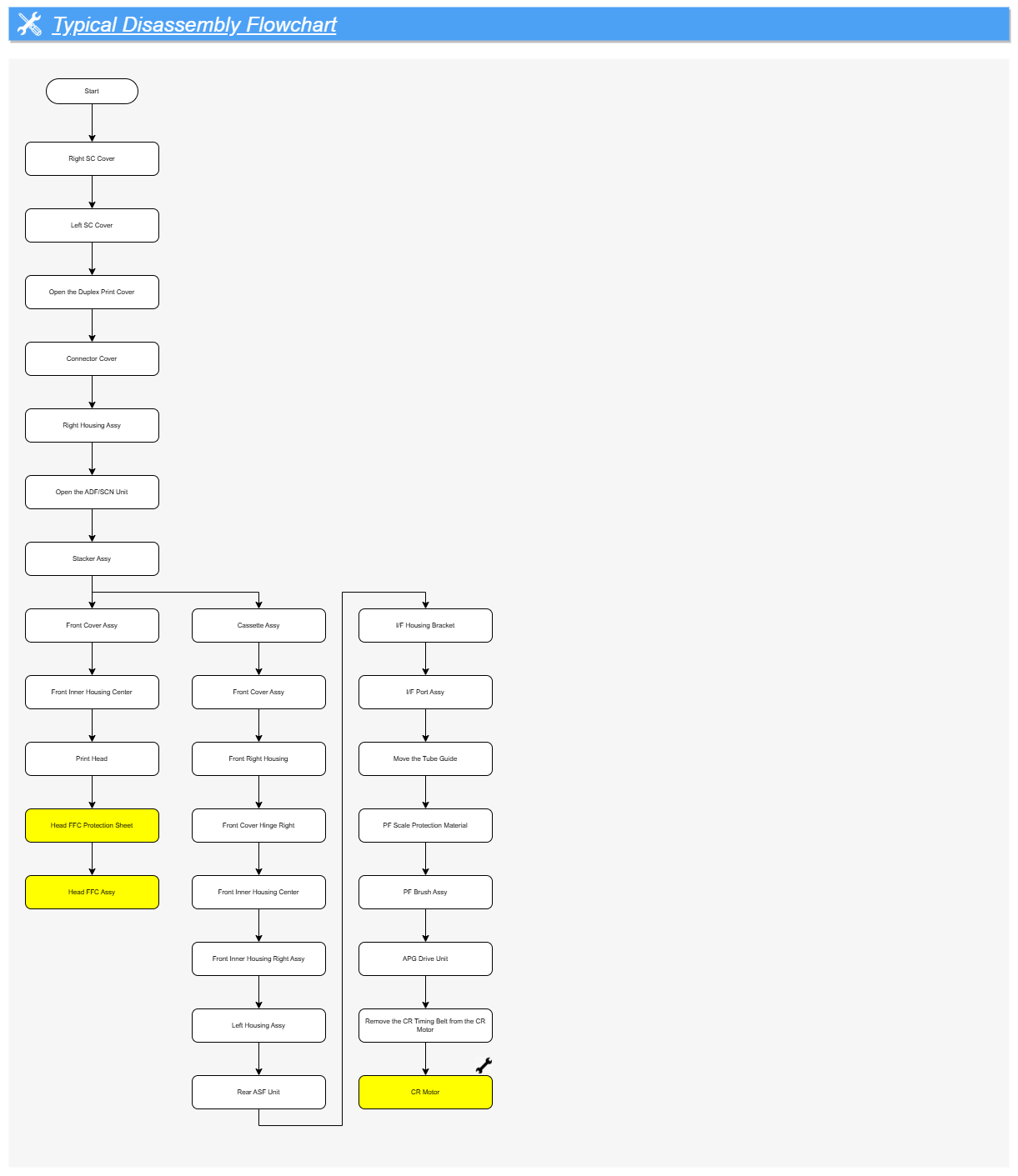

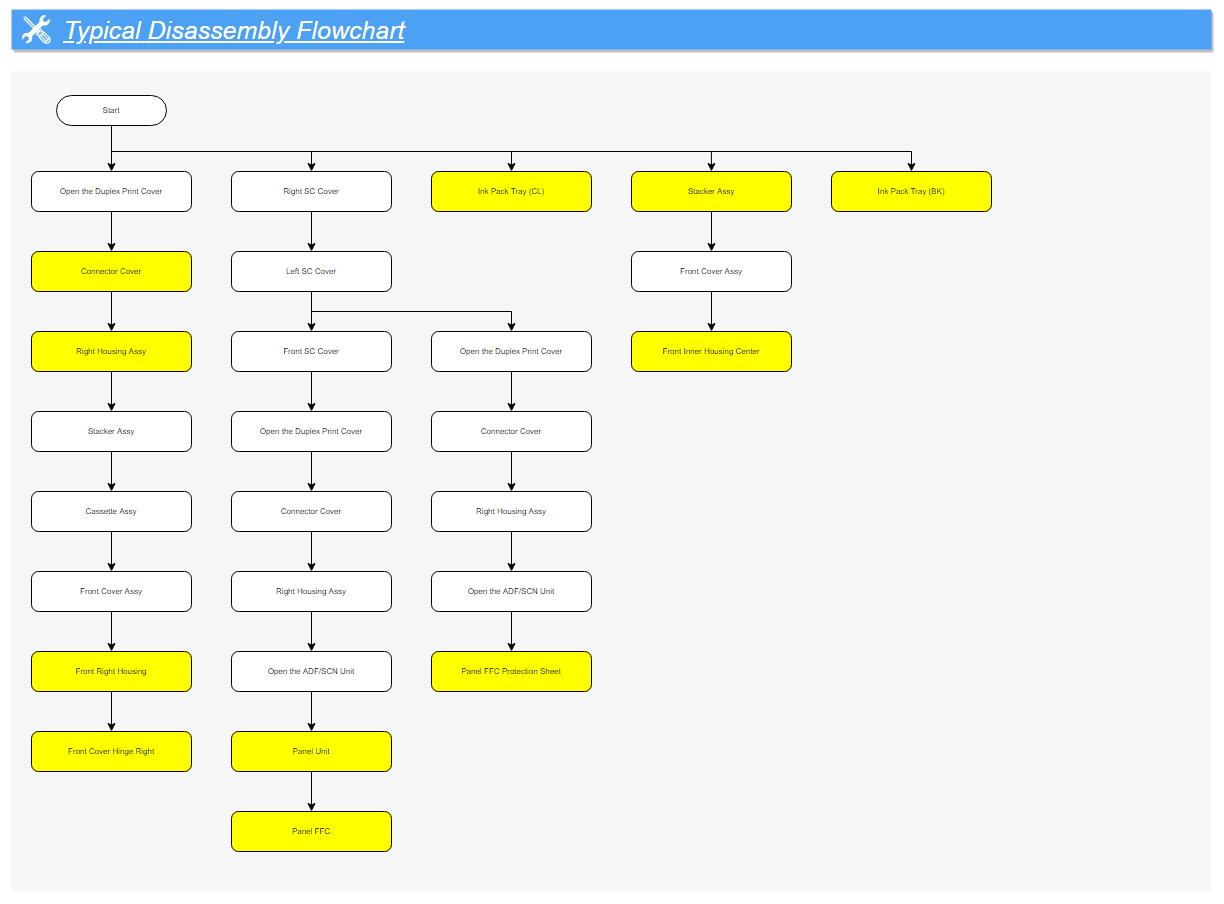

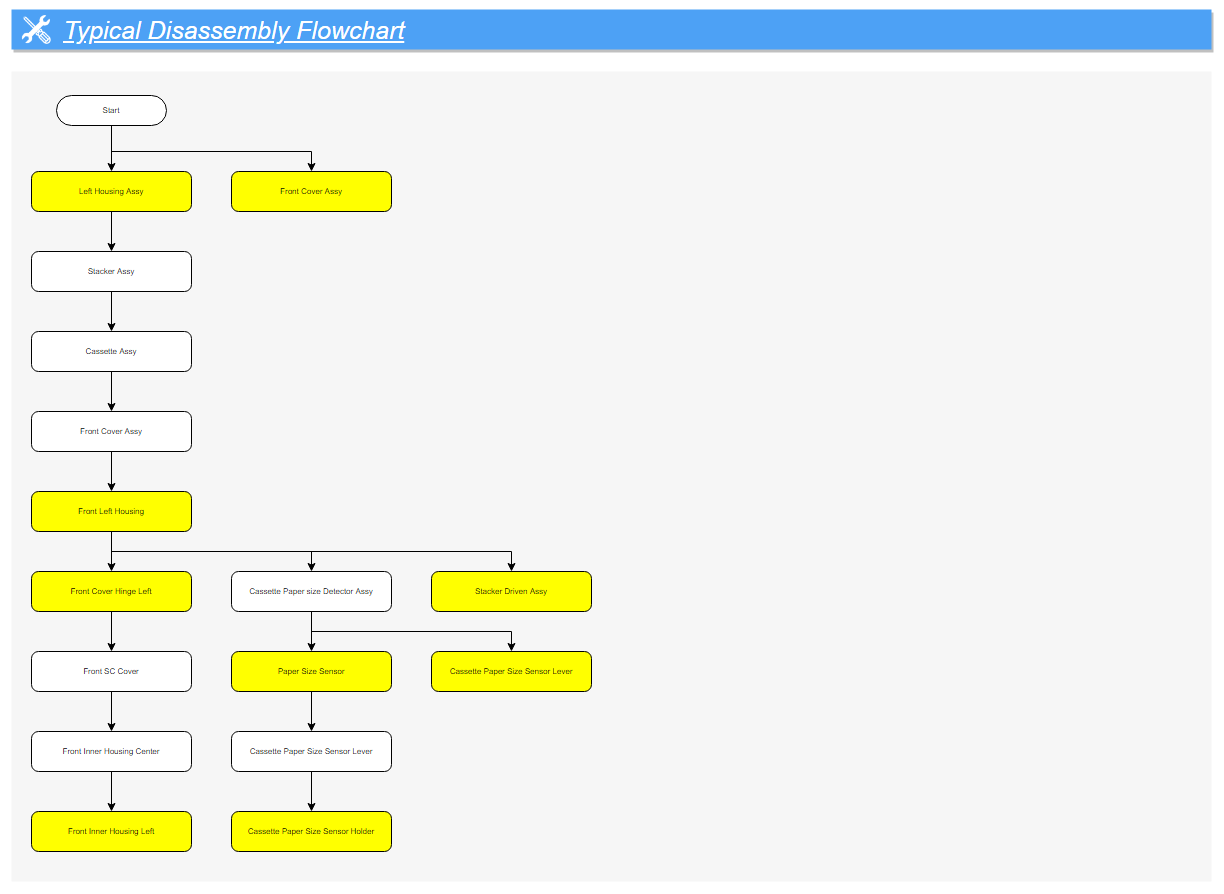

Housing (2/3)
Housing (3/3)

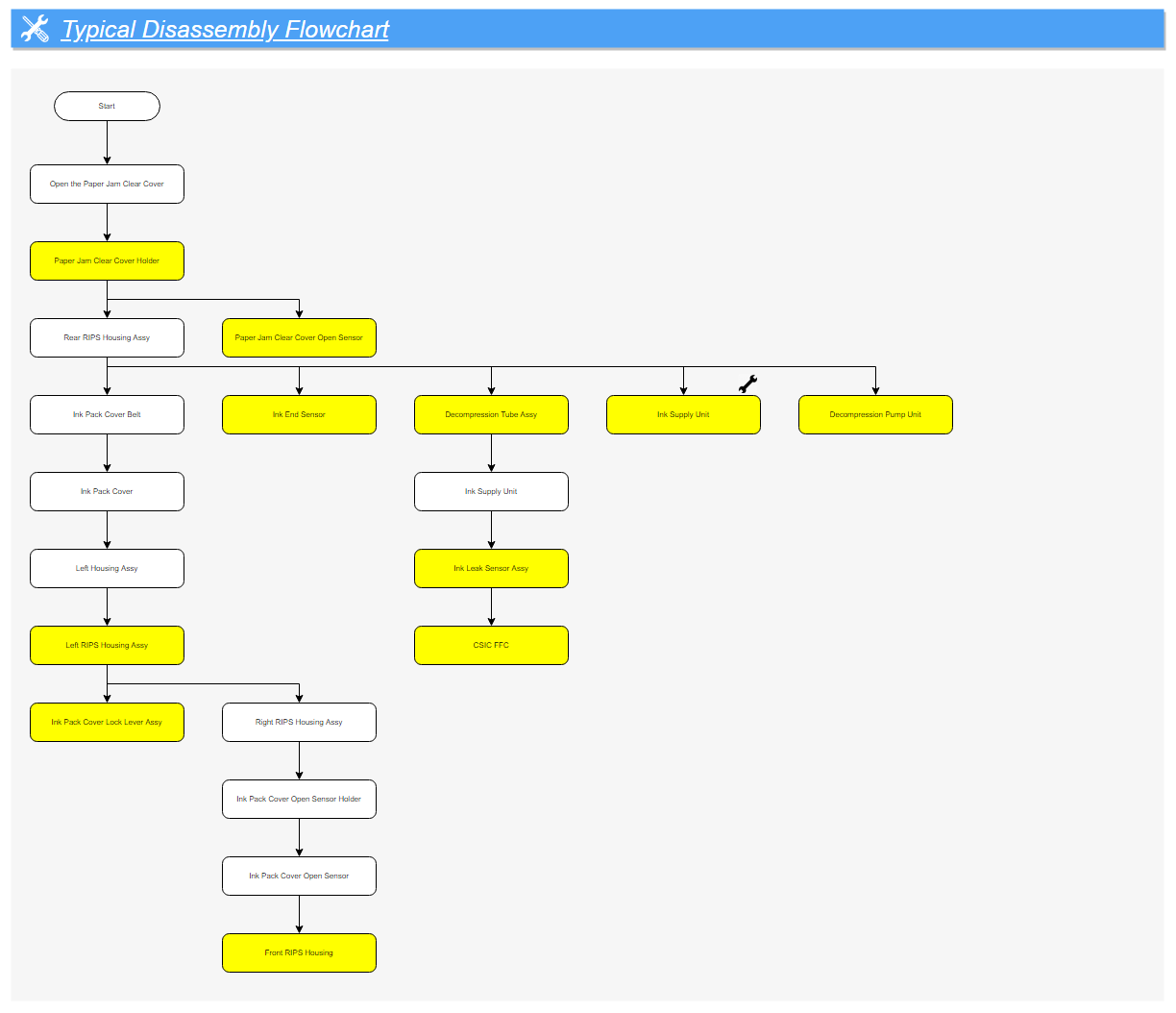

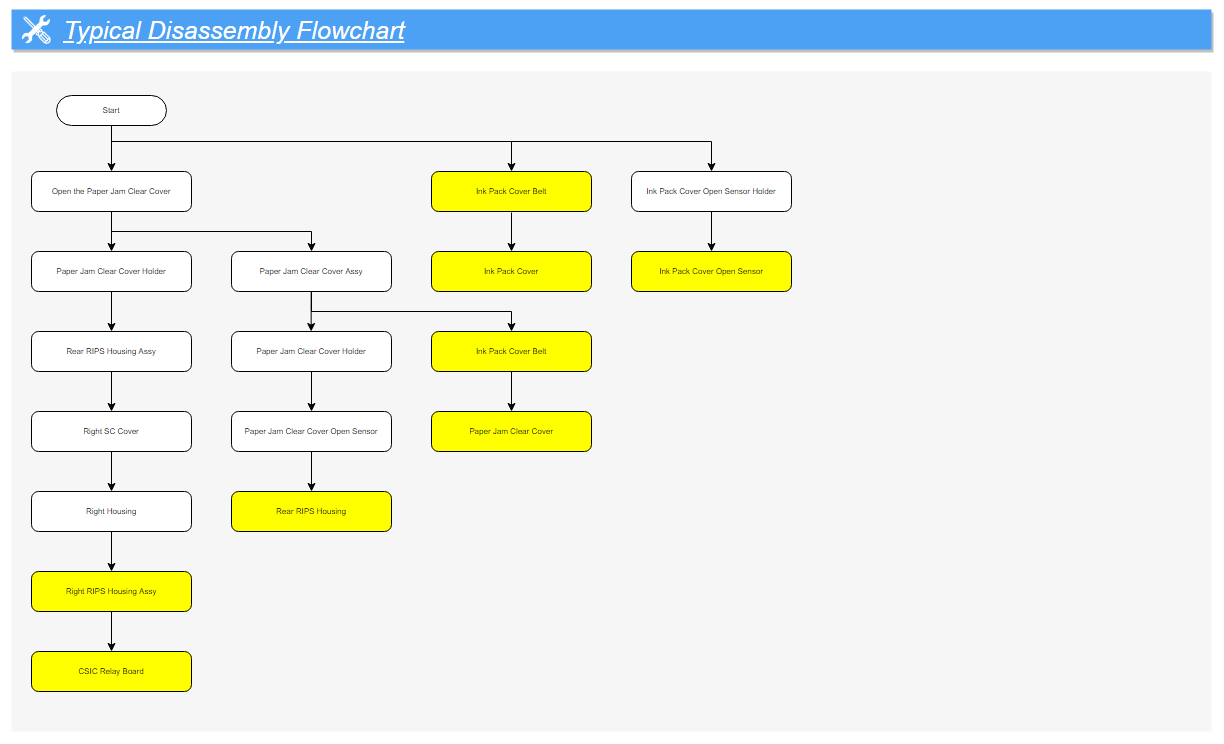

Ink Supply (1/3)
Ink Supply (2/3)
Ink Supply (3/3)

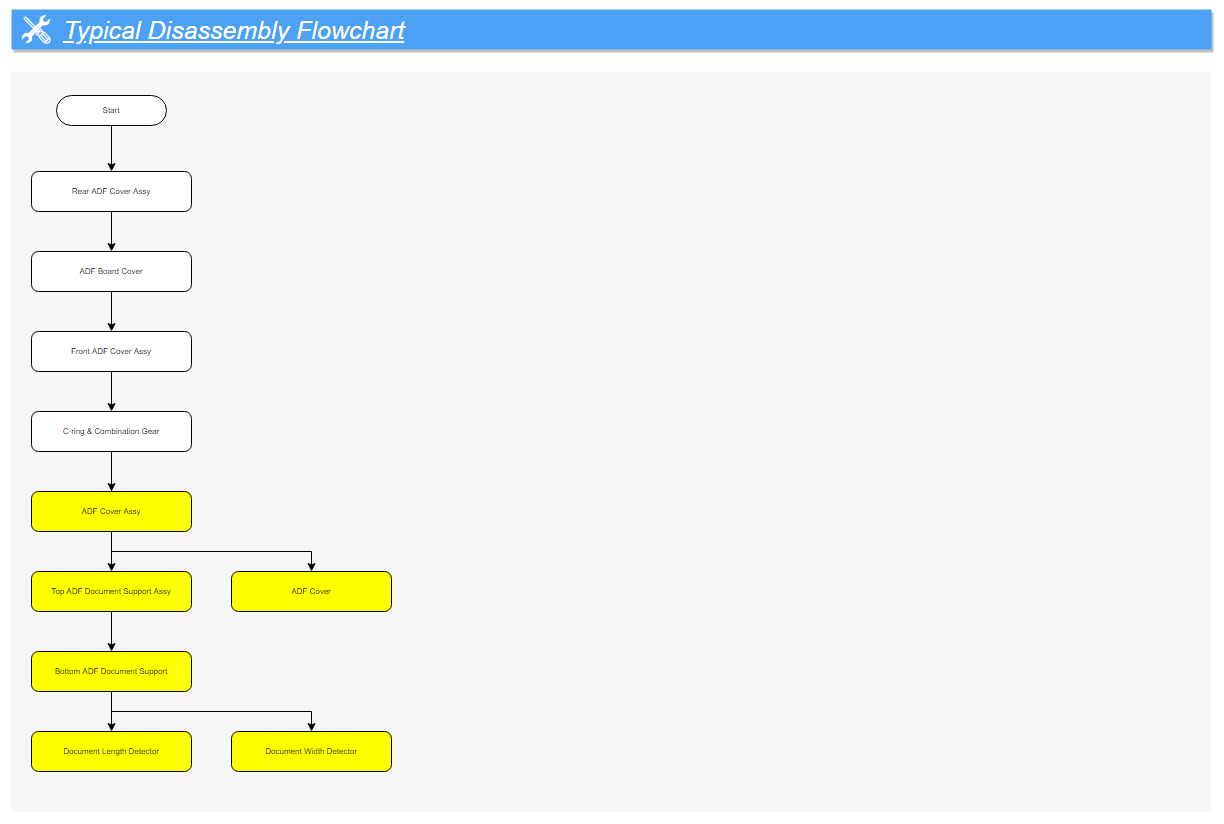

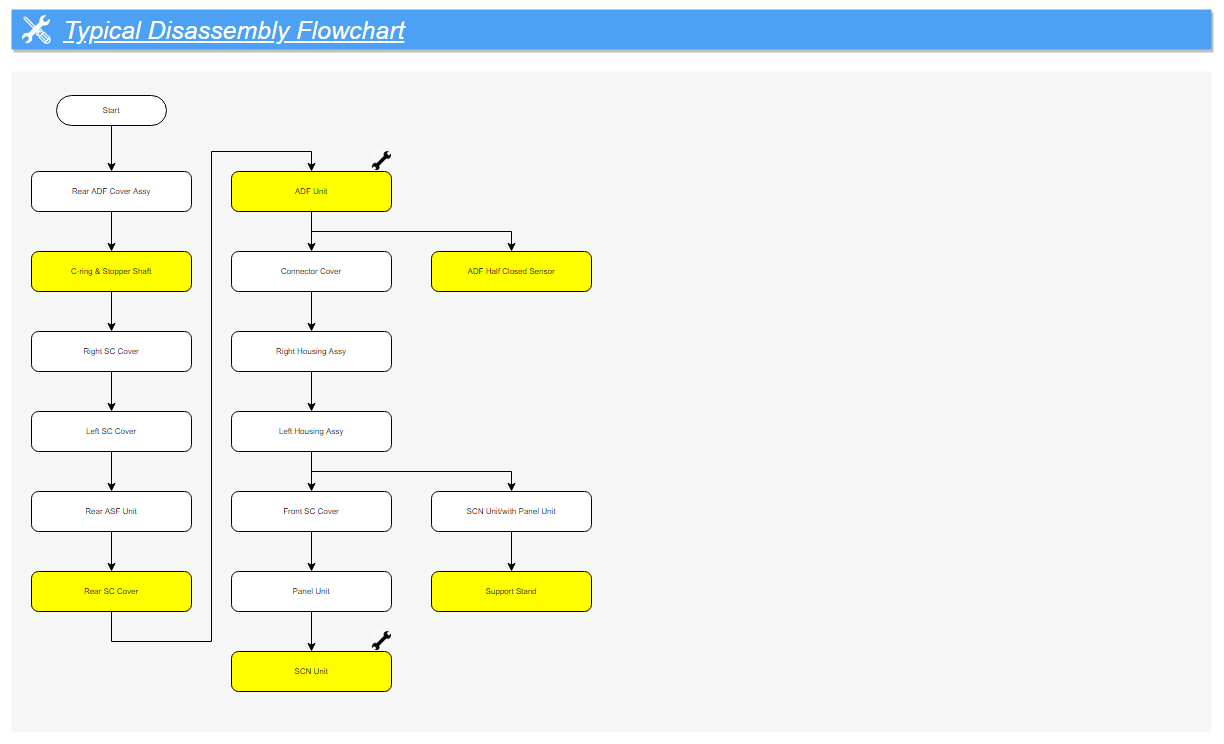

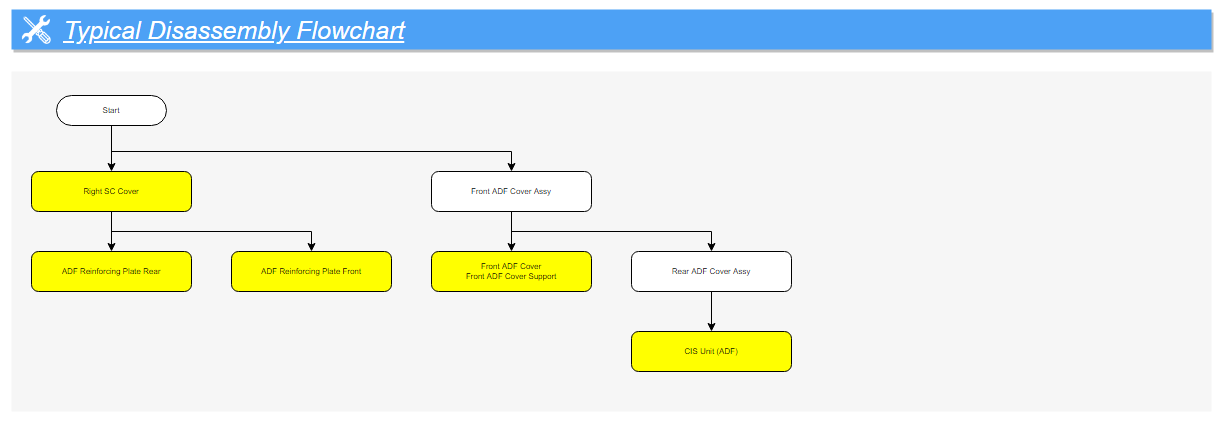

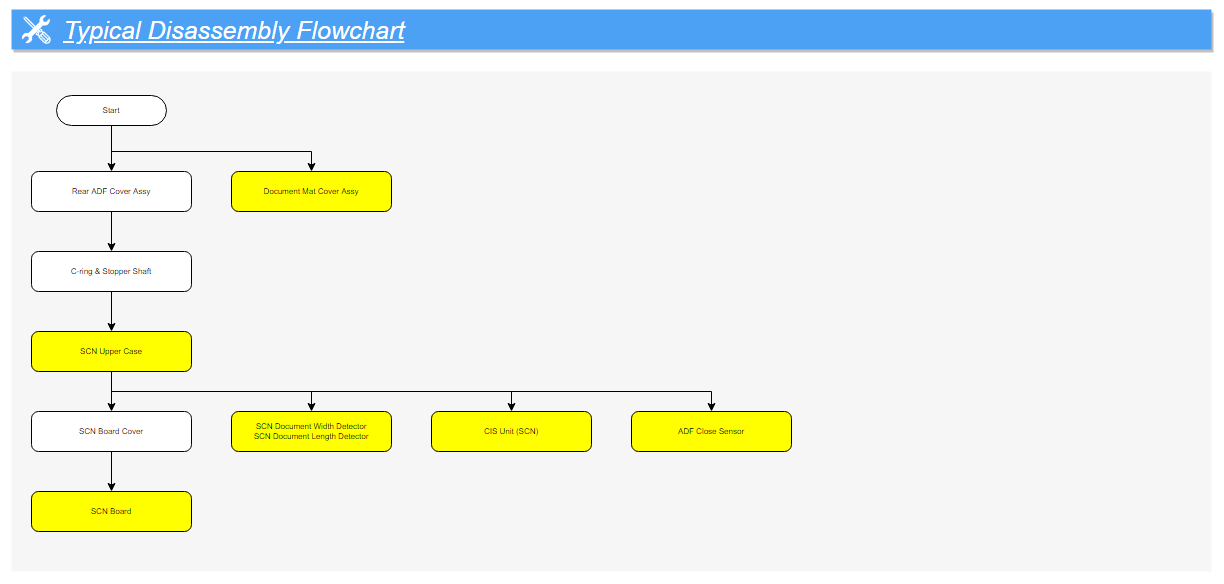

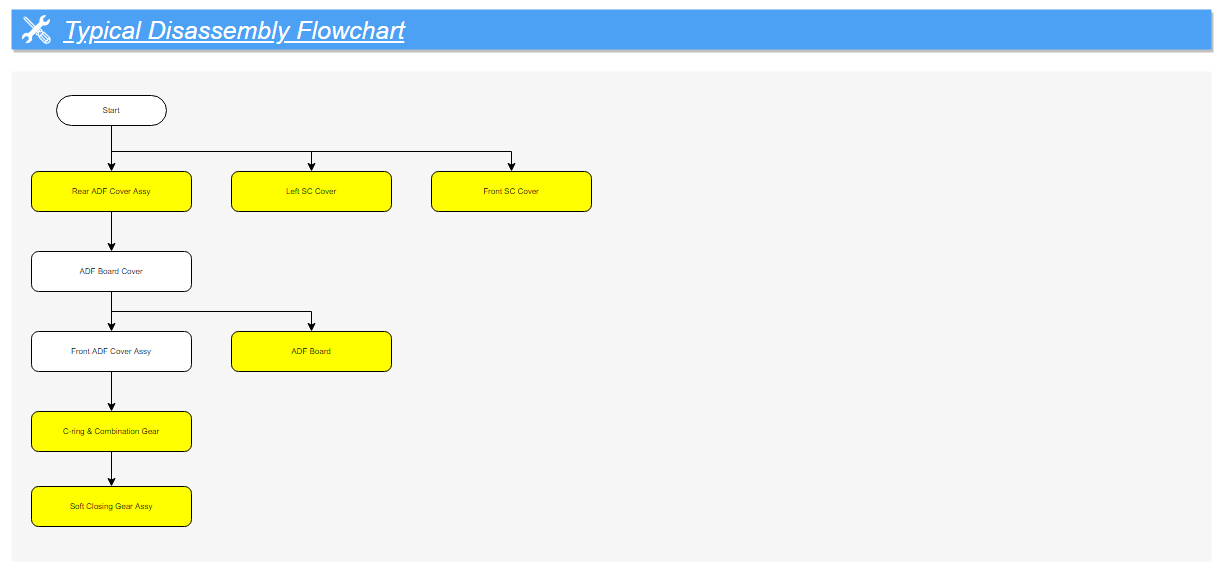

ADF/SCN（1/6）
ADF/SCN（2/6）
ADF/SCN（3/6）
ADF/SCN（4/6）
ADF/SCN（5/6）
ADF/SCN（6/6）

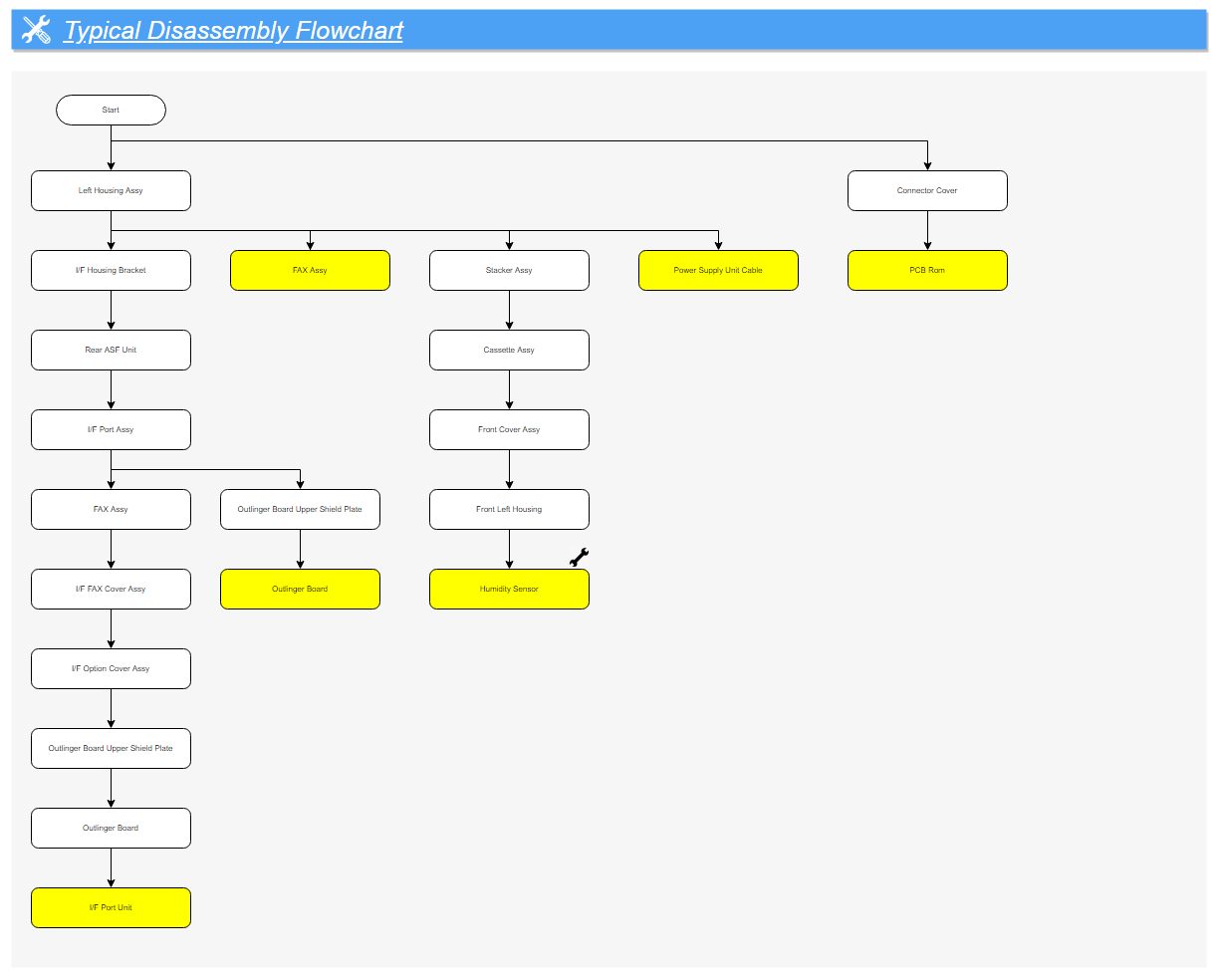

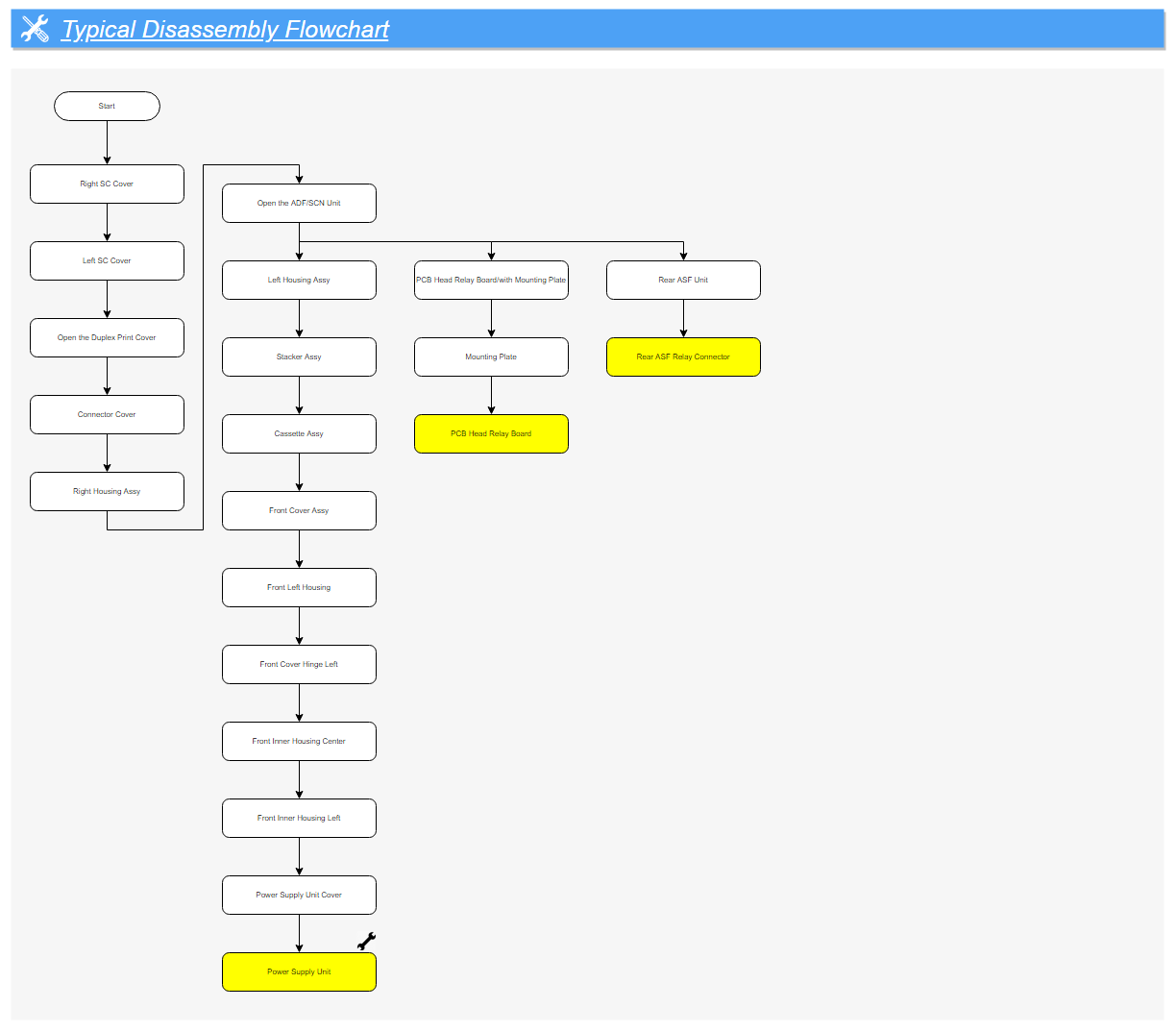

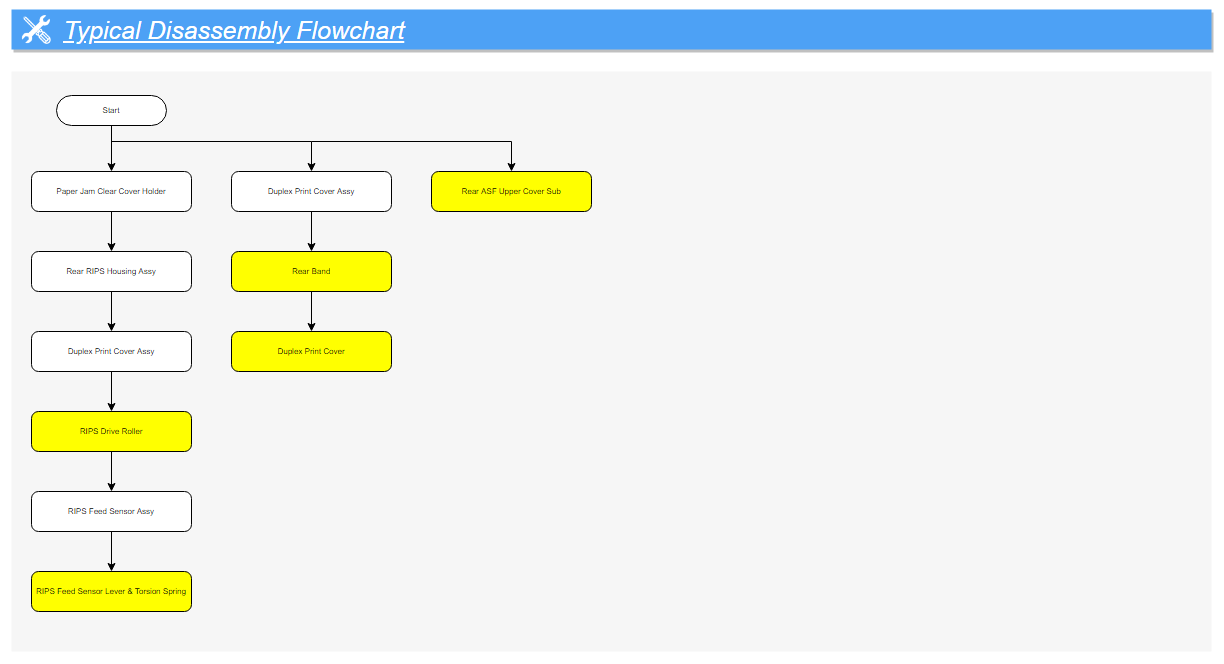

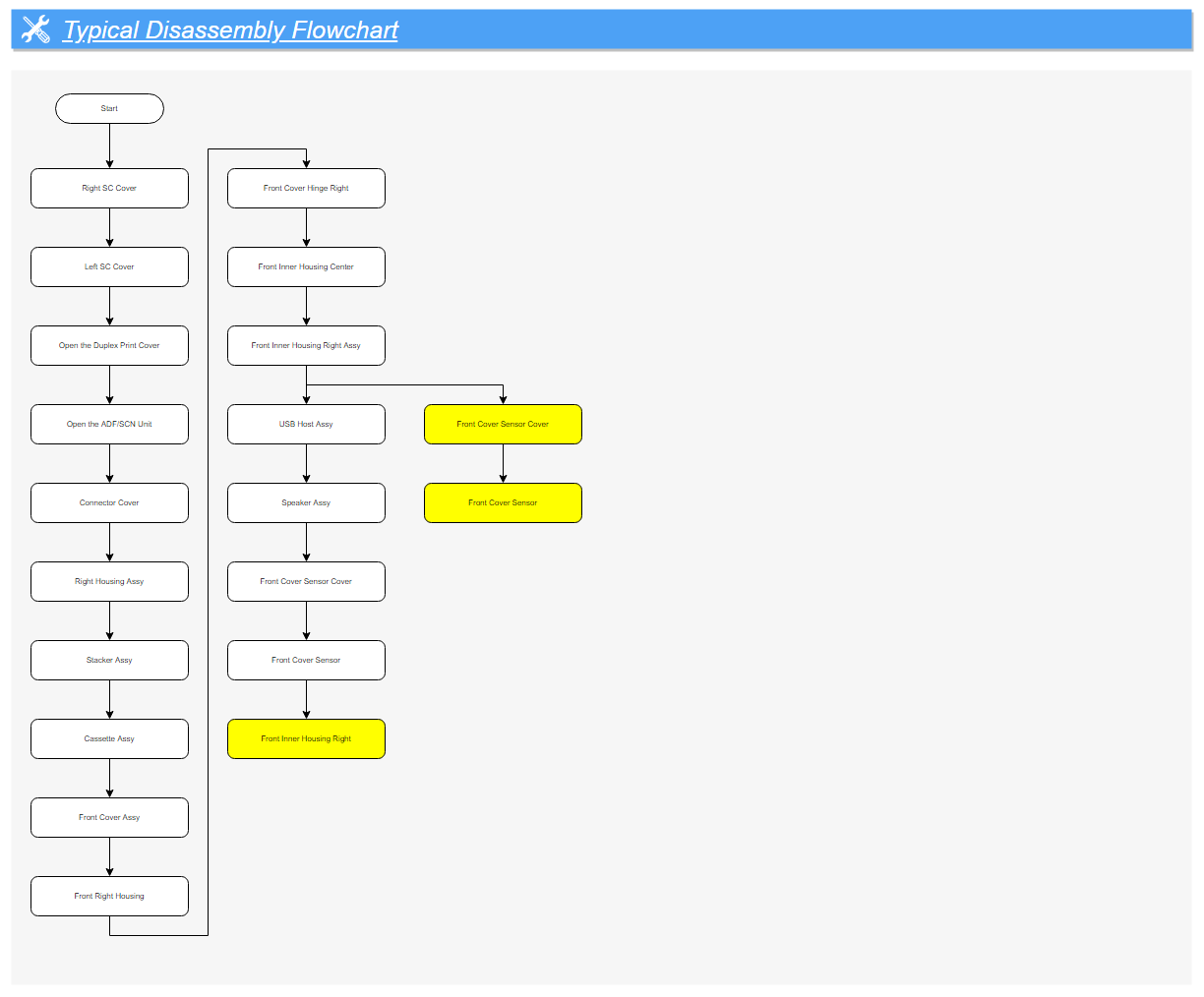

Electric Components (1/4)
Electric Components (2/4)
Electric Components (3/4)
Electric Components (4/4)
Ink system mechanism
Carriage Mechanism (1/3)
Carriage Mechanism (2/3)
Carriage Mechanism (3/3)

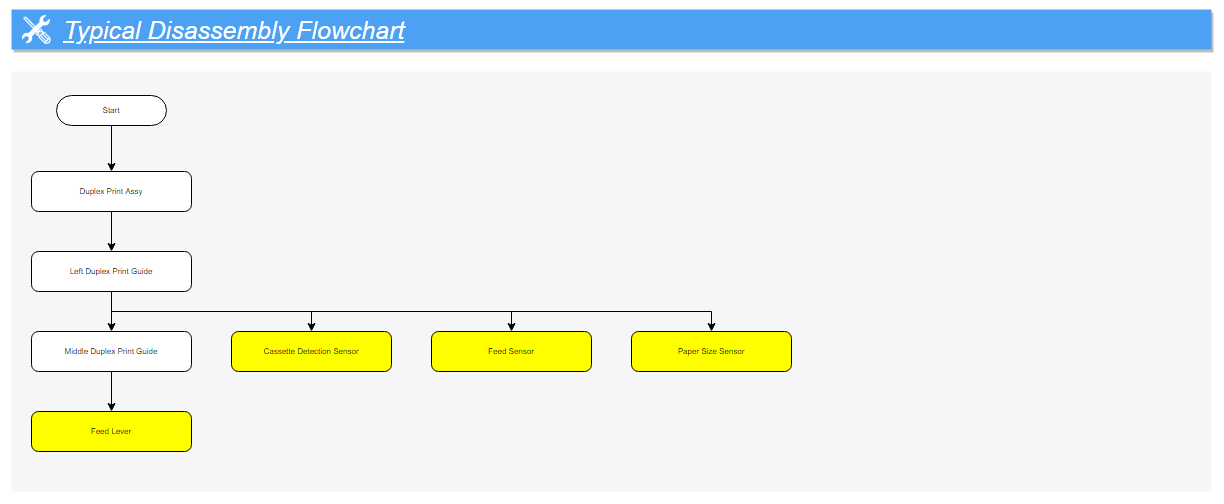

Paper Feed Mechanism (1/8)
Paper Feed Mechanism (2/8)
Paper Feed Mechanism (3/8)
Paper Feed Mechanism (4/8)
Paper Feed Mechanism (5/8)
Paper Feed Mechanism (6/8)
Paper Feed Mechanism (7/8)
Paper Feed Mechanism (8/8)

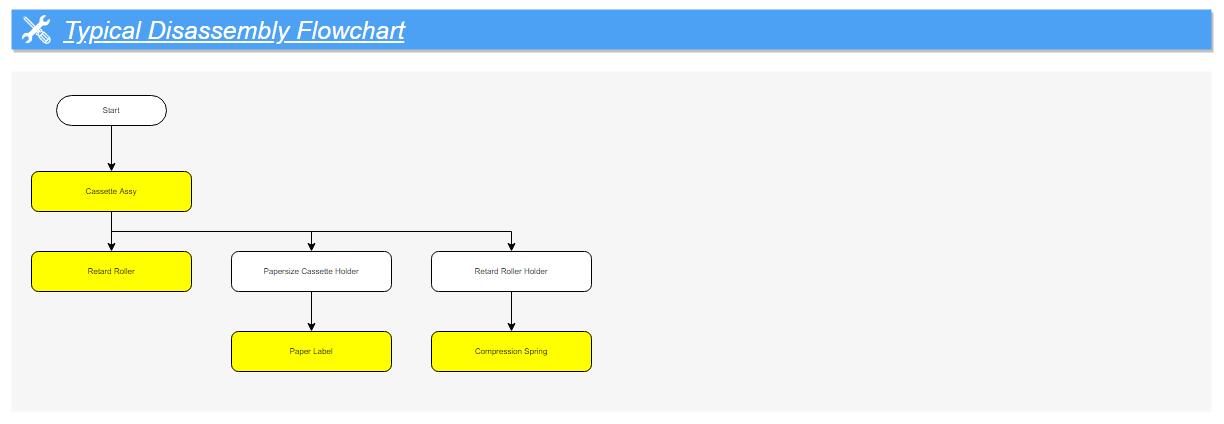

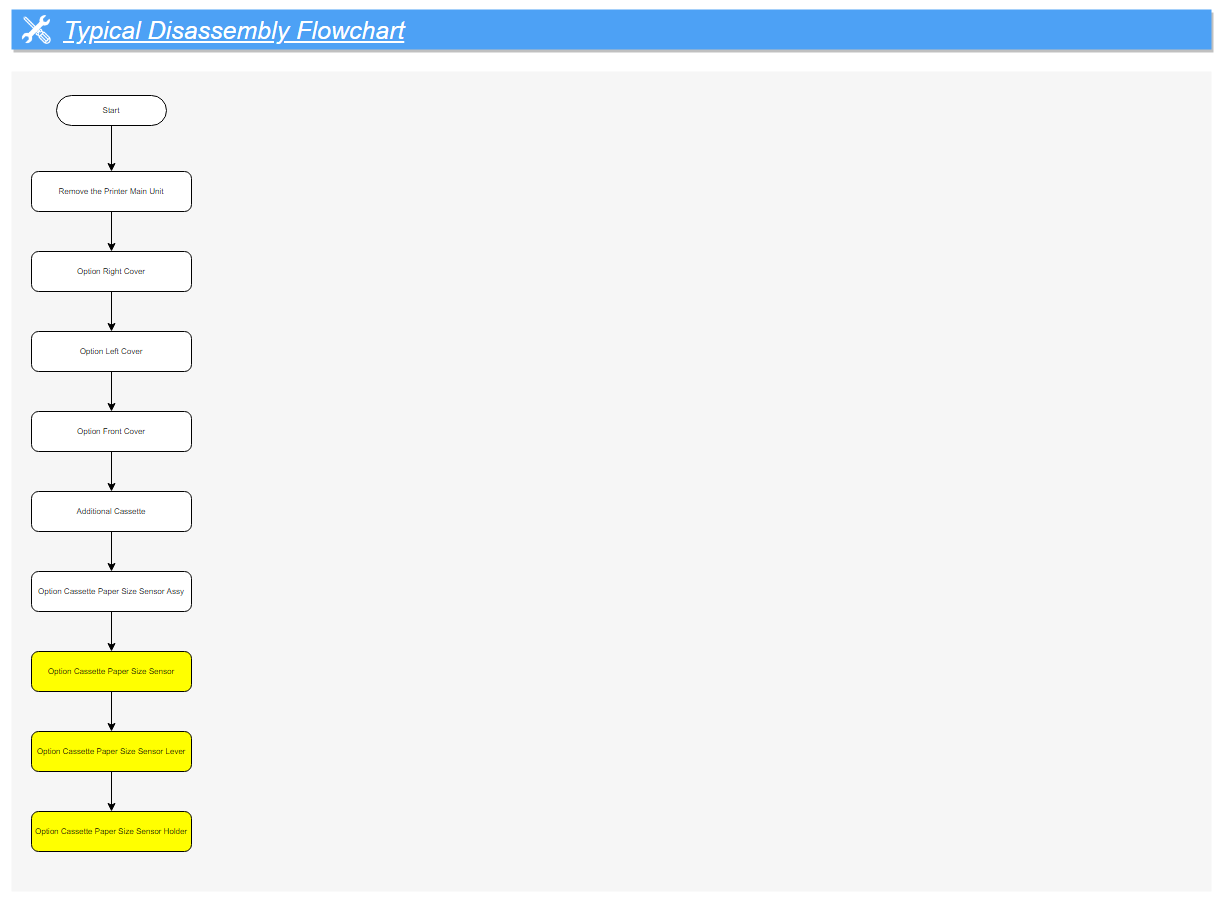

Paper Cassette

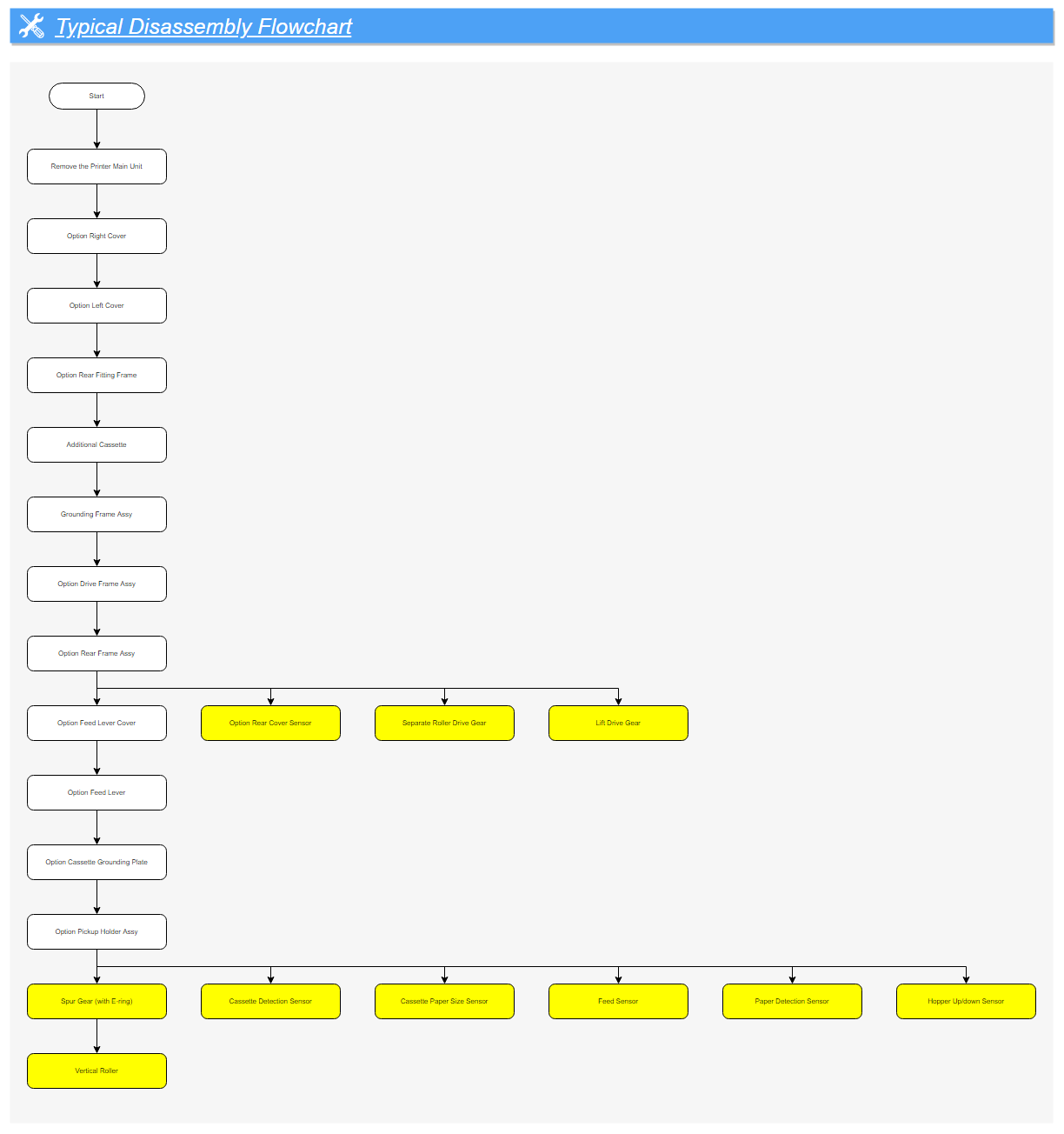

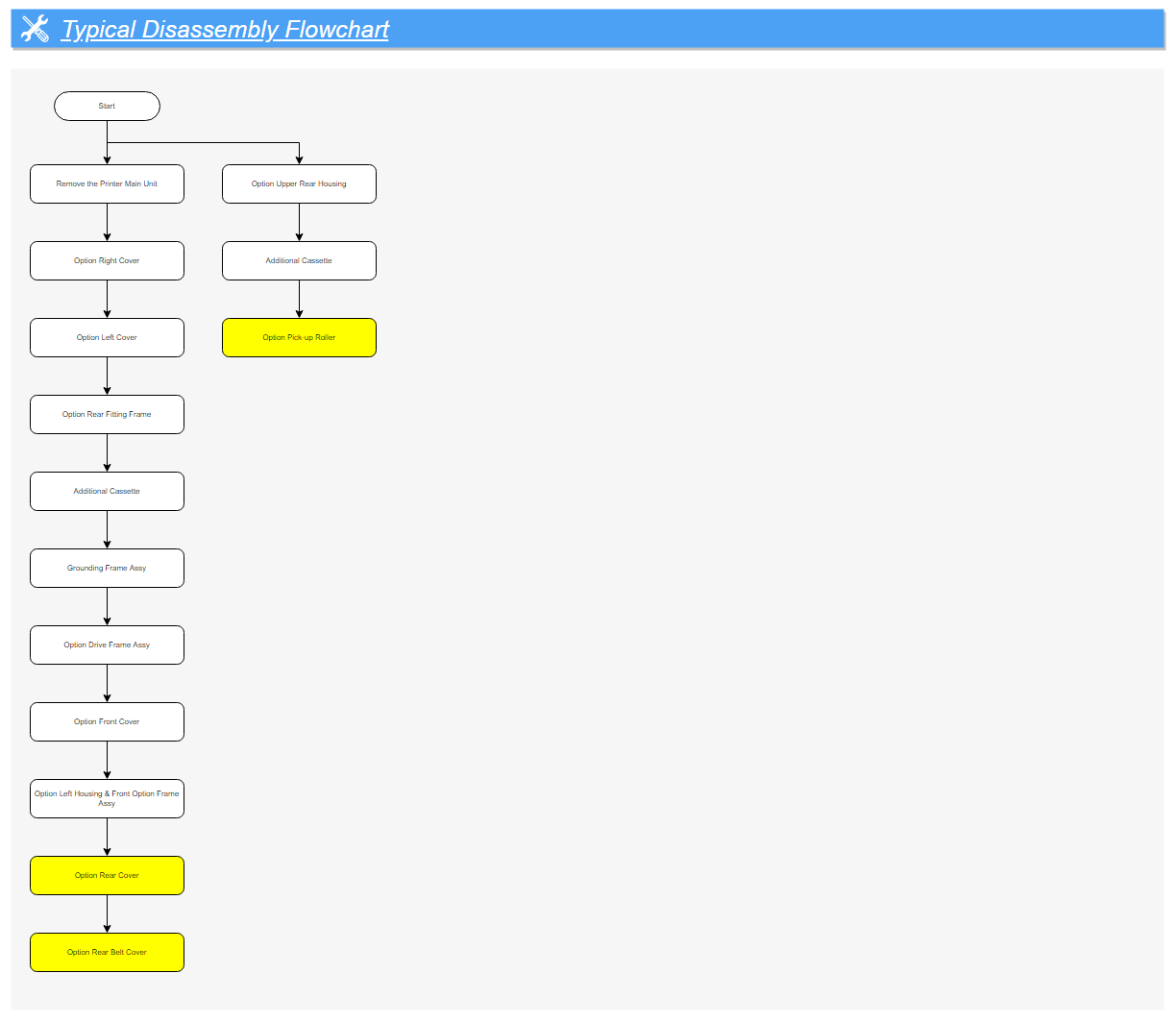

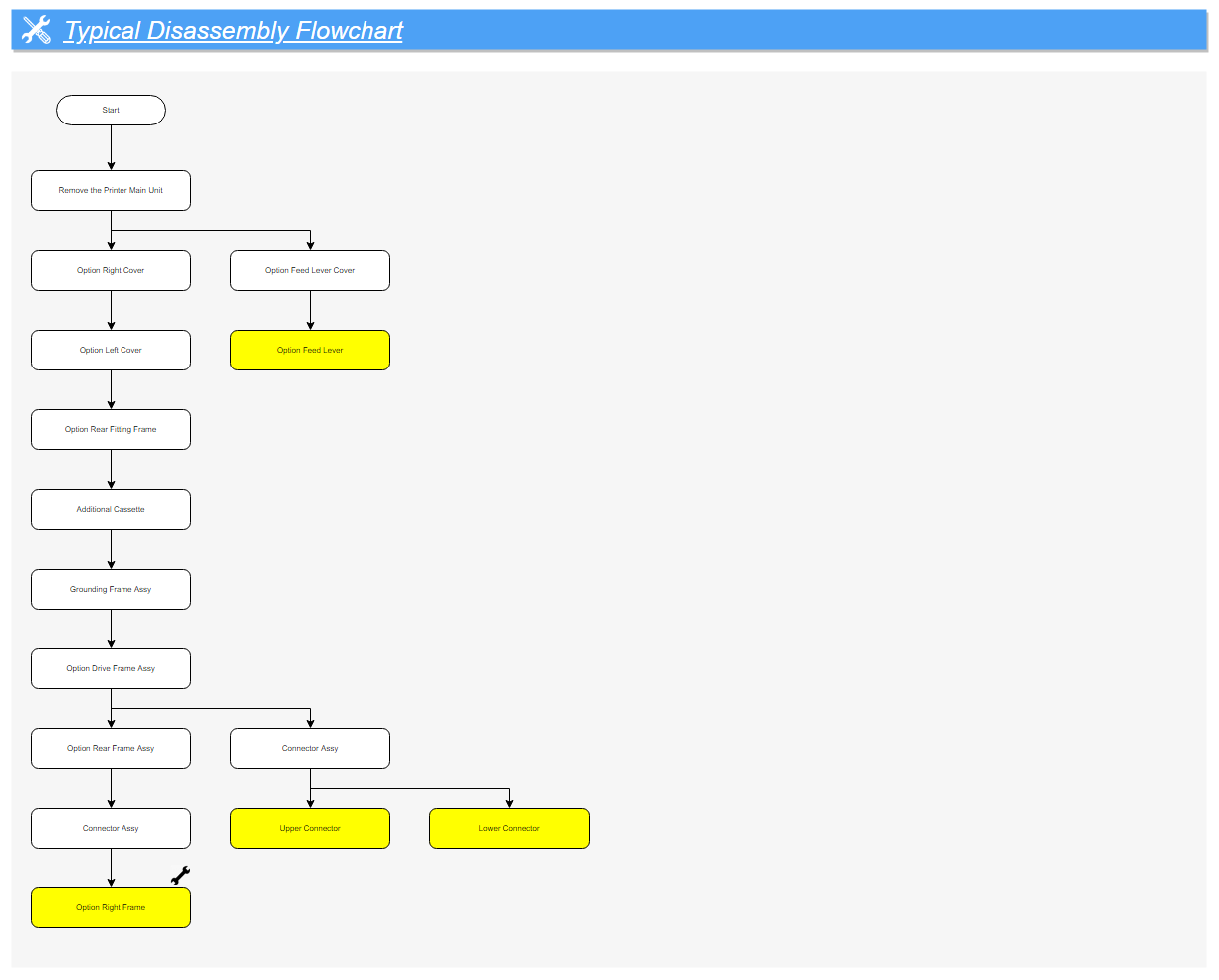

Optional Paper Cassette (1/4)
Optional Paper Cassette (2/4)
Optional Paper Cassette (3/4)
Optional Paper Cassette (4/4)
