# Rear ASF Solenoid

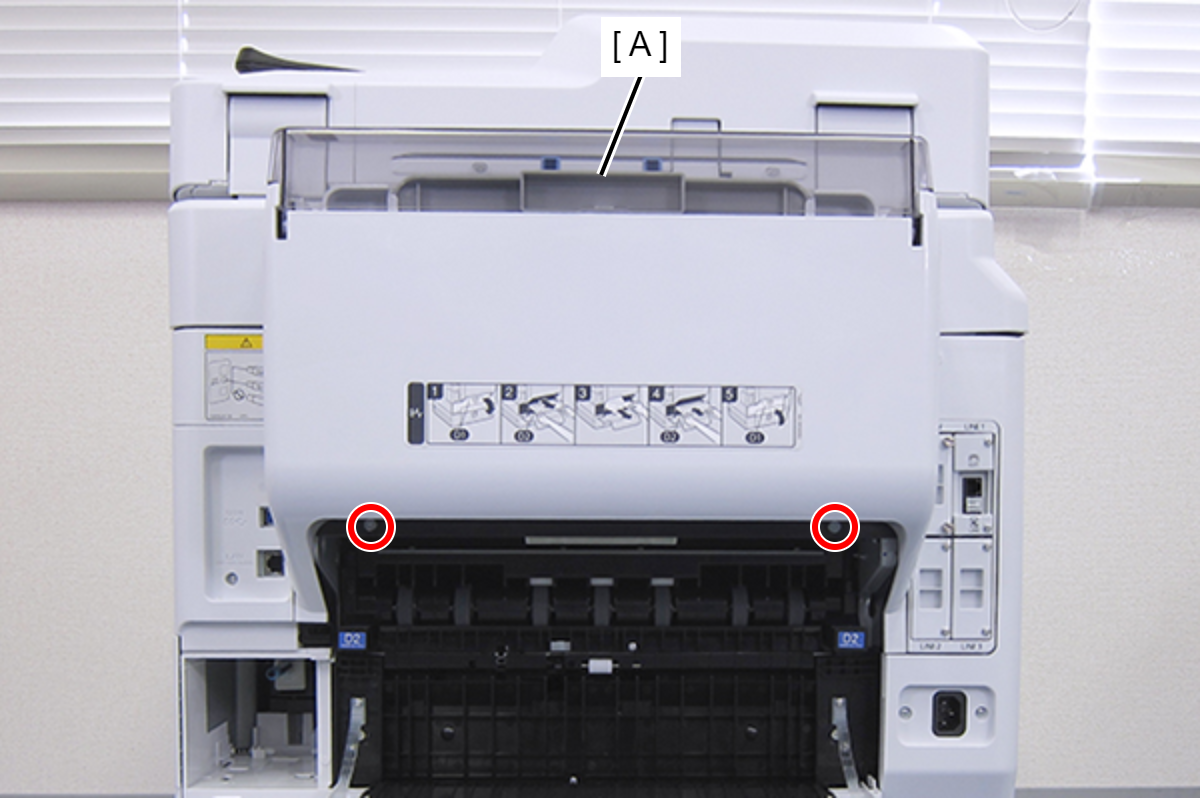

1. Remove the two screws, then remove the Rear ASF Unit (A).


   • : C.SHOULDER S-TITE,3X5

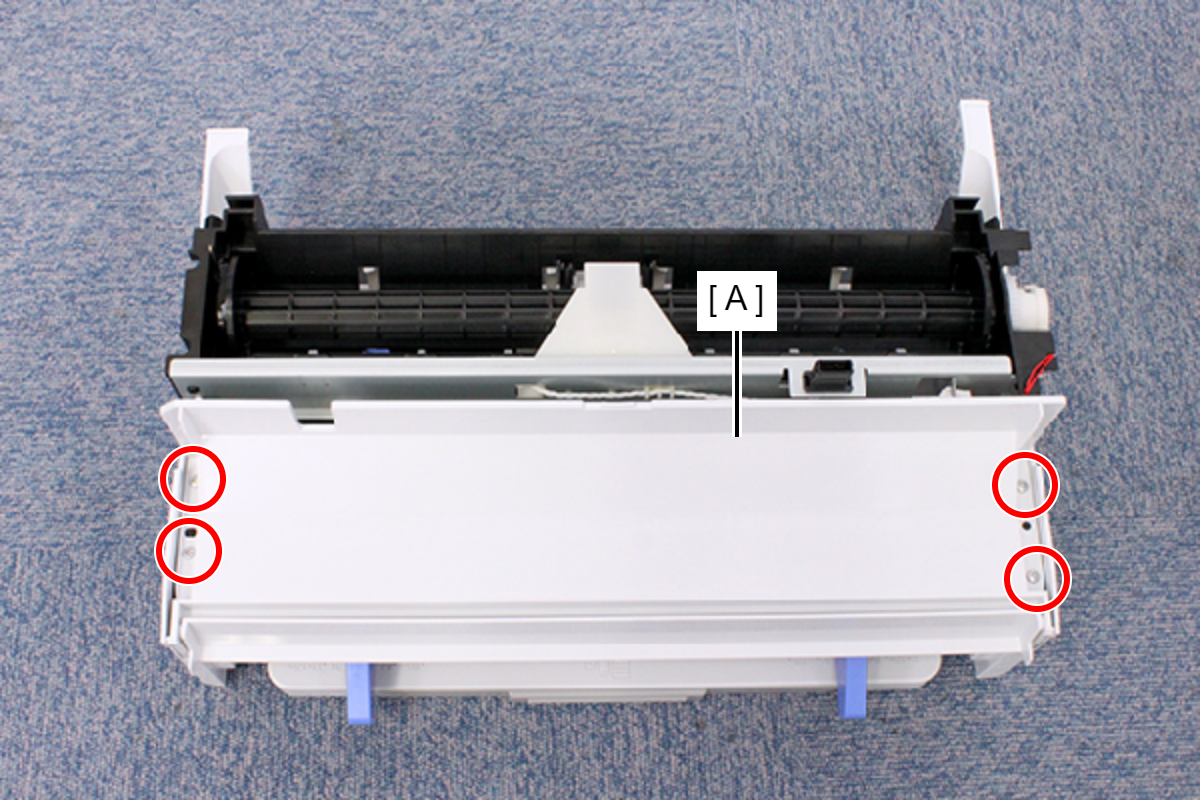

2. Remove the four screws, and remove the Rear ASF Front Cover Assy (A).

   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

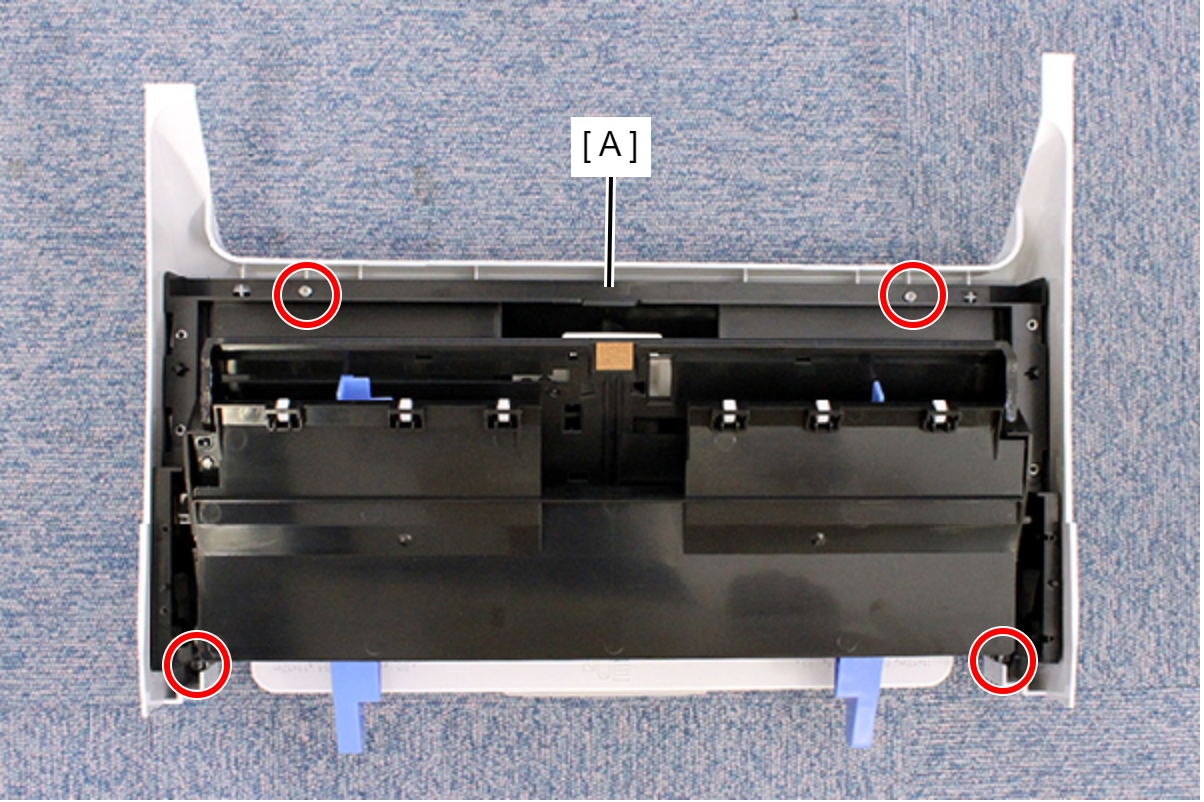

3. Remove the four screws, and remove the Rear ASF LD Assy (A).

   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C

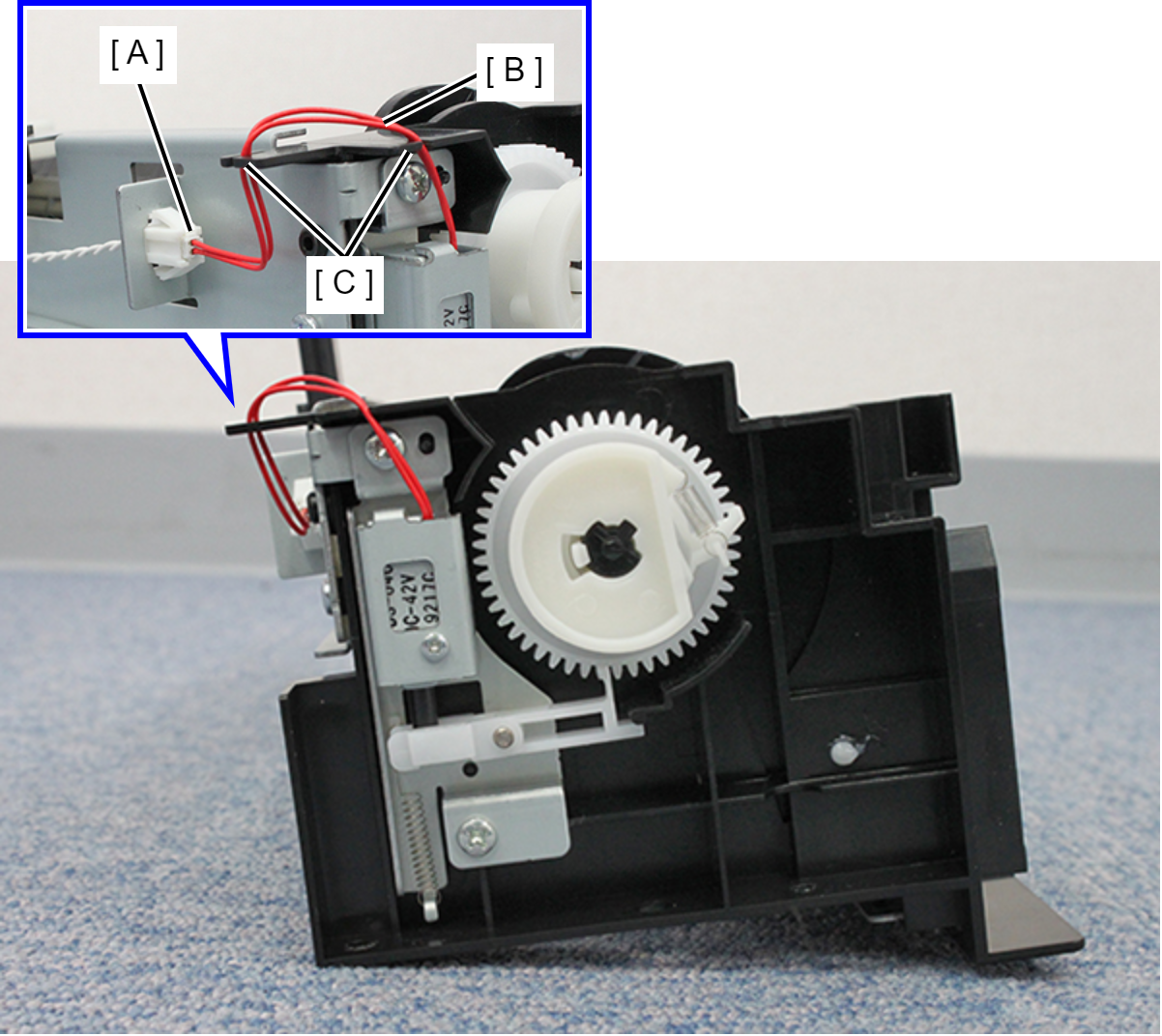

4. Remove the cable (B) from the Relay Connector (A), and release the cable from the two guides (C).

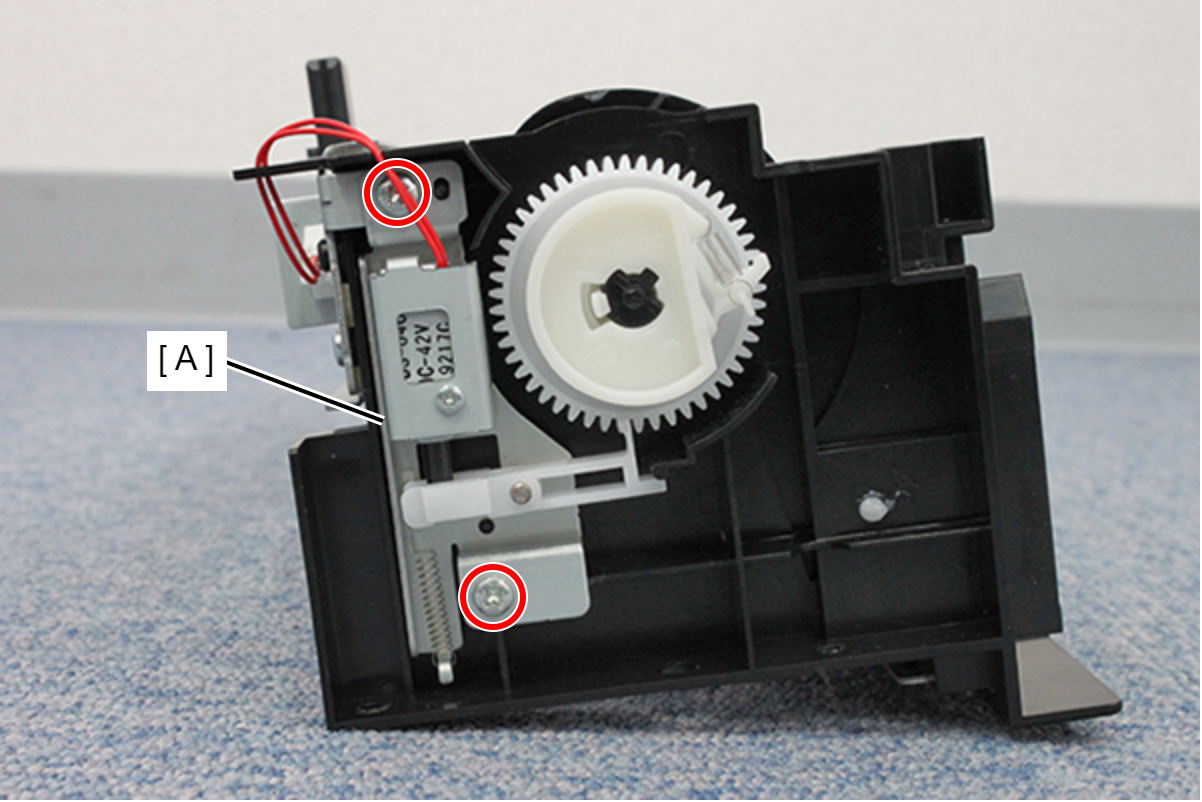

5. Remove the two screws, then remove the Rear ASF Solenoid (A).


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
