# DENSITY CALIBRATION [D06]

1. Start service support mode.
   • Service mode startup and operating procedures
2. Select “ADF/SCN: MENU” from the service support mode top menu.

3. Select “Density Calibration”.

   Check Point / チェックポイント

   Select and execute the corresponding adjustment item using either procedure below.

   • Selecting by entering the program number
   1. Select “Input D No.-ADF/SCN” from the Adjustment menu.
   2. Press the [#] button and software number key is displayed on LCD. Enter programnumber “06”.
   3. Press the [#] button.
   • Selecting from menu
   1. Select “Adjustment: MENU” from the ADF/SCN menu.
   2. Select “Individual Adjustment: MENU” from the Adjustment menu.
   3. Select “Density Calibration” from the Individual Adjustment menu.
4. When the screen in the following appears, load the chart (ADF MTF Chart) into the scanner. Press the [#] button to perform scanning.

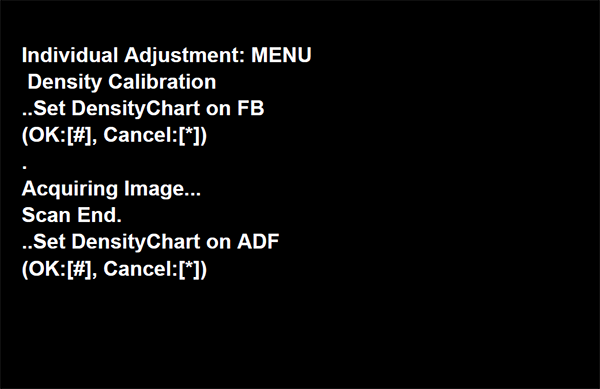

5. When the screen in the following appears, load the chart into the ADF.

6. Press the [#] button and perform scanning of the chart.
7. The adjustment end screen appears. Press the [#] button to return to the menu screen.
