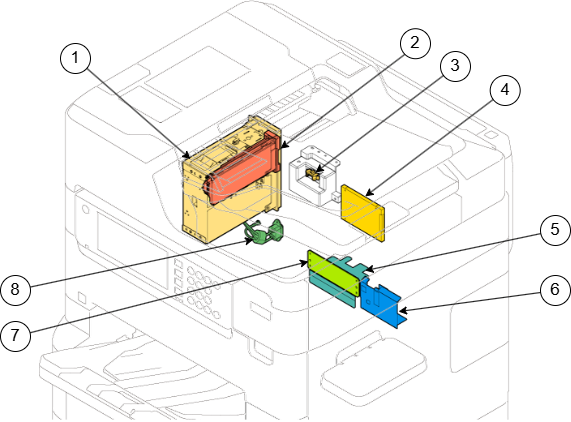

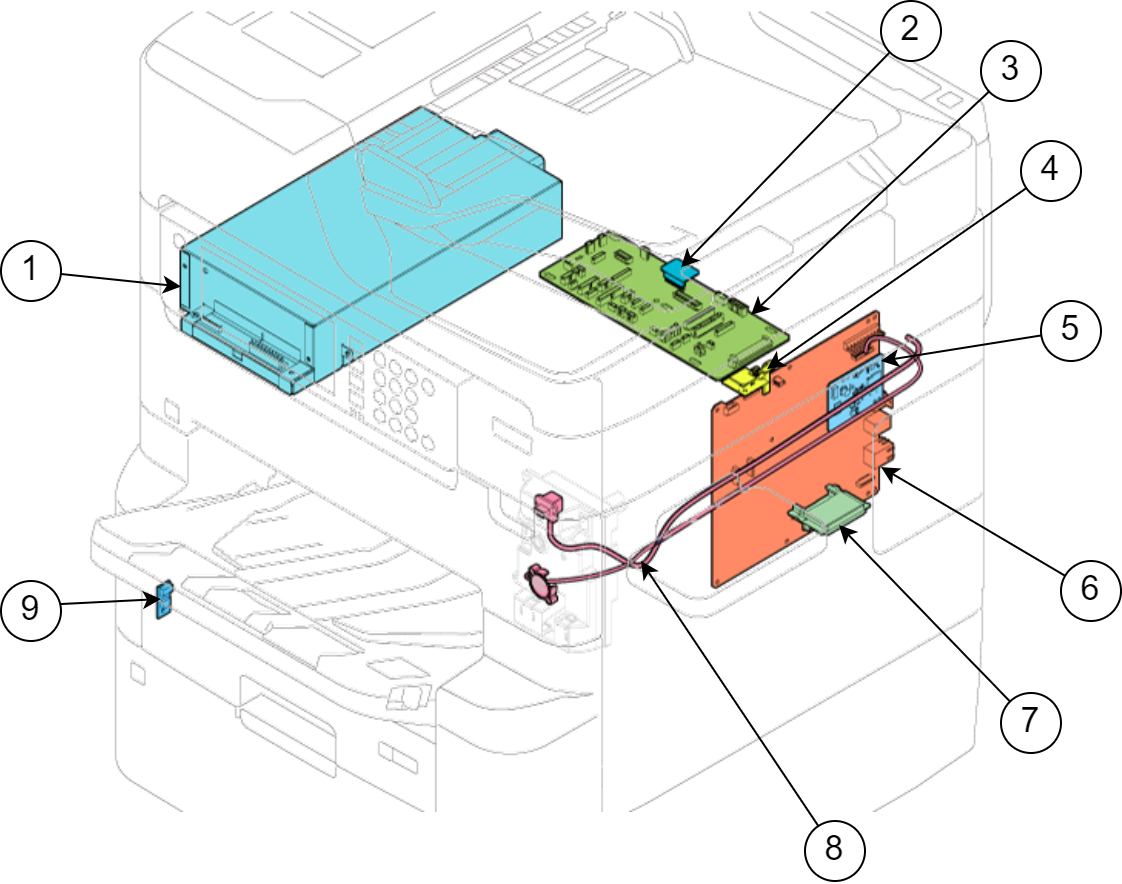

Electric Components
| No. | Name |
|---|---|
| 1 | Power Supply Unit |
| 2 | TPM Board |
| 3 | PCB Mechanism Relay Board |
| 4 | Wi-Fi Board |
| 5 | PDL Board |
| 6 | Main Board |
| 7 | PCB ROM |
| 8 | |
| 9 | Humidity Sensor |
