PG Adjustment

Check Point / チェックポイント
  • The standard value of the PG is as shown below.
    • 1.35±0.06 mm
  • Perform PG adjustment with the PG at the minimum (PG1) before attaching the CR scale.
Caution / 注意

Do not touch the CR scale during PR adjustment.
Tools to use

Tools to be used in PG Adjustment are as below.

  • Thickness gauge for PG adjustment
  • Teflon tape (part code: 1706715)

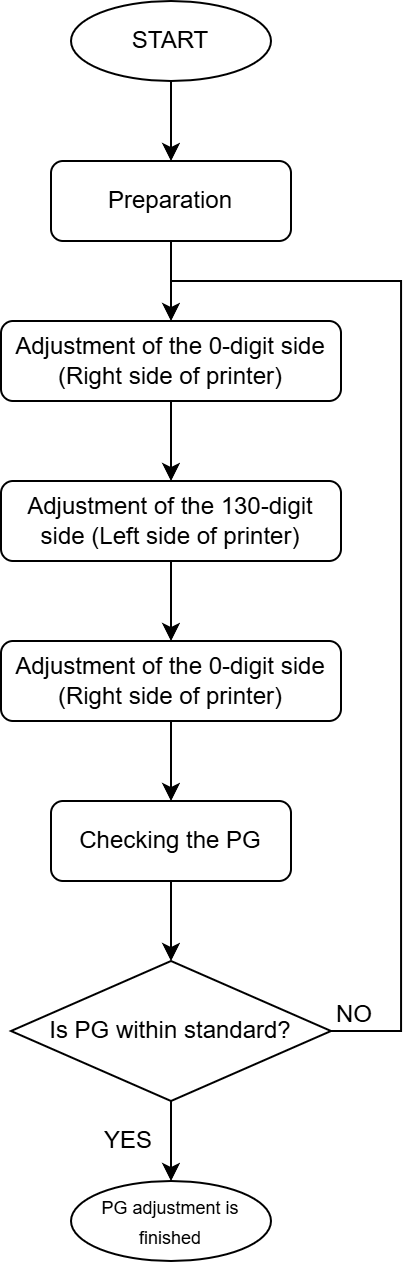

Adjustment flow

Preparing the thickness gauge

Check the PG

Preparation for the PG adjustment

PG Adjustment
