# Copy function check

Check Point / チェックポイント

Confirm the following items in copy function check. ADF unit Document feed operation confirmation Scan (Copy) image quality confirmation Scanner Unit Scan (Copy) image quality confirmation

#Operation check of ADF Unit

1. Load paper (A3 size) into the paper cassette.
2. Load any document (A3 size) into the ADF unit.
3. Select [Copy] from the Home screen.

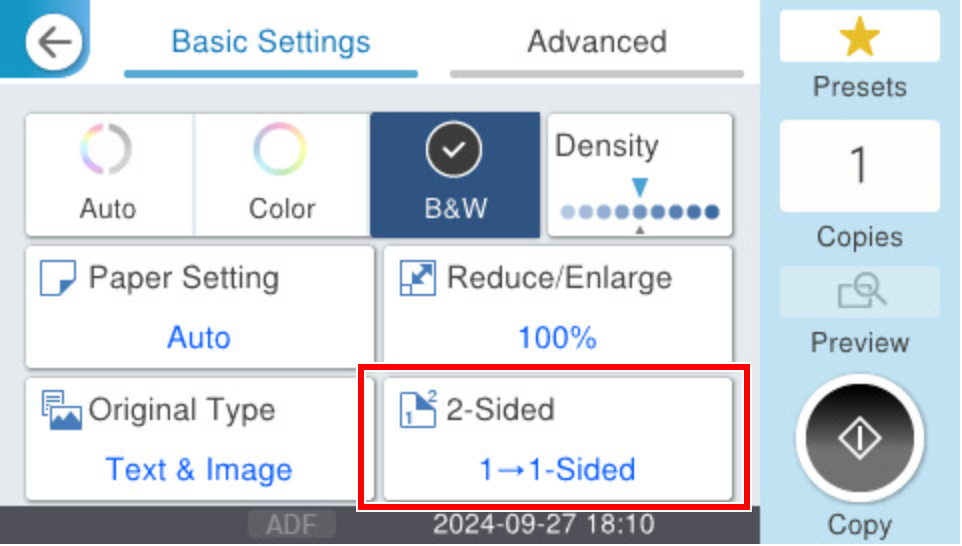

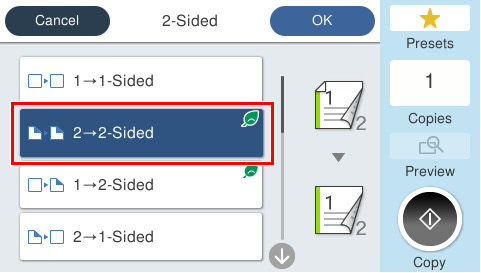

4. Press [2-Sided], select [2→2 Sided], and press the Start button to execute copying.





   Check Point / チェックポイント

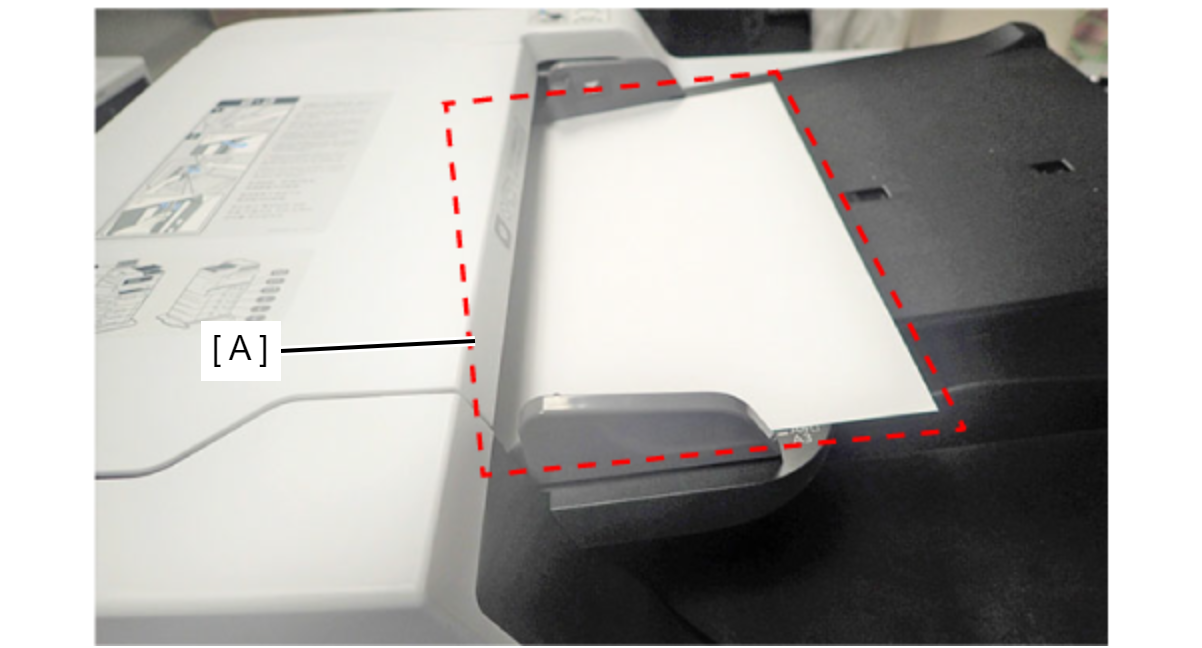

   If you cannot prepare the document (A3 size), perform the following confirmation. Load paper (A4 size) into the paper cassette. Load any document (A4 size) vertically into the ADF Unit. Select [Copy] from the Home screen. Press [2-Sided], select [2→2 Sided], and press the Start button to execute copying.

#Operation check of Scanner Unit.

1. Load paper (A3 size) into the paper cassette.
2. Load any document (A3 size) into the Flatbed.
3. Select [Copy] from the Home screen.
4. Press [2-Sided], select [1→1 Sided], and press the Start button to execute copying.




   Check Point / チェックポイント

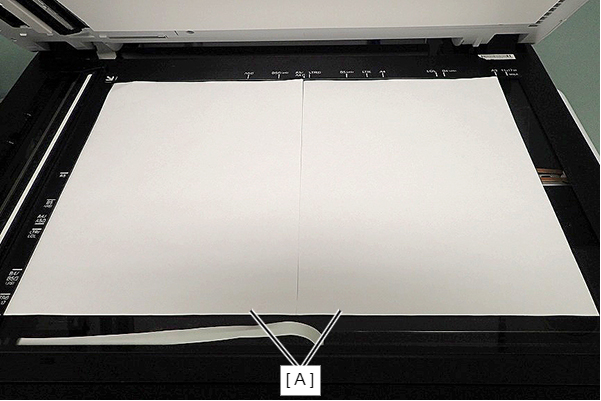

   If you cannot prepare the document (A3 size), perform the following confirmation. Load paper (A4 size) into the paper cassette. Place two documents (A4 size) side by sided. Select [Copy] from the Home screen. Change the Copy setting like the following setting, and press the Start button to execute copying. Paper setting       : A4 Reduce/Enlarge  : Auto 2-sided                 : 1→1 Sided

5. Installing the Printer driver/Scanner driver.
