# Head ID Input [B10]

1. Start service support mode.
   • Service mode startup and operating procedures
2. Select “Adjustment Main Unit: MENU” from the service support mode top menu.

3. Select Head ID Input

   Check Point / チェックポイント

   Select and execute the corresponding adjustment item using either procedure below.

   • Selecting by entering the program number
   1. Select “Input B No.-Main Unit Adjust” from the Adjustment menu.
   2. Press the [#] button and software number key is displayed on LCD. Enter programnumber “10”.
   3. Press the [#] button.
   • Selecting from menu
   1. Select “Individual Adjustment: MENU” from the Adjustment menu.
   2. Select “Initial Setting Menu” from the Individual Adjustment menu.
   3. Select “Head ID Input” from the Initialize menu.

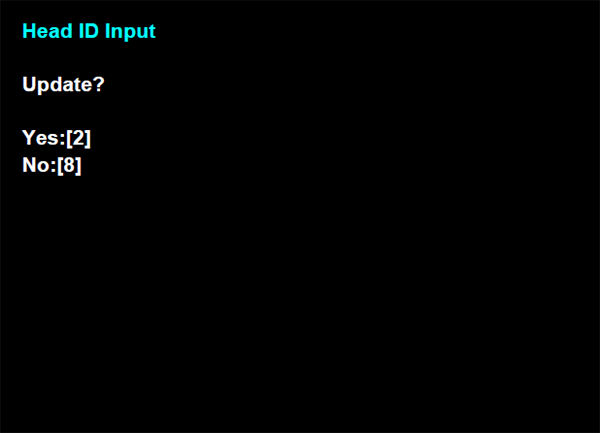

4. The following screen will be displayed.

5. Press the [2] button. Head ID update is executed. (To not execute it, press the [8] button to return to the Initial Setting menu)
