# Power Supply Unit Cable

1. Remove the three screws, then remove the Left Housing Assy (A) toward the rear of the product.


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C

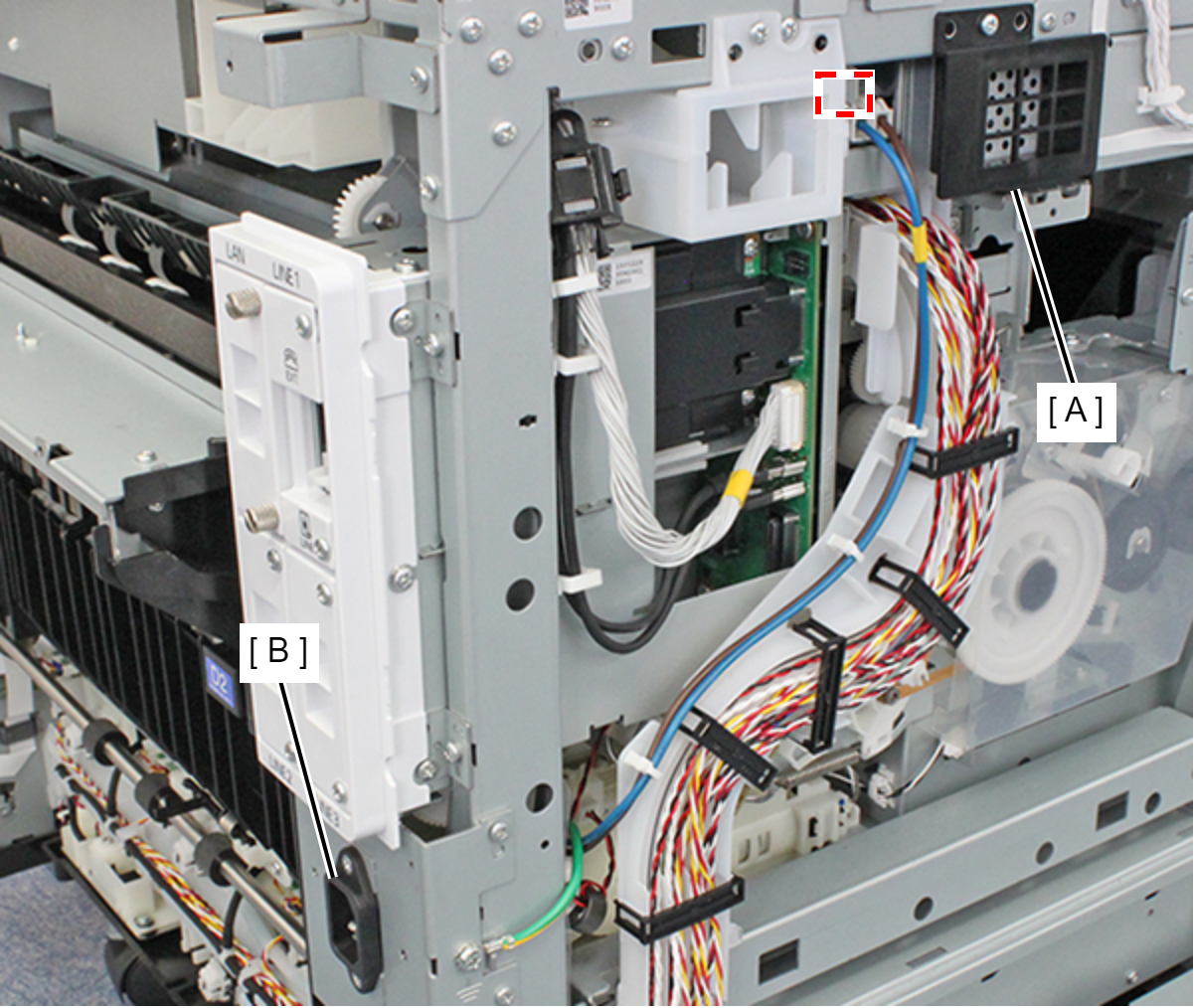

2. Remove the Power Supply Unit Cable (B) from the Power Supply Unit (A) while releasing the hook.

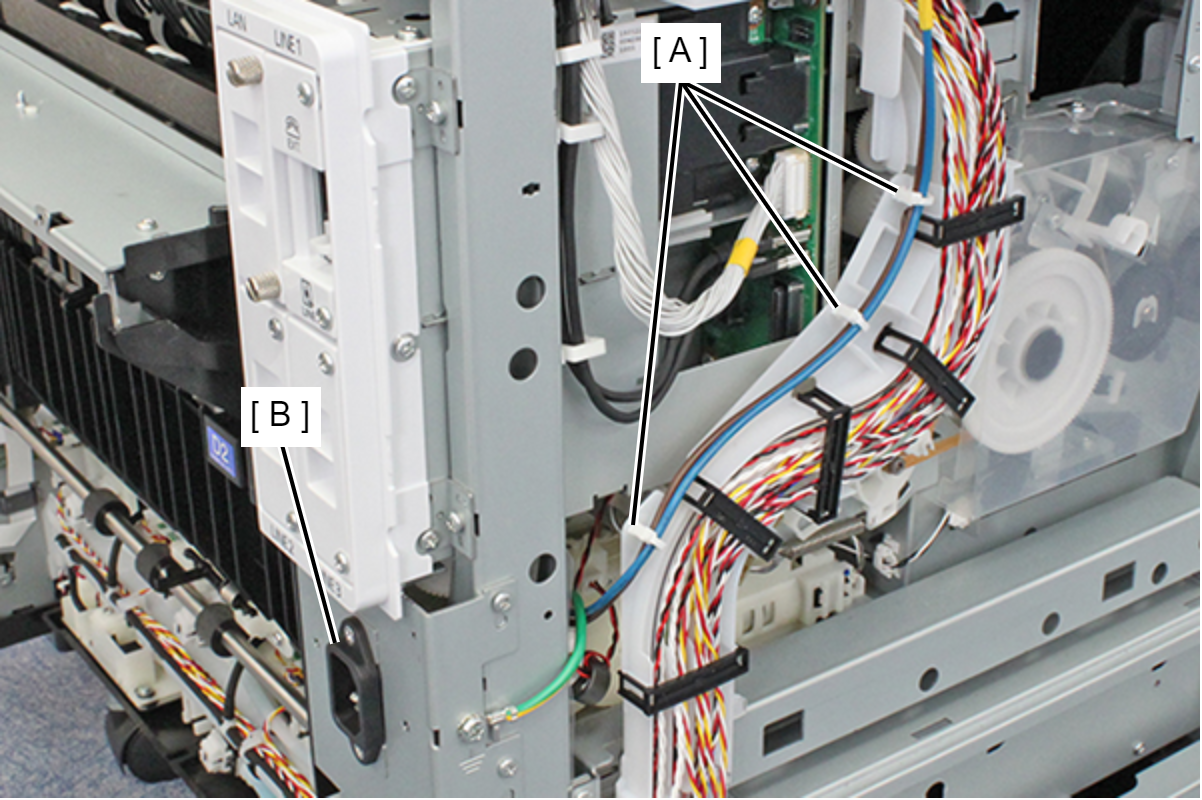

3. Release the Power Supply Unit Cable (B) from the three clamps (A).

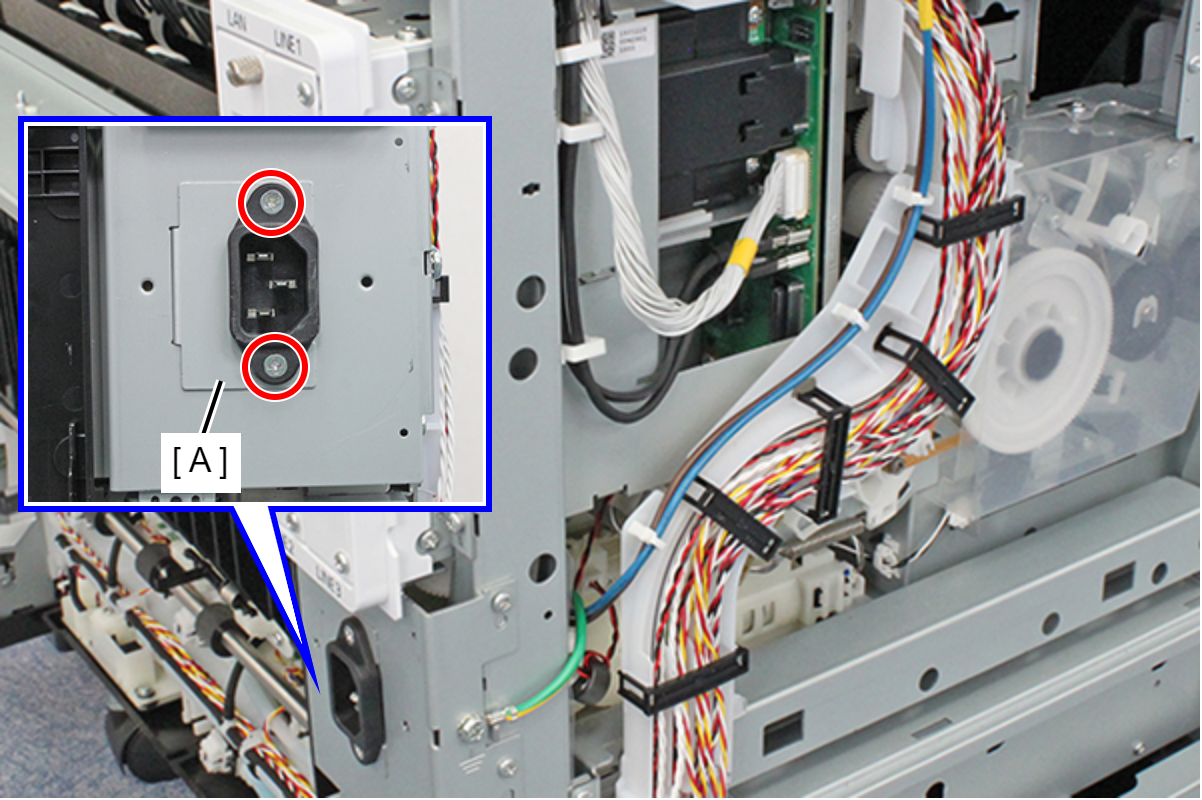

4. Remove the two screws and remove the AC Inlet Spacer (A).


   • : C.F.S-TITE-SCREW-3x8-F.ZN-3C

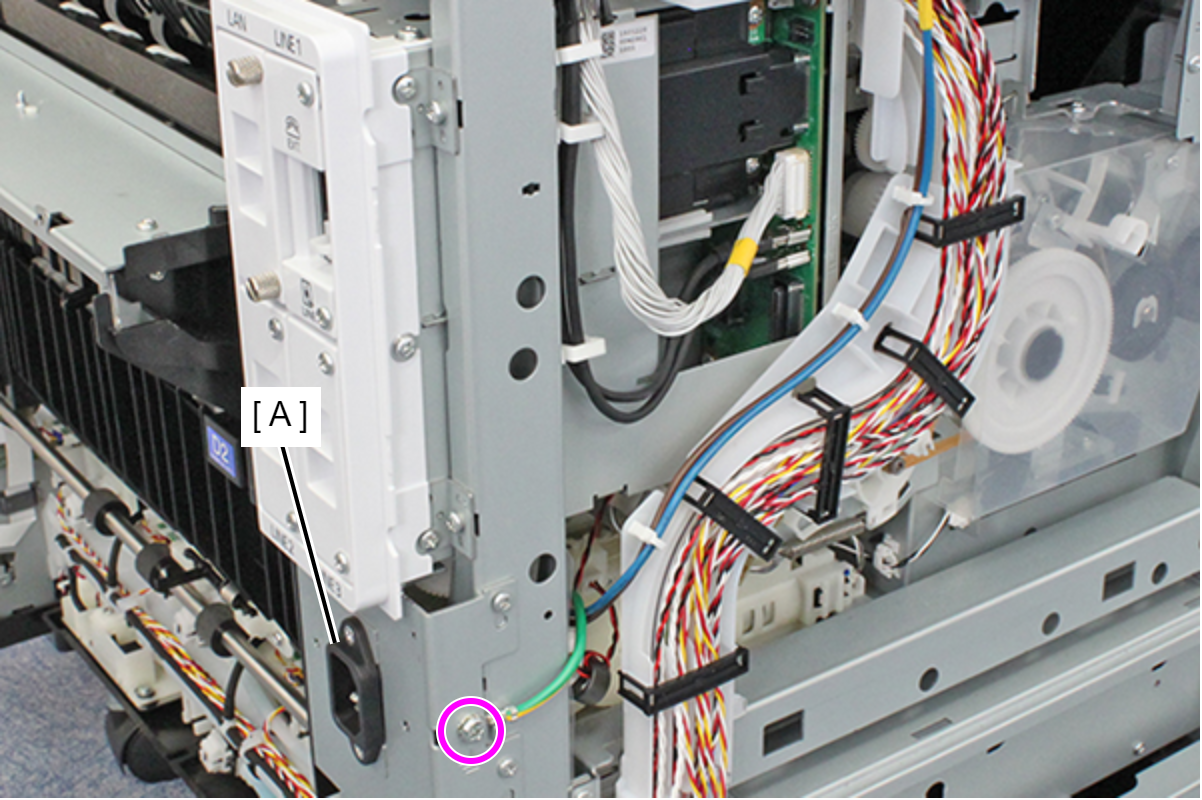

5. Remove the screw and remove the Power Supply Unit Cable (A).


   • : C.B.O-TITE-SCREW-4x5-F.ZN-3C
