106 INK Rest Disp Change

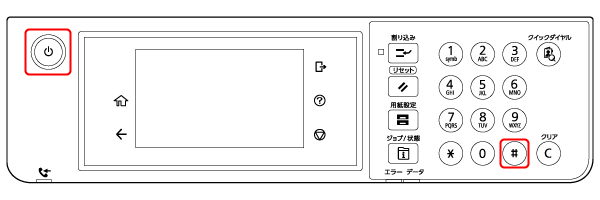

  1. With the status of Power OFF, press the following button while long pressing the [Power] button.

    • EM-C800 Series: [#] button
    • EP-C800 Series: [OK] button
  2. If the starting succeeds, the ID input screen will be displayed.
    • EM-C800 Series
    • EP-C800 Series

  3. Press the following button and enter the startup ID.

    • ID : 27337
    Operation EM-C800 Series EP-C800 Series
    Increase the input number by 1 [2] button

    [] button
    Reduce the input number by 1 [8] button

    [] button
    Move the input digit to the left [4] button

    [] button
    Move the input digit to the right [6] button

    [] button
    Complete input [#] button [OK] button
  4. The printer starts up in Ink Info Change Mode.





  5. Select [1.INK Rest Disp Change] and Press [#] or [OK] button.


  6. When the screen below appears, press the button that corresponds to the settings you want.

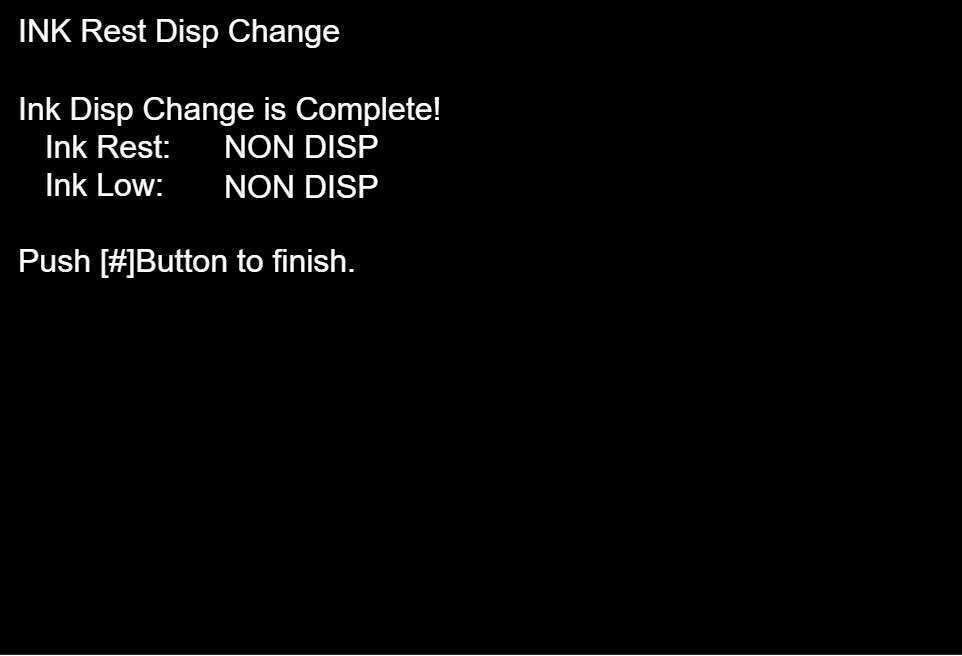

  7. After changing the setting, the complete screen below is indicated. After changing the setting, the complete screen below is indicated. Confirm the setting is set to “Ink Low:  NON DISP”, and finish by pressing the [#] or [OK] button.

      • EM-C800 Series



      • EP-C800 Series


Indicates Ink Low: Press [*] or [Back} button.
Does not indicate Ink Low: Press [Reset] or [STOP].
Exits without changing setting: Press [Power] button.

Setting value Overview
DISP Display the waring message of ink Remaining amount
NON DISP

Do not display the waring message of ink Remaining amount

*Reflected in Operation Panel of Main Unit、WebConfig、NetConfig、EDA、iPrint
NoChange Do not change configuration



Note / 補足

When 106 INK Rest Disp Change is set to NON DISP, the setting of 107 INK Low Disp Change is forcibly changed to NON DISP.

The available setting combinations are as follows.

Menu Default Setting Selectable Selectable Not selectable
106 INK Rest Disp Change DISP DISP NON DISP NON DISP
107 INK Low Disp Change DISP NON DISP NON DISP DISP
