# Housing Rear

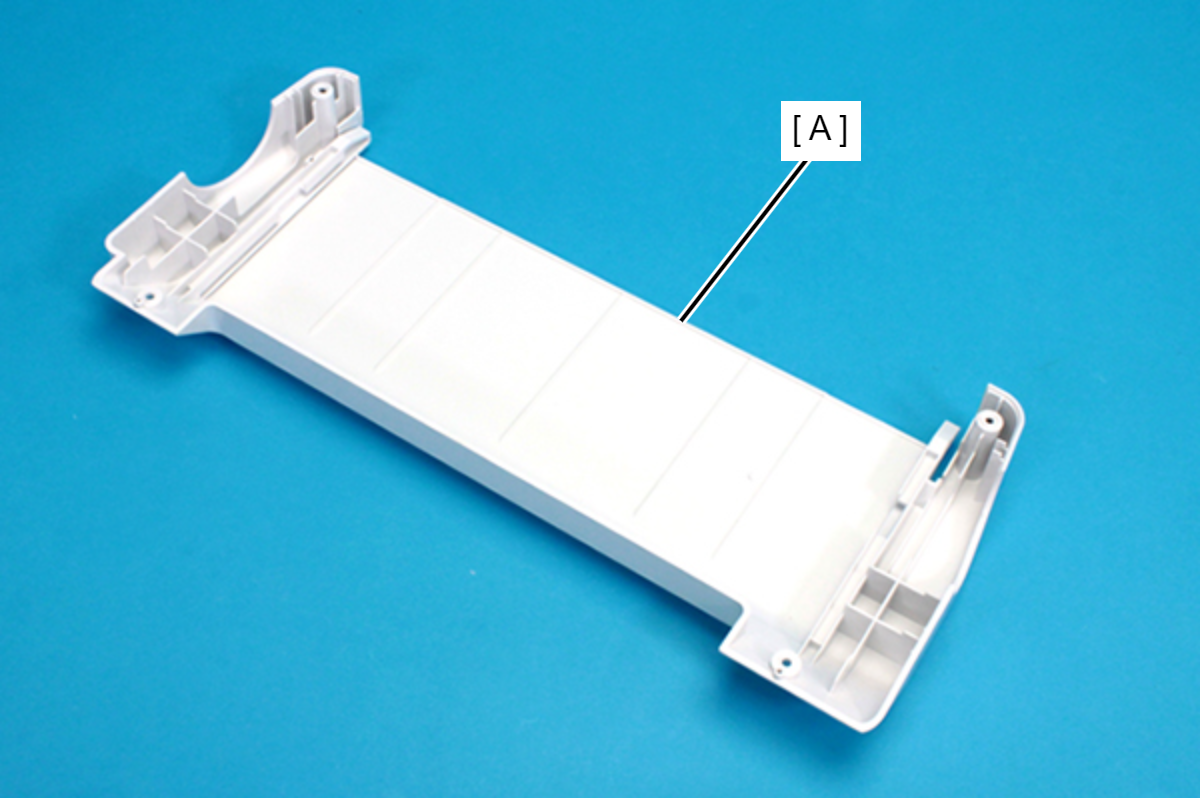

1. Remove the four screws, then remove the Rear Cover (Back) (A).

   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

   Assembly / 組み立て

   Attach the two dowels of the Rear Cover (Back) (A) to the positioning holes on the Housing Left (B) and Housing Right (C).

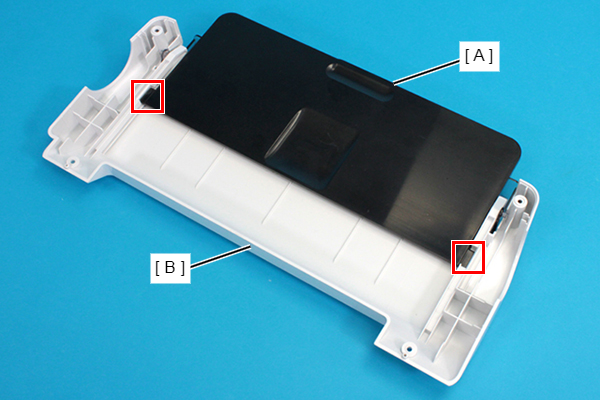

2. Release the two shafts of the ASF Cover (A) from the grooves on the Rear Housing (B), then remove the ASF Cover (A).

3. Release the two tabs of the Paper Support (A) from the grooves on the Rear Housing (B), then remove the Paper Support (A).

4. Remove the Housing Rear (A).
