C4 Cassette After Parts Replacement
Procedure
- Turn the power ON.
- Pull out the C4 cassette.

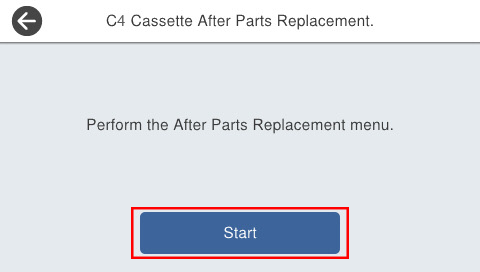

- Press [Start].

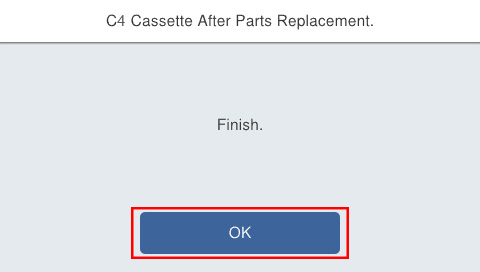

- Press [OK].
