30201 Motor

You can operate each part displayed on the menu and check its situation.

Menu list
Program No. Menu Name Judgment method Remarks
3020101 C1 ASF Motor Press [Start] and check the motor operation sound. ---
3020103 Rear ASF Solenoid Press [Start], and check the operation sound of the Solenoid and operation of the Rear ASF hopper/paper return lever. ---
3020105 CR Motor Press [Start] and check the motor operation sound. ---
3020106 PF Motor Press [Start] and check the motor operation sound. ---
3020107 IS Motor Press [Start] and check the motor operation sound. ---
3020108 Ink Supply Pump Press [Start] and check the motor operation sound. ---
Procedure
  1. Start the service support mode. (Starting Service Support Mode)

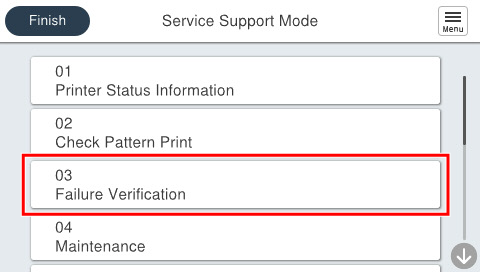

  2. Select [03 Failure Verification].

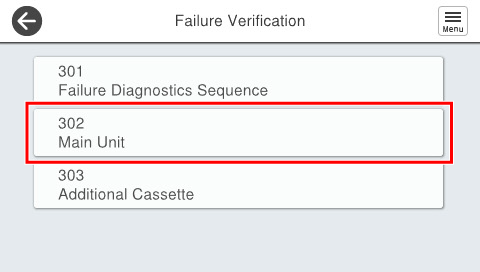

  3. Select [302 Main Unit].

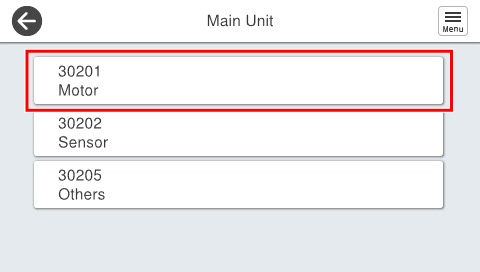

  4. Select [30201 Motor].

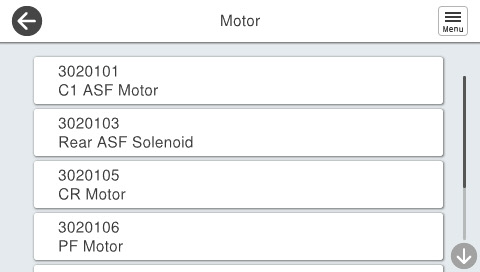

  5. Select the menu the user wishes to execute.

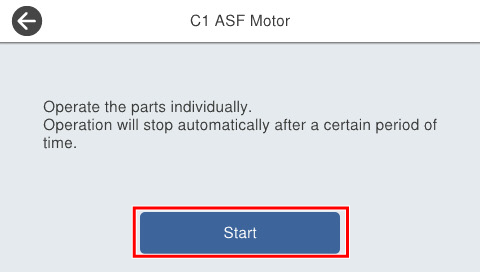

  6. Press [Start].
