# 70701 Paper feed confirmation

Check the paper passing of the main unit (blank paper passing). Settings such Feed Tray, Duplex Printing Available or Not, etc. can be changed.

#Procedure

1. Start the service support mode. (Starting Service Support Mode)

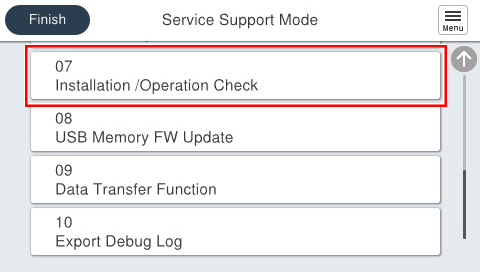

2. Select [07 Installation /Operation Check].　

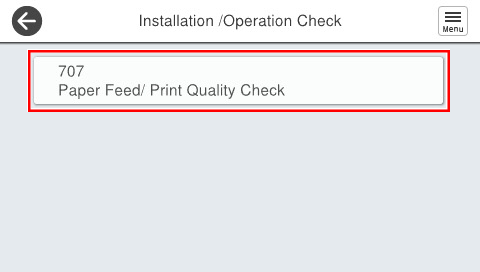

3. Select the [707 Paper Feed/ Print Quality Check].

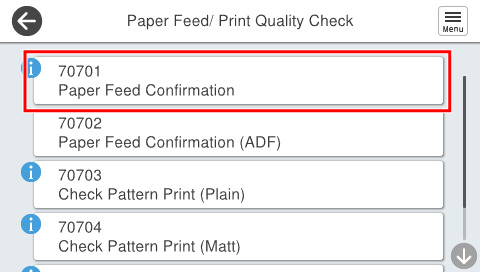

4. Select [70701 Paper Feed Confirmation].

5. Press each setting item button to make print settings.




   Setting Items	Choice	Remarks
   Feed Tray	C1, C2, C3, C4, Rear ASF	---
   Paper Type	Plain Paper	Setting change not possible
   Paper Size	A4 / Letter	---
   Duplex setting	1-sided, 2-sided	---

6. Press [Start].
