USB Interface Board

  1. Remove the four screws, then remove the Rear Cover (Back) (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    Assembly / 組み立て

    Attach the two dowels of the Rear Cover (Back) (A) to the positioning holes on the Housing Left (B) and Housing Right (C).
  2. Remove the two screws, then remove the Rear Top Cover (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  3. Open the ADF/SCN Unit and remove the three screws that secure the Housing Left (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  4. Lift the Housing Left (A) to release the two hooks on the front side of the Housing Left.
  5. Disengage two hooks on the rear side of the Housing Left (A), and remove the Housing Left (A).


    Assembly / 組み立て

    Insert the eight tabs on the Housing Left (A) to the positioning holes of the Housing Upper (B) and the RIPS Unit (C).

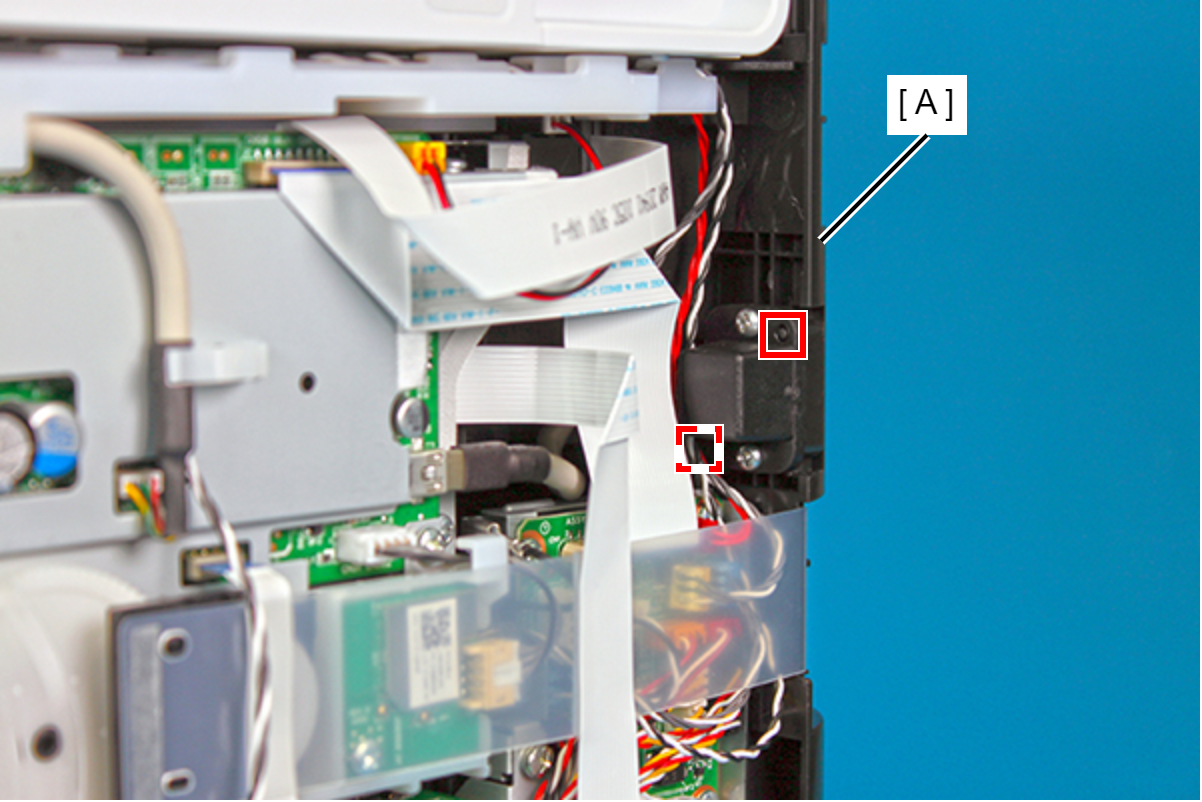

  6. Disconnect the cable from CN33 (A) of the Main Board.

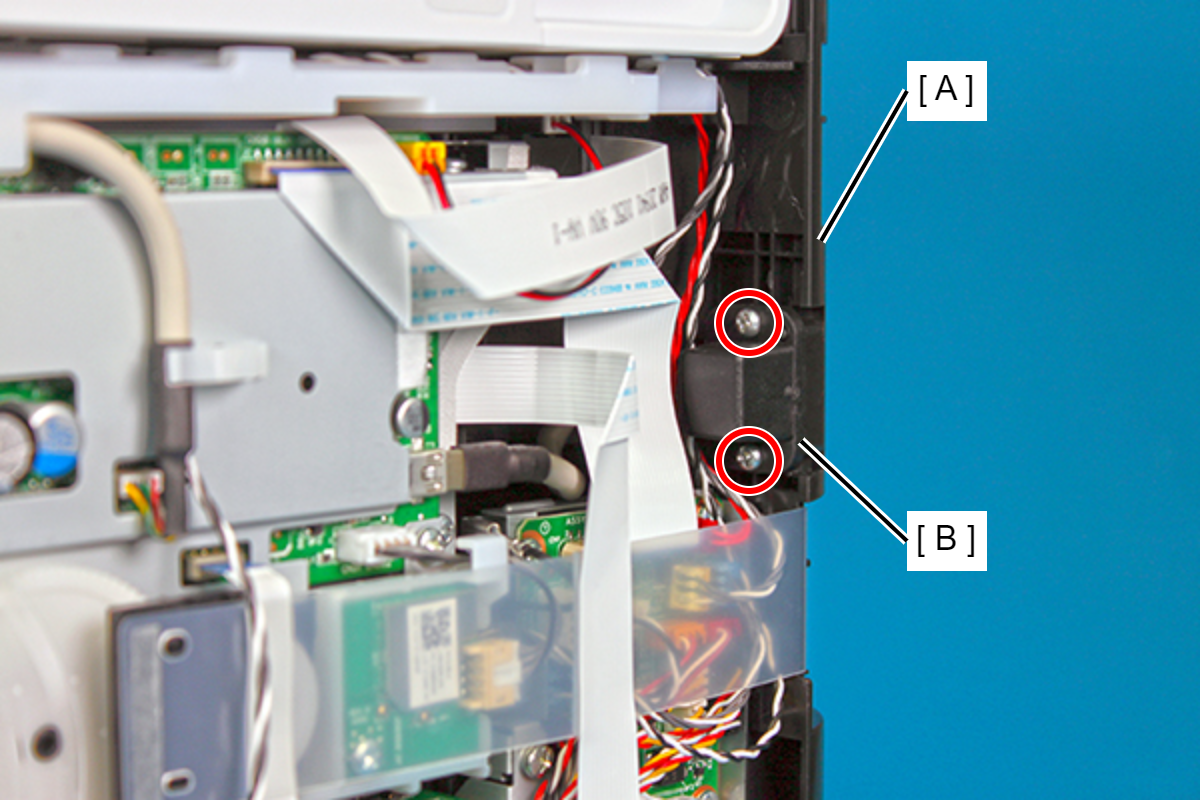

  7. Remove the two screws, then remove the USB Interface Board (B) from the Housing Front (A).


    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    Assembly / 組み立て

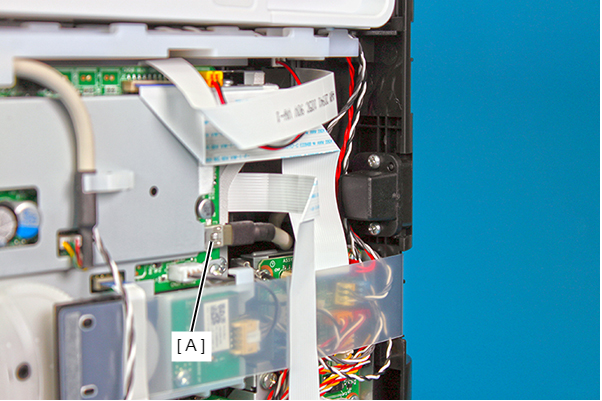

    Make sure to align the positioning holes on the USB Interface Board with the dowels on the Housing Front (A).
