# C1 Pickup Roller After Parts Replacement

#Procedure

1. Turn the power ON.

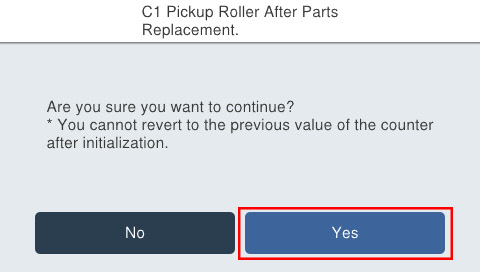

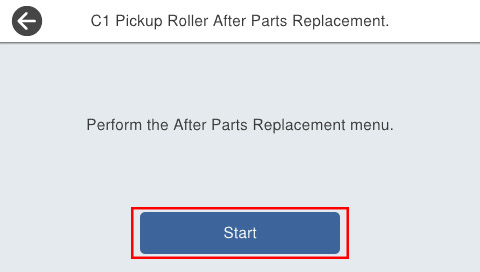

1. Press [Start].

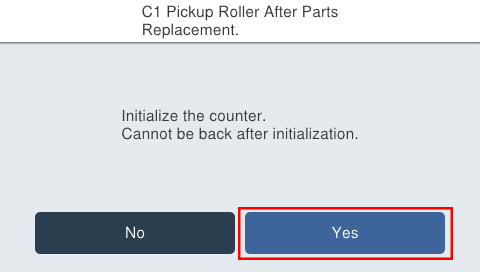

2. Press [Start].

3. Press [Start].

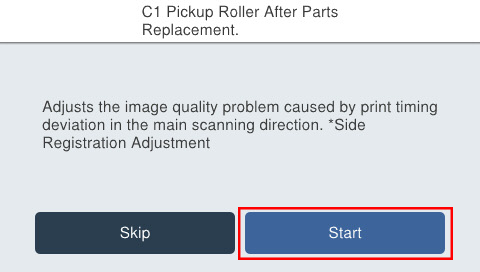

4. Press [Start].

5. If the following screen is displayed, press [Pattern print].


6. Press each setting item button to confirm print settings.




   Setting Items	Choice	Remarks
   Feed Tray	C1	Setting change not possible
   Paper Type	Plain Paper	Setting change not possible
   Paper Size	A4	Setting change not possible

7. Load paper in the selected feed tray and press [Start]. Adjustment patterns are printed on 1 sheet.

   • Adjustment pattern

8. Press [OK] on the following screen.

9. Check the adjustment pattern, and based on the judgment method, determine the adjustment value for the left end.

   Check Point / チェックポイント

   Adjustment value judgment method From the stepped patterns printed on the left end of the paper, select the numerical value that is 5 mm from the edge of the paper.

10. Press [Left] and enter the adjustment value.

11. Press [OK] on the upper right to complete the adjustment. The adjusted values are saved in the printer.




    Note / 補足

    If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.

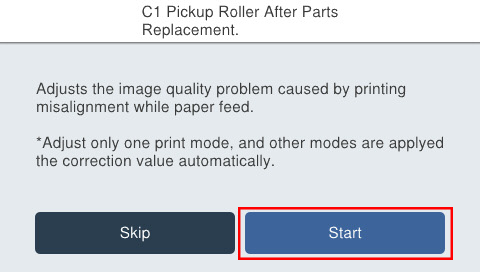

12. Press [Start].

13. If the following screen is displayed, press [Pattern print].


14. Press each setting item button to make print settings.



    Setting Items	Choice	Remarks
    Feed Tray	C1, C2, C3, C4, Rear ASF	---
    Paper Type	Plain Paper	Setting change not possible
    Paper Size	A4 / Letter	---

15. Load paper in the selected feed tray and press [Start]. Adjustment patterns are printed on 1 sheet.

    • Adjustment pattern

16. Press [OK] on the following screen.




17. Check the adjustment pattern and determine the #1 adjustment value based on the judgment method.

    Check Point / チェックポイント

    Adjustment value judgment method Select the value of the pattern with the fewest white lines and with no overlap with upper/lower blocks.

18. Press [#1] and enter the adjustment value.

19. Press [OK] on the upper right to complete the adjustment. The adjusted values are saved in the printer.




    Note / 補足

    If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.

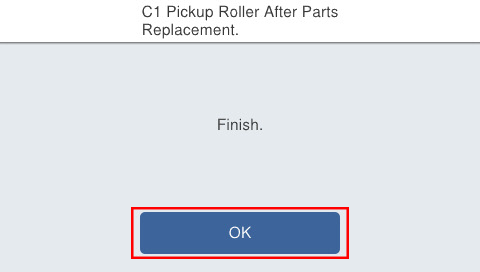

20. Press [OK].

21. If print quality does not improve after implementing this menu, Perform following adjustments in this order.
    1.60126 Cassette Print Position Adj.
    2.60132 PF Band Feed Adj.[When printing on paper other than plain paper] / 60133 PF Band Feed Adj. (Simple)[When printing on plain paper]
