# C3 Pickup Roller Before Parts Replacement

#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [05 Adjustment for Replacement Parts].

3. Select [502 Additional Cassette].

4. Select [50201 Paper Feed/Eject Related Parts].

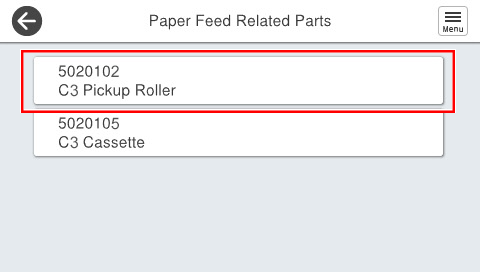

5. Select [5020102 C3 Pickup Roller].

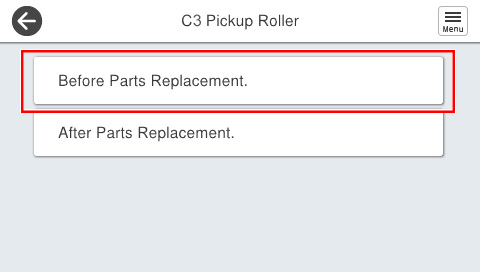

6. Select [Before Parts Replacement].

7. Press [Start].

8. Turn the power OFF.
   When the power of the product is turned on, the product starts in service support mode, and the [After replacement] screen of the C3 Pickup Roller is displayed.
