Drive Gear Assy After Parts Replacement
Procedure
- Turn the power ON.
- Pull out the C1 cassette.

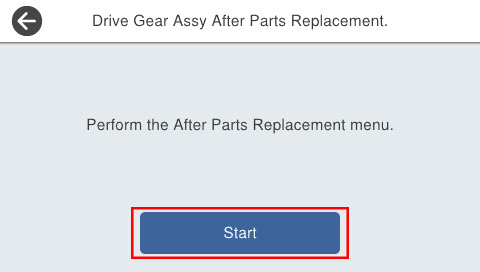

- Press [Start].

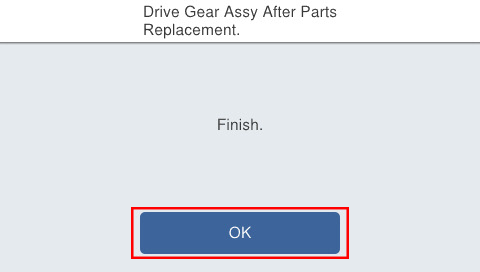

- Press [OK].
