Options

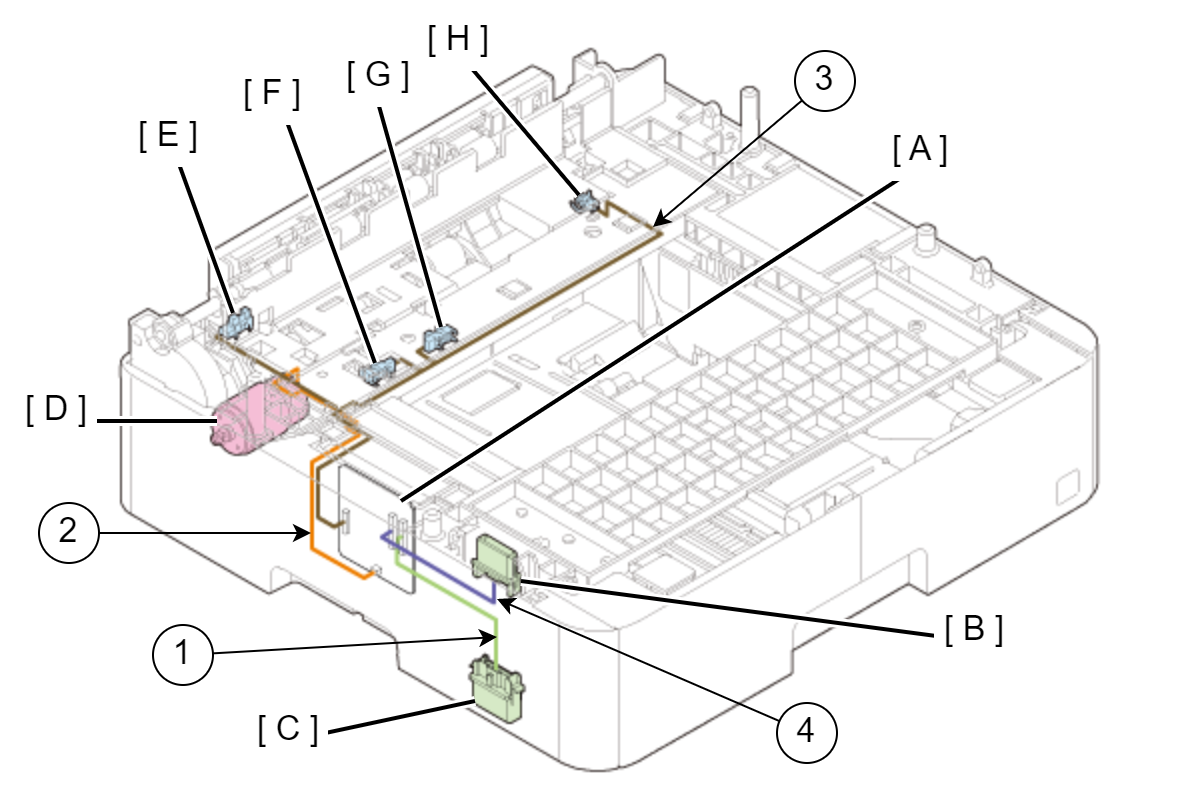

| Cable No. | Connector | |
|---|---|---|
| 1 | Optional Paper Cassette Main Board Assy (A) (CN2) | Drawer Connector (C) |
| 2 | Optional Paper Cassette Main Board Assy (A) (CN13) | ASF Motor (D) |
| 3 | Optional Paper Cassette Main Board Assy (A) (CN7) | Feed Sensor(E) Hopper Position Sensor (F) Cassette Paper Detection Sensor (G) Cassette Detection Sensor (H) |
| 4 | Optional Paper Cassette Main Board Assy (A) (CN1) | Drawer Connector (B) |

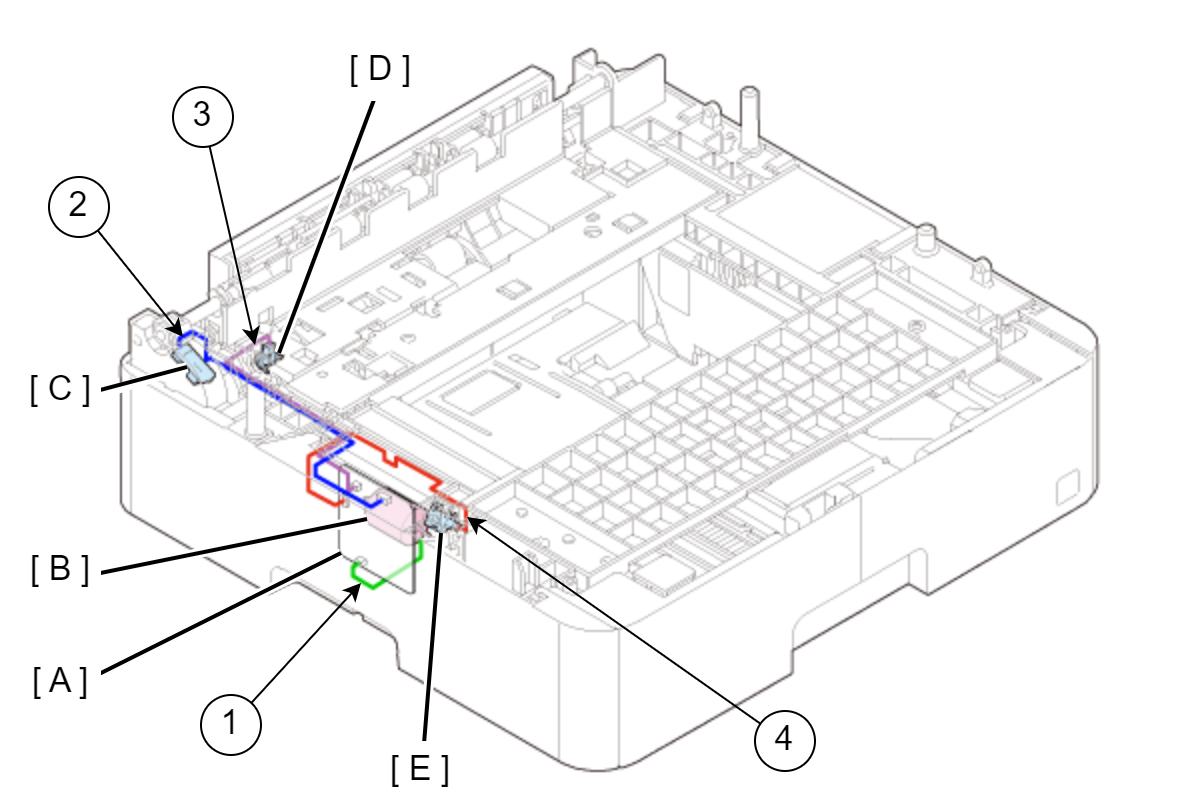

| Cable No. | Connector | |
|---|---|---|
| 1 | Optional Paper Cassette Main Board Assy (A) (CN12) | Lift Motor (B) |
| 2 | Optional Paper Cassette Main Board Assy (A) (CN6) | ASF Encoder (C) |
| 3 | Optional Paper Cassette Main Board Assy (A) (CN5) | Jam Cover Detection Sensor (D) |
| 4 | Optional Paper Cassette Main Board Assy (A) (CN4) | Lift Phase Sensor(E) |
