EP-C800 Series

No.	Name	Explanation
1	Operation Panel	Operates the printer. You can change the angle of the panel.
2	C1 Cassette	Loads paper.
3	C2 Cassette	Optional paper cassette unit. Loads paper.
4	C3 Cassette
5	C4 Cassette
6	Authentication Device Table-P2 (Optional)	Allows you to attach an authentication device supported by the printer. You can then log on to the printer by holding an authentication card over the printer.

No.	Name	Explanation
1	Paper tray cover	Prevents foreign substance from entering the printer. Usually keep this cover closed.
2	Edge guides	Feeds the paper straight into the printer. Slide to the edges of the paper.
3	Paper support	Supports loaded paper.
4	Paper tray (B)	Loads paper.
5	Eject Tray	Holds the ejected paper.
6	Edge guides	Feeds the paper straight into the printer. Slide to the edges of the paper.
7	Paper cassette	Loads paper.

No.	Name	Explanation
1	Printer cover (J)	Open when removing jammed paper inside the printer.
2	Printhead	Fires ink.
3	Ink Pack Tray	Sets an ink supply unit.
4	Ink cover (A)	Open when replacing ink supply units.
5	Cover lock	Locks the ink cover.

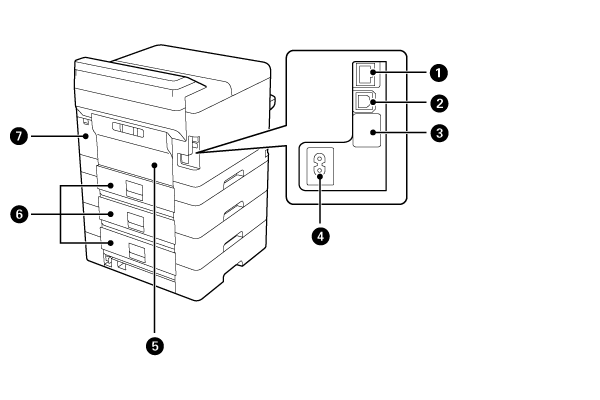

No.	Name	Explanation
1	LAN port	Connects a LAN cable.
2	USB port	Connects a USB cable to connect with a computer.
3	USB port	USB port for future use. Do not remove the sticker.
4	AC inlet	Connect the power cable.
5	Rear Cover (D)	Open when removing jammed paper.
6	Rear cover (E)	Open when removing jammed paper.
7	Maintenance Box Cover(H)	Open when replacing the maintenance box.

No.	Explanation
1	Turns the printer on or off.
2	Displays the home screen.
3	Displays the Paper Setting screen. You can select the paper size and paper type settings for each paper source.
4	Stops the current operation.
5	Applies to a variety of functions depending on the situation.
6	Selects the items. Press OK to confirm your selection or run the selected feature.
7	Returns to the previous screen.
8	Flashes when the printer is processing data. It turns on when there are queued jobs.
9	Turns on or flashes when an error occurs.
