Rear Lower Cover Assy

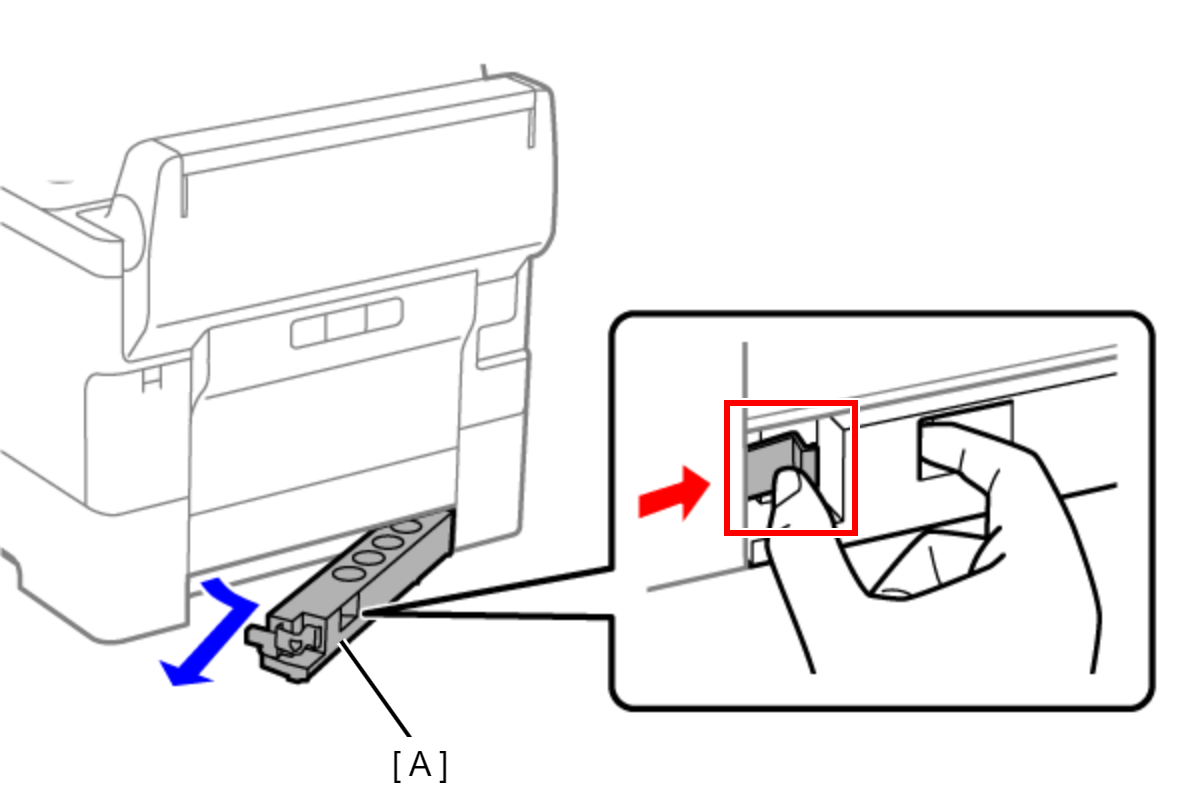

- Move the hook in the direction of the red arrow and remove the Rear Lower Cover Assy (A) in the direction of the blue arrow.
