# 60201 Shading Calibration (Back)

#Overview

Perform correction to reduce image unevenness in the CIS module on the ADF side.

#Required Tool

---

#Procedure

1. Start the service support mode. (Starting Service Support Mode)
2. Select [06 Individual Adjustment].

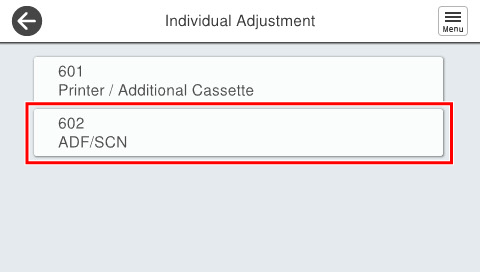

3. Select [602 ADF/SCN].

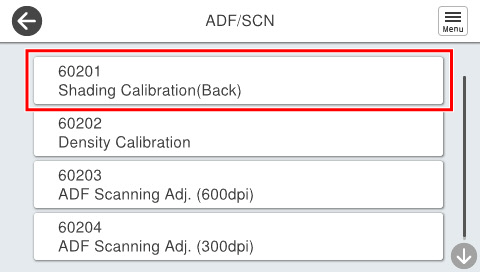

4. Select [60201  Shading Calibration (Back)].

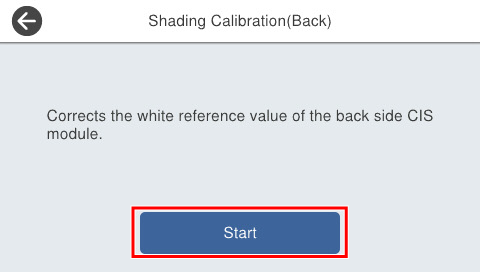

5. Press [Start].

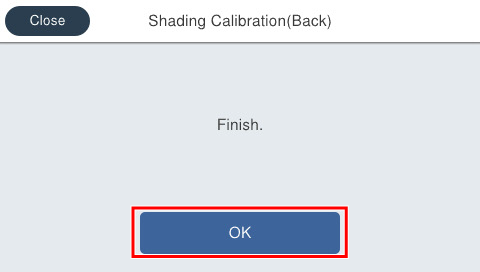

6. If the following screen is displayed, press [OK] to complete.
