# 60127 Rear ASF Print Position Adj.

#Overview

Use software to correct the print timing so that the main scanning direction print start position becomes the target value.

#Required Tool

• Plain Paper (A4)

#Procedure

1. Start the service support mode. (Starting Service Support Mode)
2. Select [06 Individual Adjustment].

3. Select [601 Printer/Additional Cassette].

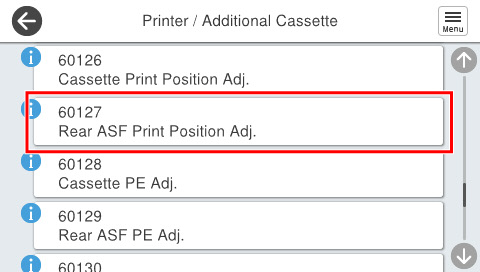

4. Select [60127 Rear ASF Print Position Adj.].

5. If the following screen is displayed, press [Pattern print].


6. Press each setting item button to confirm print settings.



   Setting Items	Choice	Remarks
   Feed Tray	Rear ASF	Setting change not possible
   Paper Type	Plain Paper	Setting change not possible
   Paper Size	A4	Setting change not possible

7. Load paper in the selected feed tray and press [Execution]. Adjustment patterns are printed on 1 sheet.

   • Adjustment pattern

8. Press [OK] on the following screen.




9. Check the adjustment pattern, and based on the judgment method, determine the adjustment value for the left end.

   Check Point / チェックポイント

   Adjustment value judgment method From the stepped patterns printed on the left end of the paper, select the numerical value that is 5 mm from the edge of the paper.

10. Press [Left end] and enter the adjustment value.

11. Press [OK] on the upper right to complete the adjustment. The adjusted values are saved in the printer.


Note / 補足

If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.
