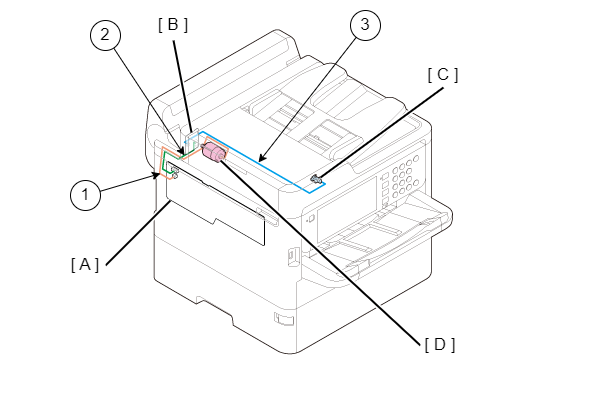

ADF/SCN related
| Cable No. | Connector | |
|---|---|---|
| 1 | Main Board (A) (CN612) | ADF Motor (D) |
| 2 | Main Board (A) (CN801) | ADF Relay Board (B) (CN109) |
| 3 | ADF Relay Board (B) (CN104) | ADF DOC Sensor (C) |

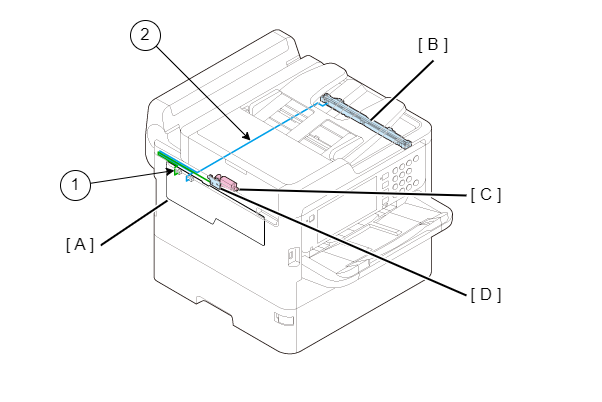

| Cable No. | Connector | |
|---|---|---|
| 1 | Main Board (A) (CN606) | SCN Motor (C) SCN Encoder (D) |
| 2* | Main Board (A) (CN601) | CIS Module (B) |
*: FFC
