# ADF/SCN Unit Before Parts Replacement

#Procedure

1. Start the service support mode. (Starting Service Support Mode)
2. Select [05 Adjustment for Replacement Parts].

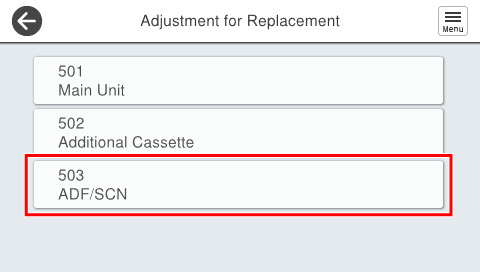

3. Select [503 ADF/SCN].

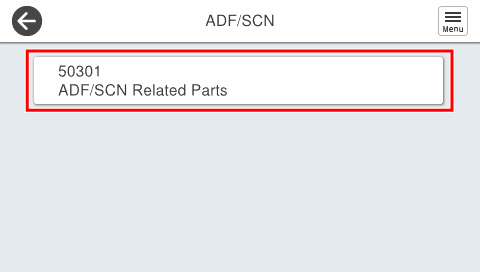

4. Select [50301 ADF/SCN Related Parts].

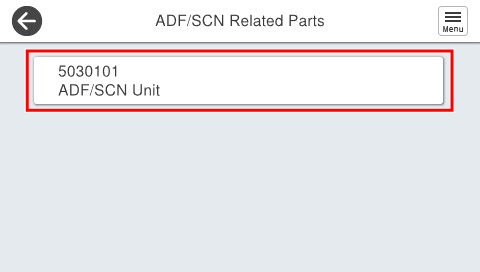

5. Select [5030101 ADF/SCN Unit].

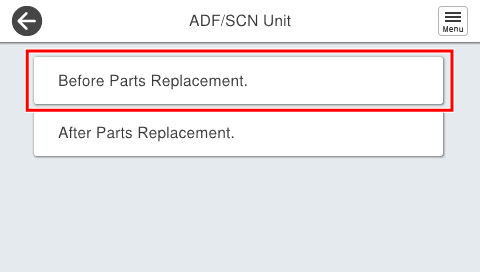

6. Select [Before Parts Replacement].

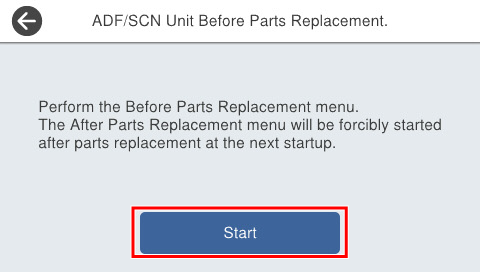

7. Press [Start].

8. Turn the power OFF.
   When the power of the product is turned on, the product starts in service support mode, and the [After Parts Replacement] screen of the ADF/SCN unit is displayed.
