Checks Before Installation

Check that the installation location has the sufficient space and can withstand the weight shown below. (For the detailed specifications, refer to "Product Descriptions".)

Dimensions when installing the printer
Items EM-C800 Series EP-C800 Series
Printer main unit only Number of optional paper cassettes Printer main unit only Number of optional paper cassettes
1 optional paper cassette 2 optional paper cassettes 3 optional paper cassettes 1 optional paper cassette 2 optional paper cassettes 3 optional paper cassettes
External dimensions When putting away Width 425 mm 425 mm
Depth 535 mm 535 mm
Height 413 mm 513 mm 613 mm 713 mm 413 mm 513 mm 613 mm 713 mm
When printing Width 425 mm 425 mm
Depth 578 mm 578 mm
Height 505 mm 605 mm 705 mm 805 mm 505 mm 605 mm 705 mm 805 mm
Weight 21.3 kg 25.8 kg 30.3 kg 34.8 Kg 17.6 kg 22.1 kg 26.6 kg 31.1 kg

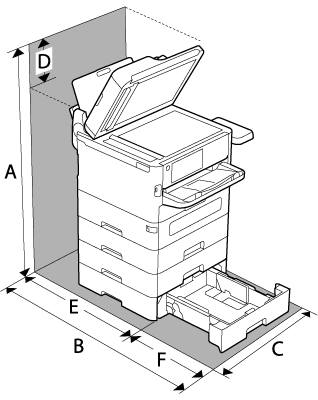

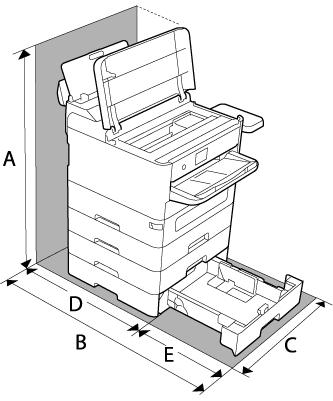

Installation Space
Enough Space

EM-C800 Series

EP-C800 Series
A 971.1 mm 899.4 mm
B 907.0 mm 907.0 mm
C 532.0 mm 532.0 mm
D 258.9 mm 475.5 mm
E 475.5 mm 431.5 mm
F 431.5 mm ---
Checks Before Installation

Depending on the ambient environmental conditions such as outside air, it may not be possible to maintain the operation quality of the product, so we recommend the operating within the temperature and humidity range guaranteed below.

Product
Items Operation guarantee Image guarantee Feeding paper reliability guarantee
Temperature 5~35℃ 10~35℃
Humidity 20 to 80% (Non condensing)


Ink pack
Items Operation guarantee Reliability when installing the Main Unit Reliability during packing transportation
Temperature 10~35℃ -20~40℃ -30~60℃
Humidity 20 to 80% (Non condensing) 5 to 85% (Non condensing)
Caution / 注意

  • Avoid the following places for installation. Doing so may result in malfunction or failure.

    • Places subjected to direct sunlight

    • Places subjected to a sudden change in temperature and/or humidity

    • Where fire is used

    • Where volatile substances exist

    • Location subjected to vibrations frequently

    • Places near to a TV or a radio

    • Places full of dust or dirt

    • Where water may be splashed over the printer

    • Places near to an air conditioner

    • Places near to a humidifier

  • Take an anti-static measure such as using an anti-static mat (commercially available) when working in a place where static electricity easily occurs.
