20104 CR・PF Pattern(PG1)　

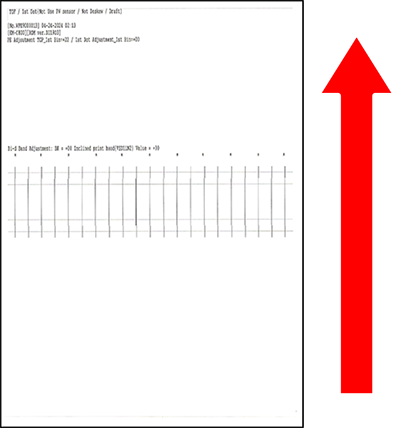

Program No. Program Name Specifications Pattern Image
(Paper Feed Direction: Arrow Direction)		 Target Image Quality Defect
20104 CR・PF Pattern(PG1)
  • Judgment method
    • Is the distance between the horizontal line and the top edge of the paper within 3±1.0 mm.
    • Is the distance between the vertical line and the left edge of the paper within 3±1.5 mm.
    • Are the upper and lower lines printed straightly inside the judgment are?
  • Paper size: A4/Letter
  • Paper type: Plain paper
  • Number of prints: 1

  • 1st dot position misalignment, paper skew
  • Printing start position misalignment
  • Print Head Inclination Adjust failure
Procedure
  1. Start service support mode. (Starting Service Support Mode)

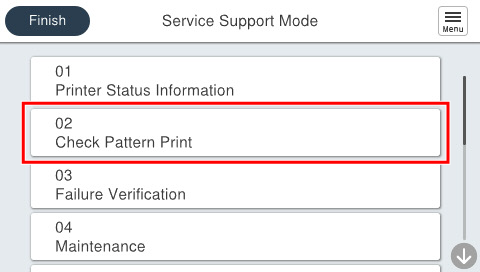

  2. Select [02 Check Pattern Print].

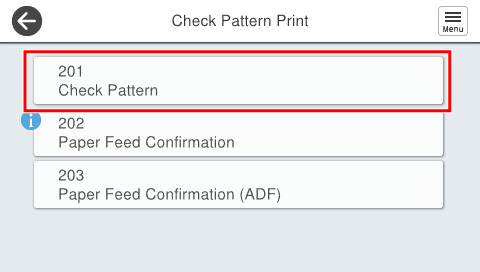

  3. Select [201 Check Pattern].

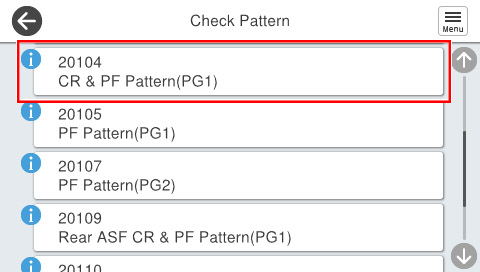

  4. Select [20104 CR/PF pattern (PG1)].

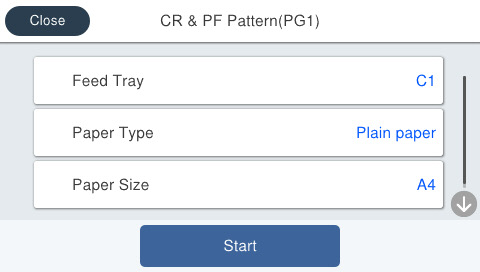

  5. Press each setting item button to make print settings.


    Setting Items Choice Remarks
    Feed Tray C1 Setting change not possible
    Paper Type Plain Paper Setting change not possible
    Paper Size A4 / Letter ---
  6. Load paper in the selected feed tray and press [Start].
  7. Check the output pattern status.
    (Refer to Remedy of When the Check Pattern is not appropriate “CR・PF Pattern (PG1)”.)
