Separation Pad
- Open the ADF cover (A).

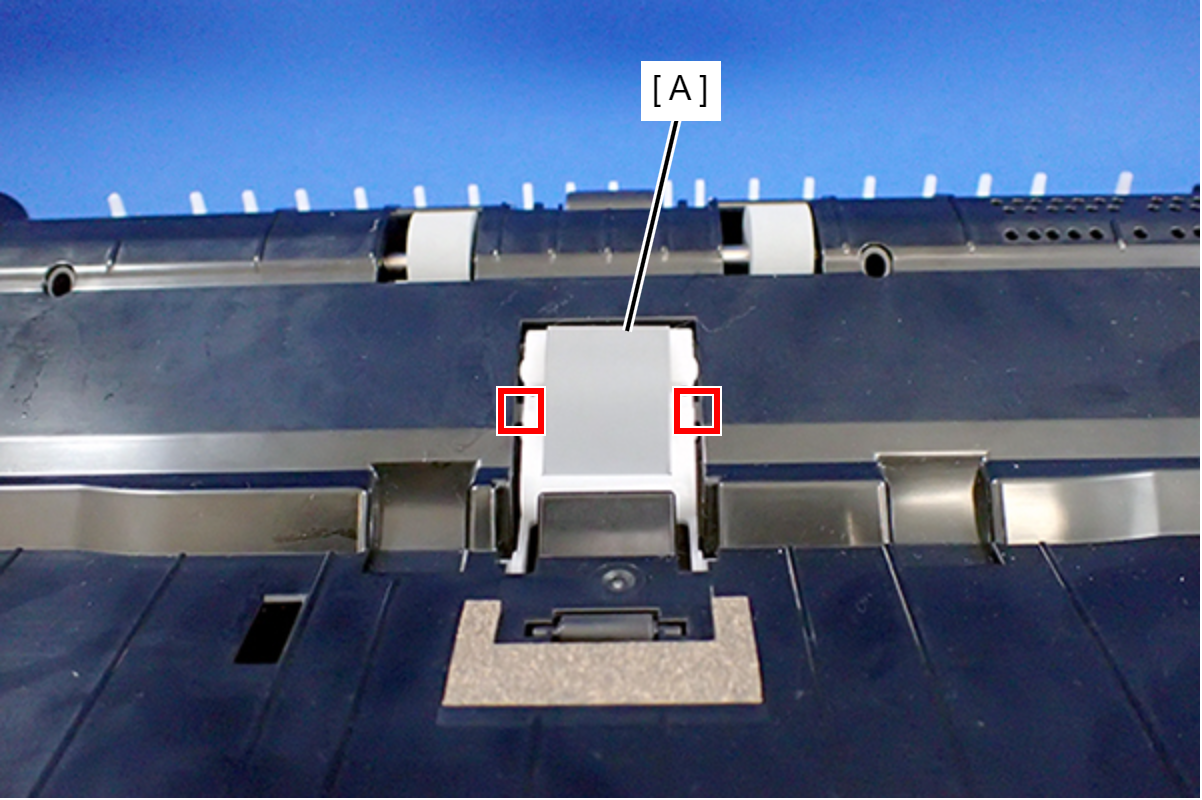

- Disengage two hooks of the Separation Pad (A).
- Disengage two dowels of the Separation Pad (A), then remove the Separation Pad (A).
