Electric circuit component related

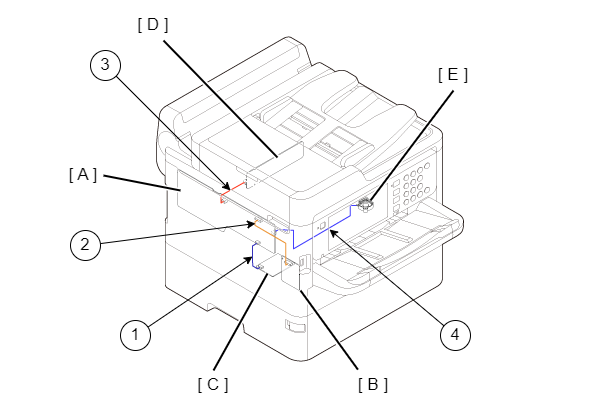

| Cable No. | Connector | |
|---|---|---|
| 1* | Main Board (A) (CN34) | PDL Board (C) |
| 2* | Main Board (A) (CN110) | Relay Board (B) (CN1) |
| 3 | Main Board (A) (CN74) | Power Supply Board (D) |
| 4 | Main Board (A) (CN3) | Speaker Assy (E) |
*: FFC

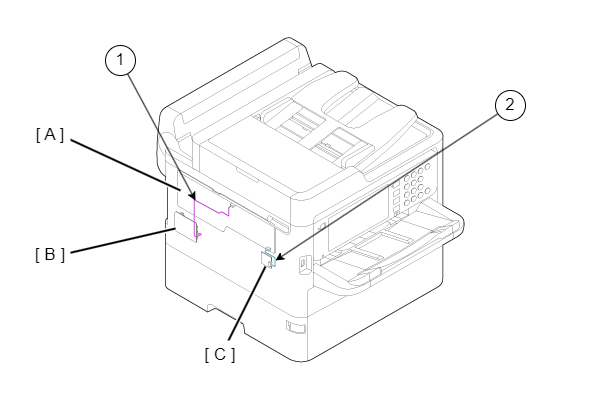

| Cable No. | Connector | |
|---|---|---|
| 1* | Main Board (A) (CN44) | FAX Board (B) |
| 2 | Main Board (A) (CN802) | Wi-Fi Board (C) |
*: FFC

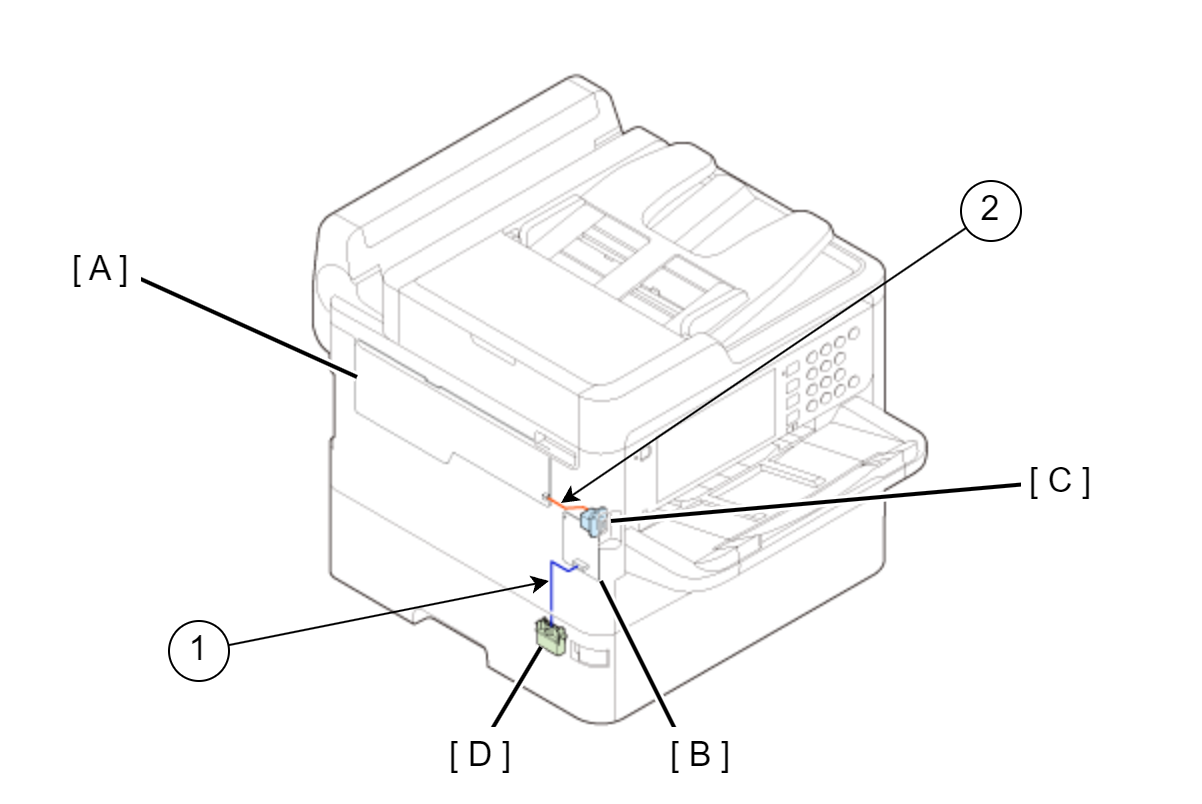

| Cable No. | Connector | |
|---|---|---|
| 1 | Relay Board (B) (CN2) | Drawer Connector (D) |
| 2 | Main Board (A) (CN33) |
USB Interface Board (C) |
