# ADF LD Roller　

1. Open the ADF cover (A).

2. Disengage the white dowel by pushing it with a flathead screwdriver (A) or similar tool.

3. Disengage the right dowel and then remove the ADF Cover Unit (A).

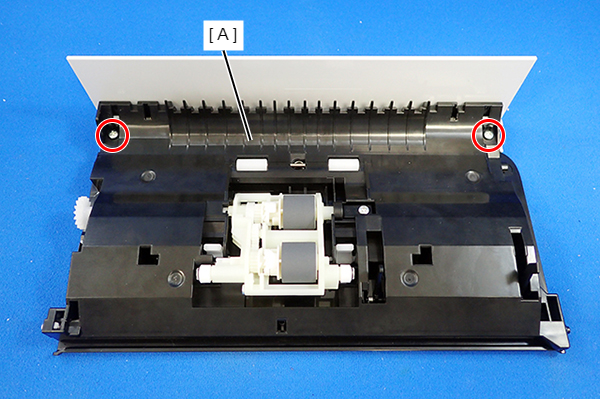

4. Remove the two screws that secure the ADF Upper Paper Guide (A).

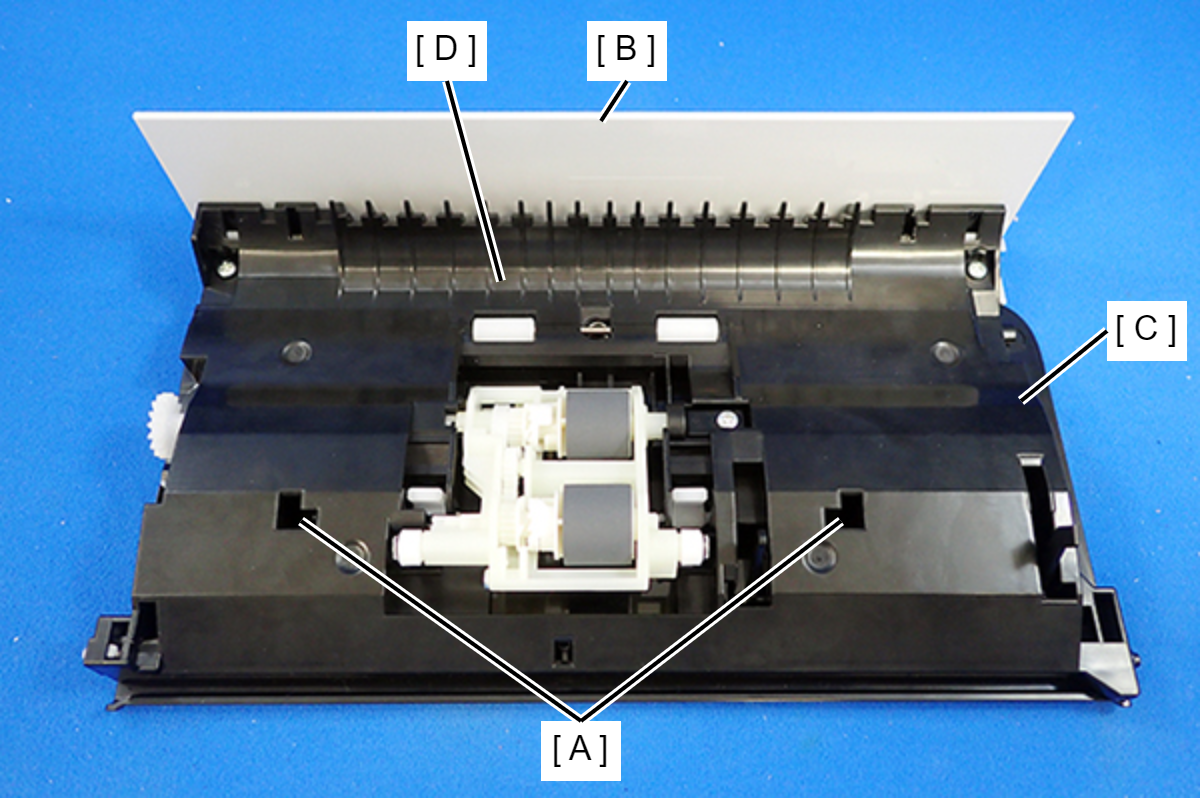

5. Disengage two hooks (A), and remove the ADF Upper Paper Guide (D) from the ADF Cover (B) and ADF Sub Cover (C).

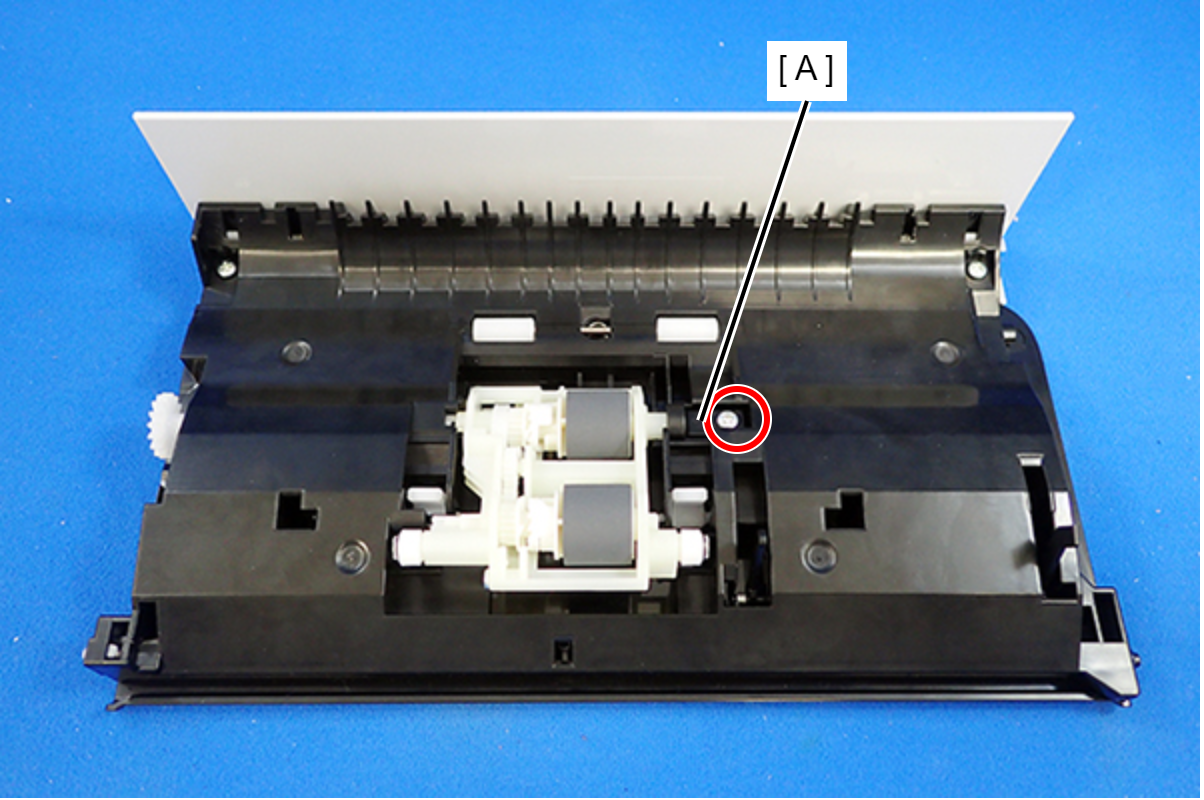

6. Remove the screw, then remove the Fixing Plate (A).

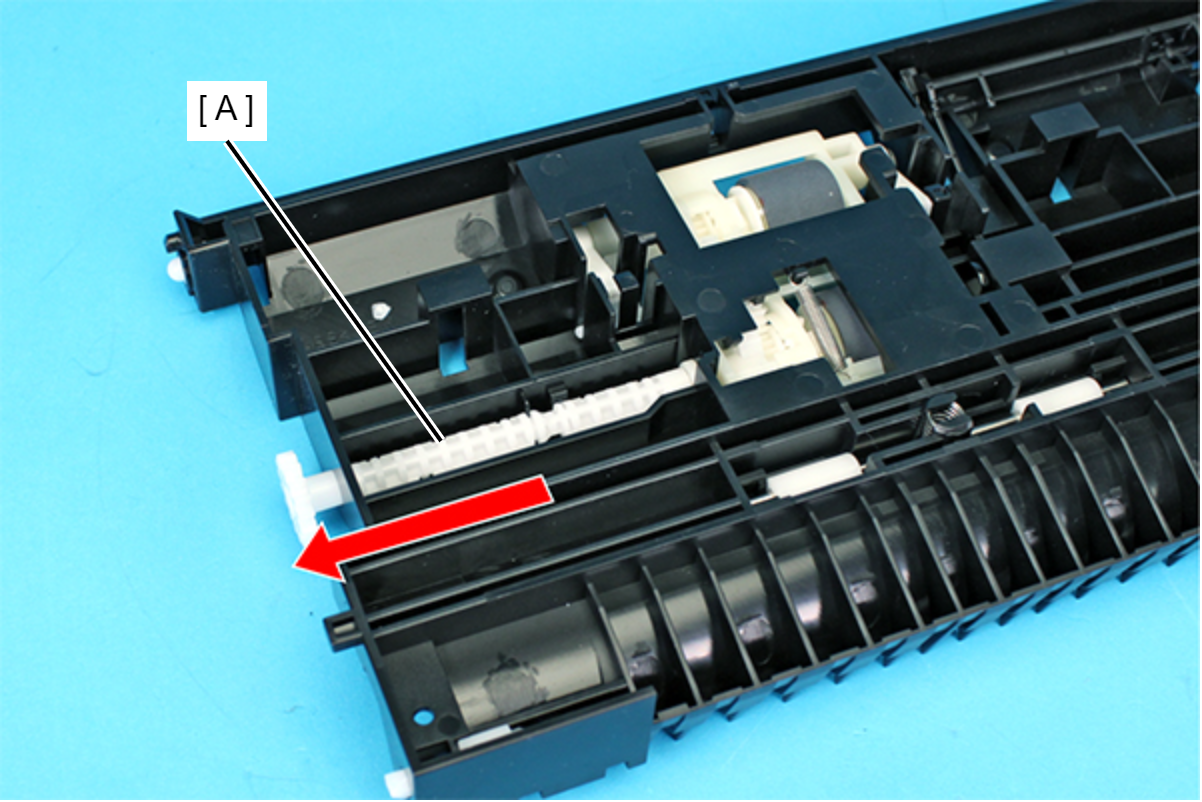

7. Pull the Paper Feed Roller Shaft (A) in the direction of the arrow.




   Assembly / 組み立て

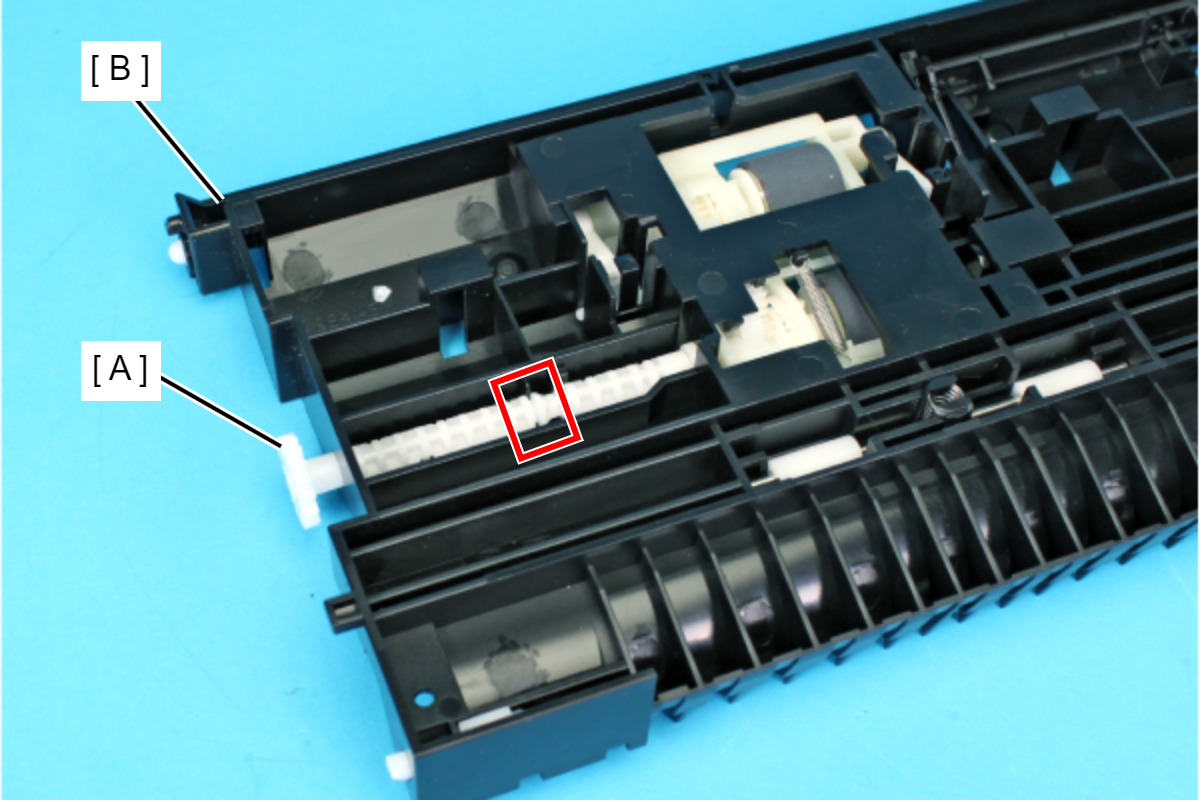

   Set the groove the Paper Feed Roller Shaft (A) on the bearing of the ADF Upper Paper Guide (B).

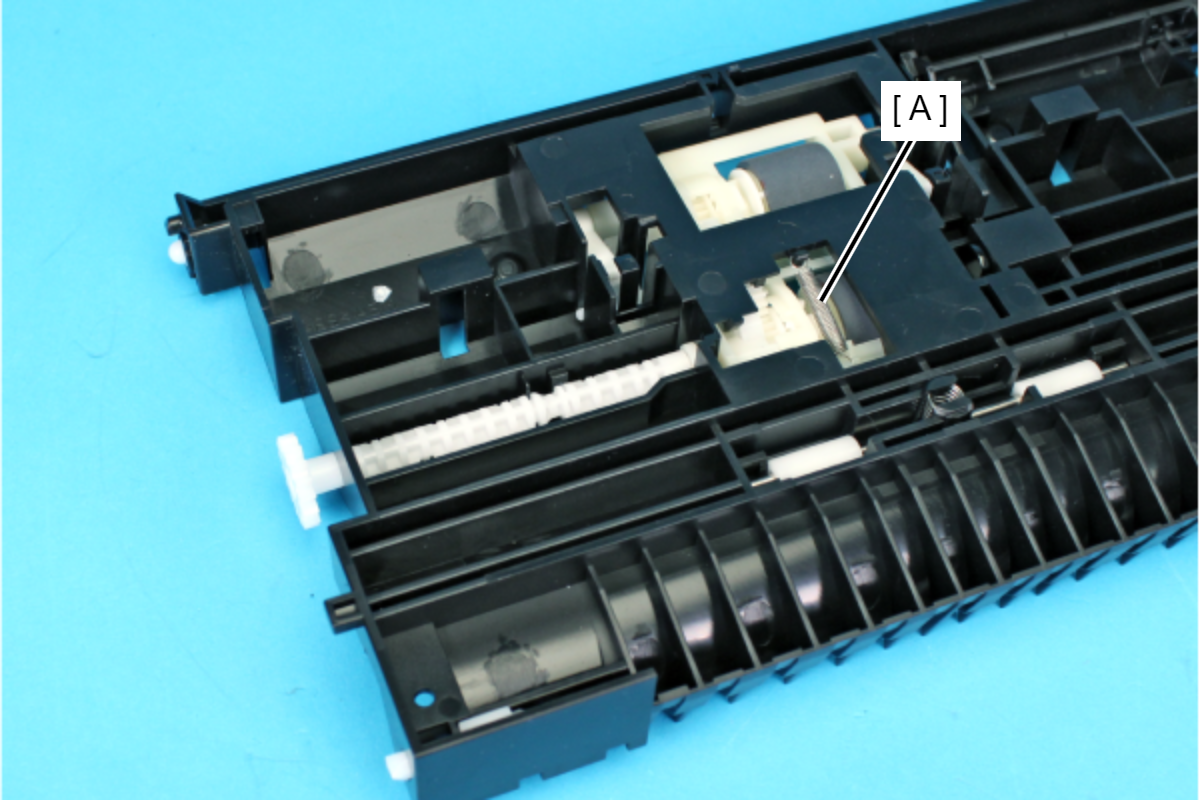

8. Remove the ADF LD Roller Spring (A).

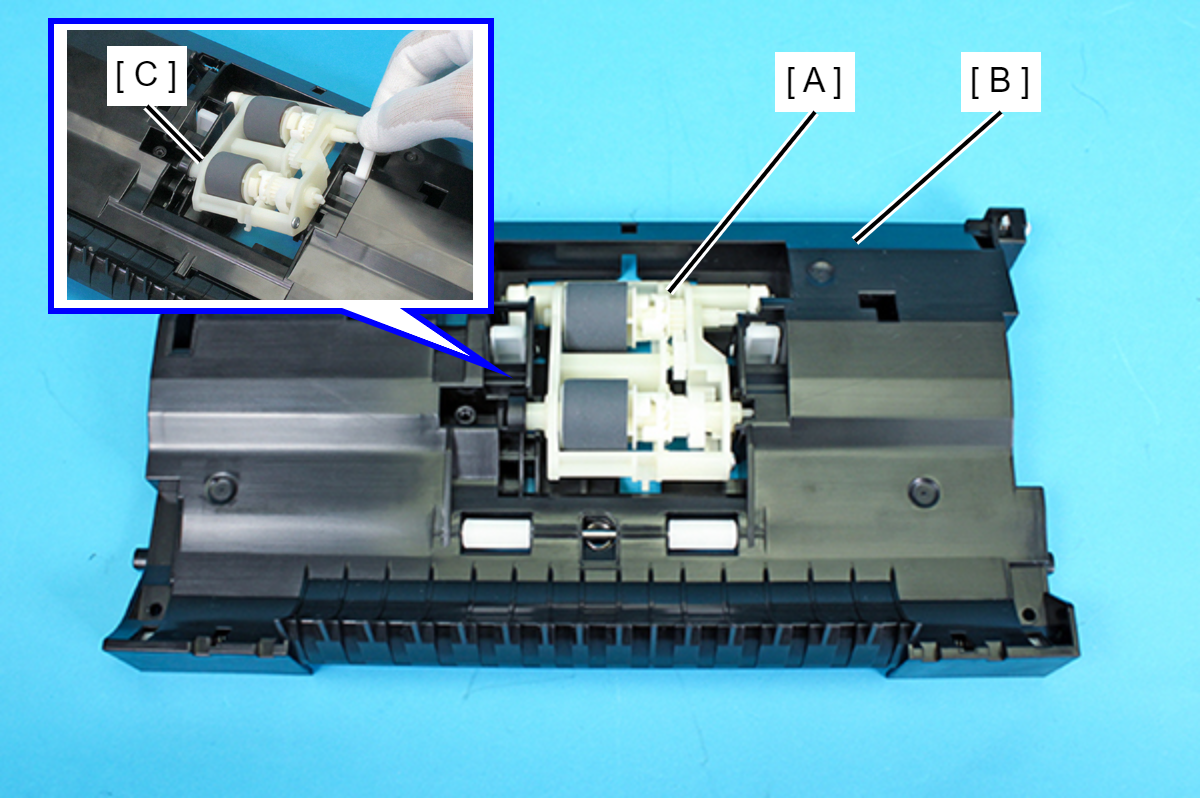

9. Lift the ADF LD Roller (A) to release the stopper (C) of the ADF LD Roller (A) from the ADF Upper Paper Guide (B), then remove the ADF LD Roller (A).


• • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

• • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
