# Rear ASF CR・PF Pattern (PG1)

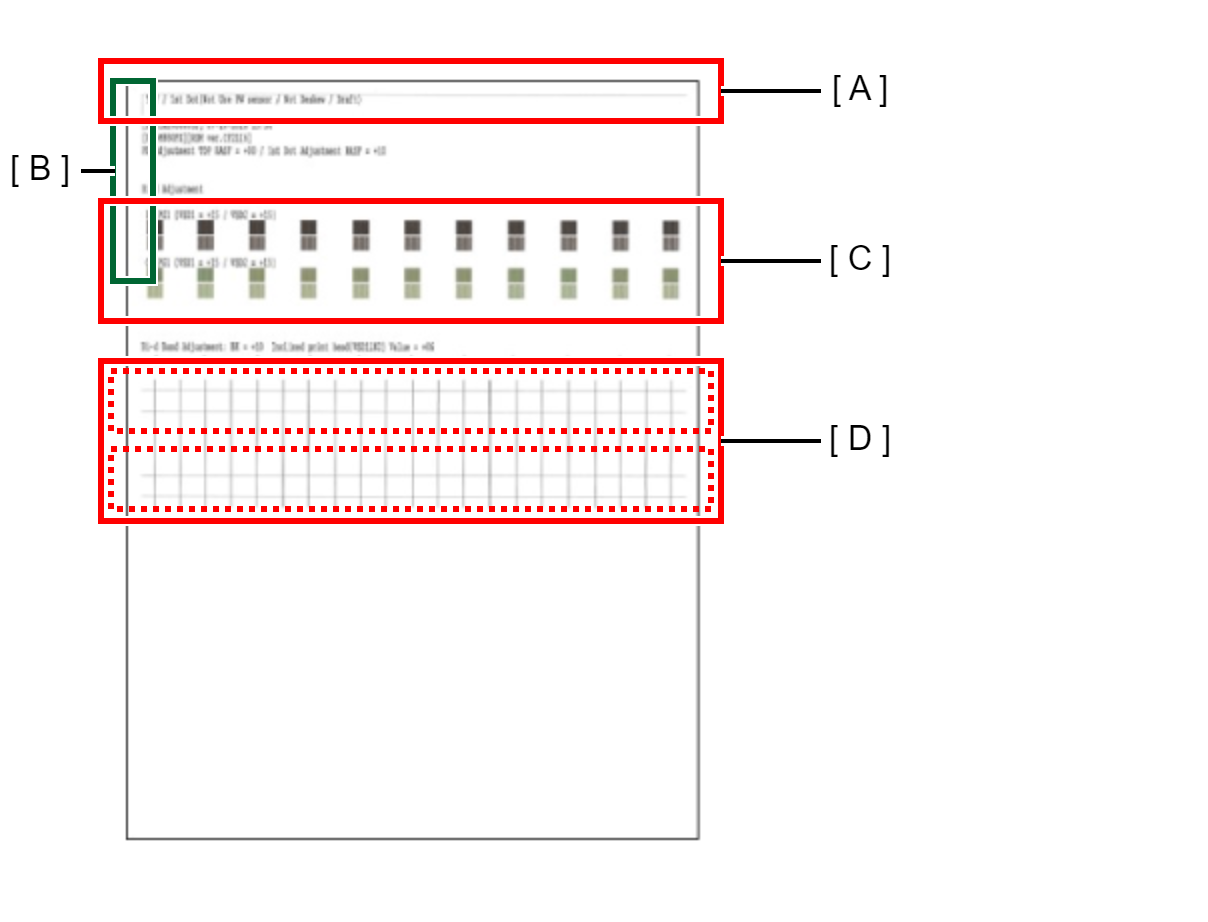

#Adjustment pattern

#Checking target

• A: 1st dot position misalignment, paper skew
• B: Printing start position misalignment
• C: Bi-d Adjust failure (condition: PG1)
• D: Bi-d Band Adjust failure (condition: PG1)

#Judgment method

• A: Is the distance between the horizontal line and the top edge of the paper within 3±1.0 mm.
• B: Is the distance between the vertical line and the left edge of the paper within 3±1.5 mm.
• C: Any overlapping of the upper and lower blocks or any white band in the center patch?
• D: Are the upper and lower lines printed straightly inside the judgment area (inside the dotted line)?

#Remedy

• A: Perform the Rear ASF PE Adj.
  • 60129 Rear ASF PE Adj.
• C: Perform following adjustments in this order.

1. 60127 Rear ASF Print Position Adj.
2. 60129 Rear ASF PE Adj.

• C: 60120 Bi-D Adj..

• D: 60122 Bi-D Band Adj..
