# Rear ADF Cover　

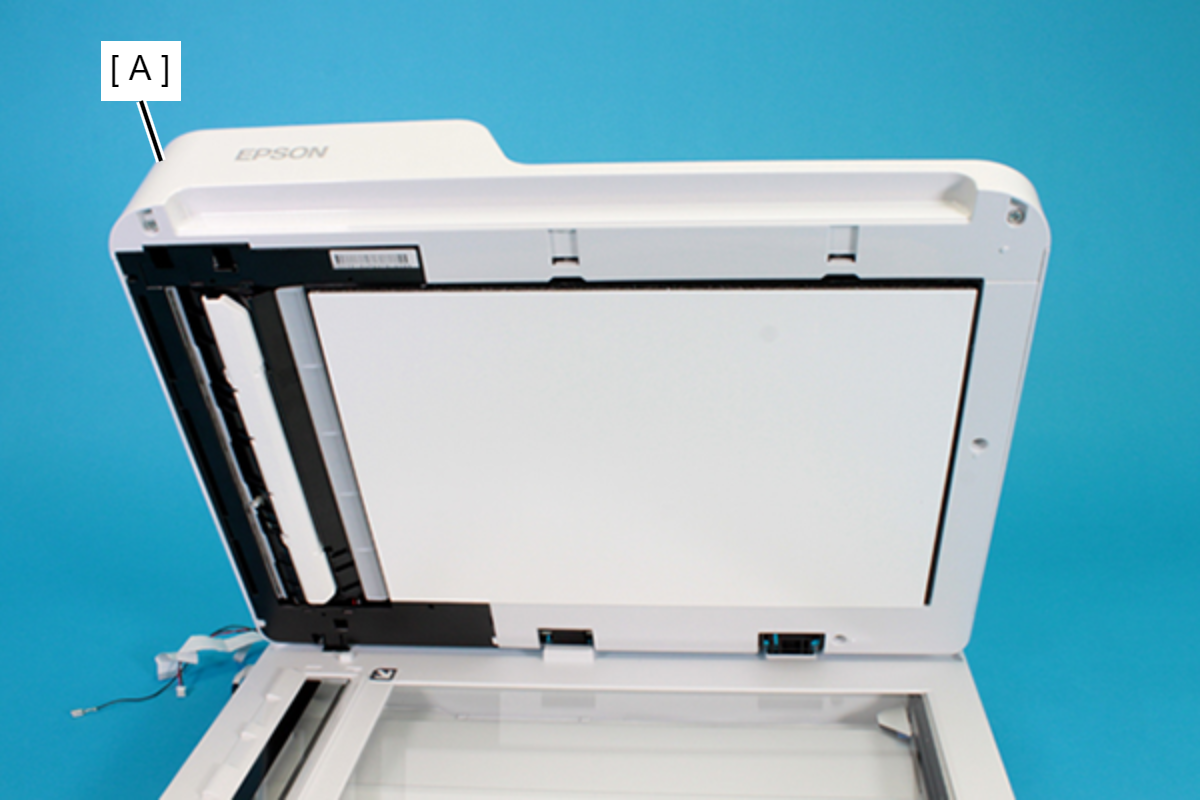

1. Open the ADF Unit (A).

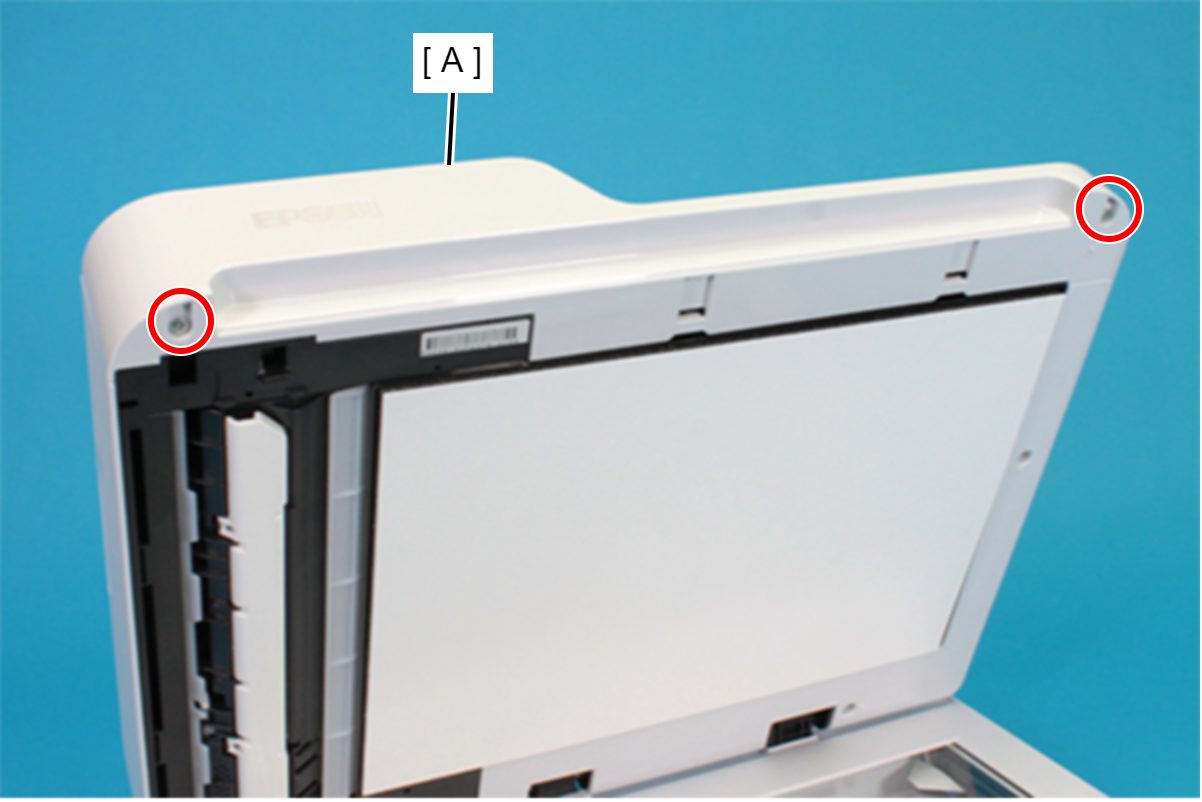

2. Remove the two screws securing the ADF Front Cover (A).

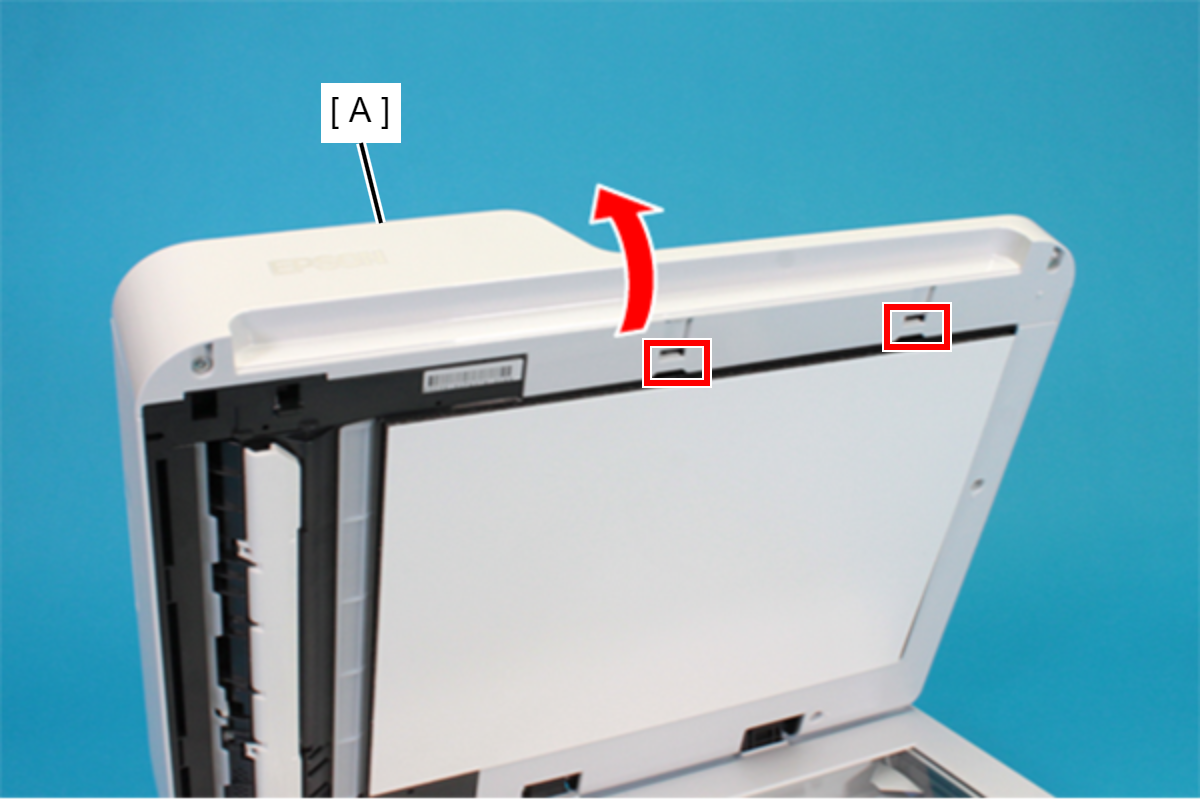

3. Disengage two hooks, then remove the ADF Front Cover (A) in the direction of the arrow.




   Assembly / 組み立て

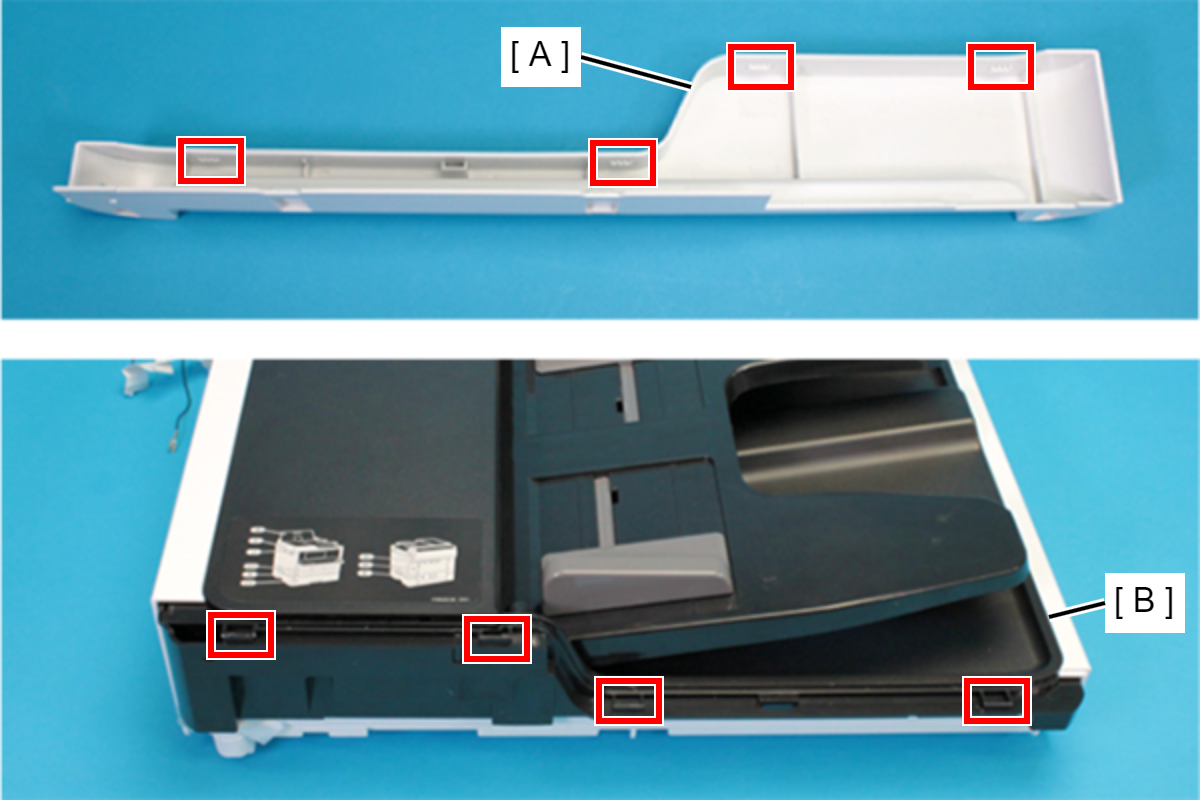

   Attach the four dowels of the ADF Front Cover (A) to the four holes on the ADF Base (B).

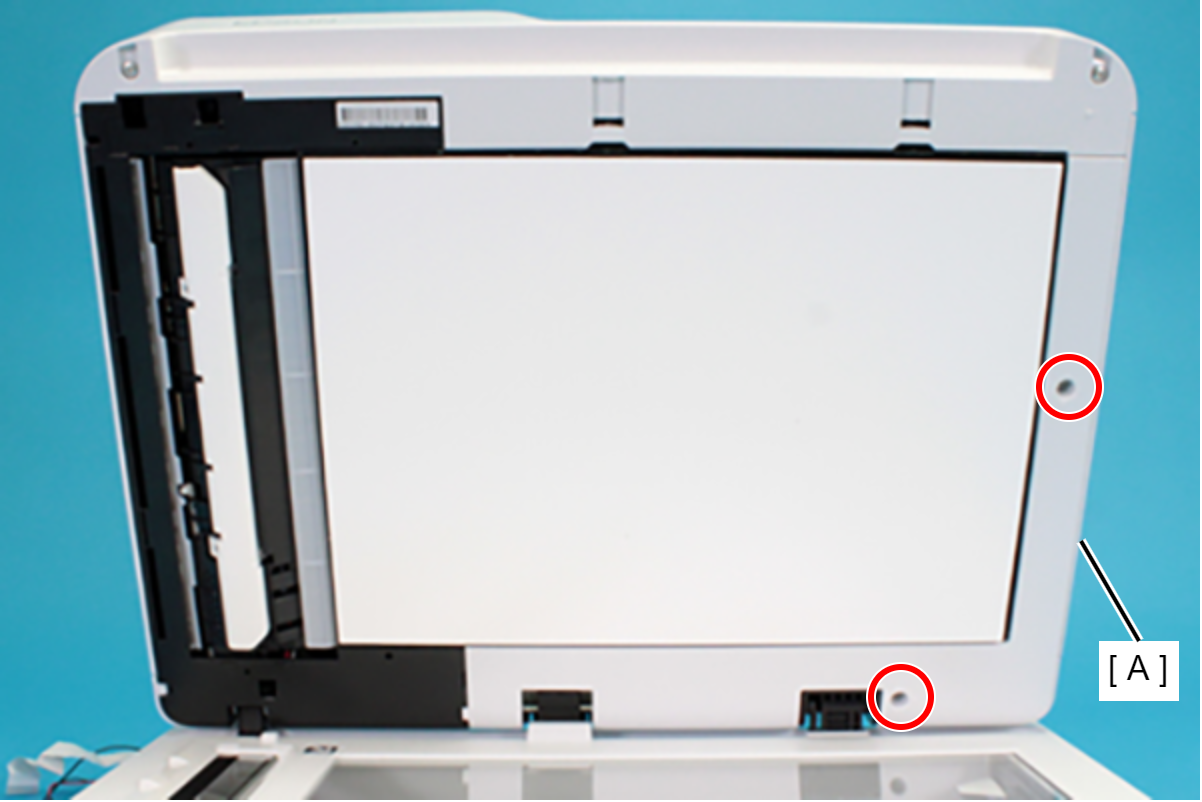

4. Remove the 2 screws, and then remove the ADF Lower Cover (A).

   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

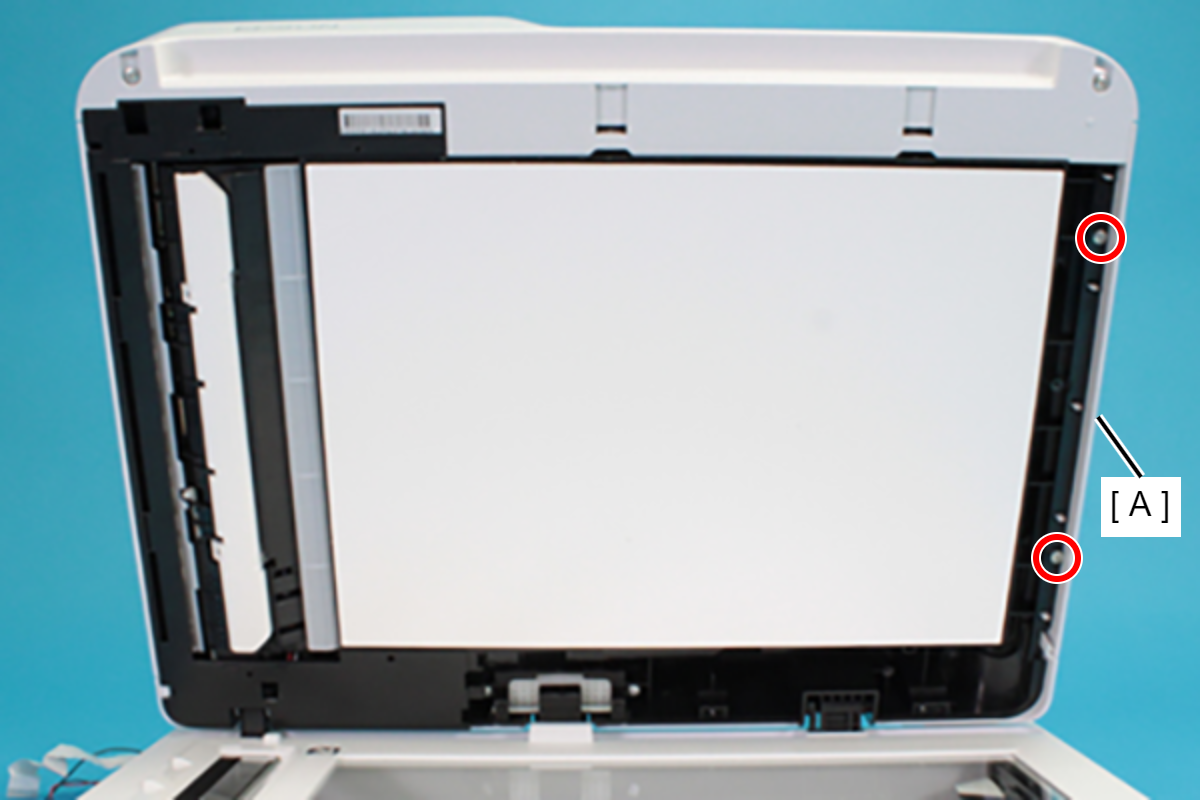

5. Remove the 2 screws, and then remove the ADF Right Cover (A).

   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

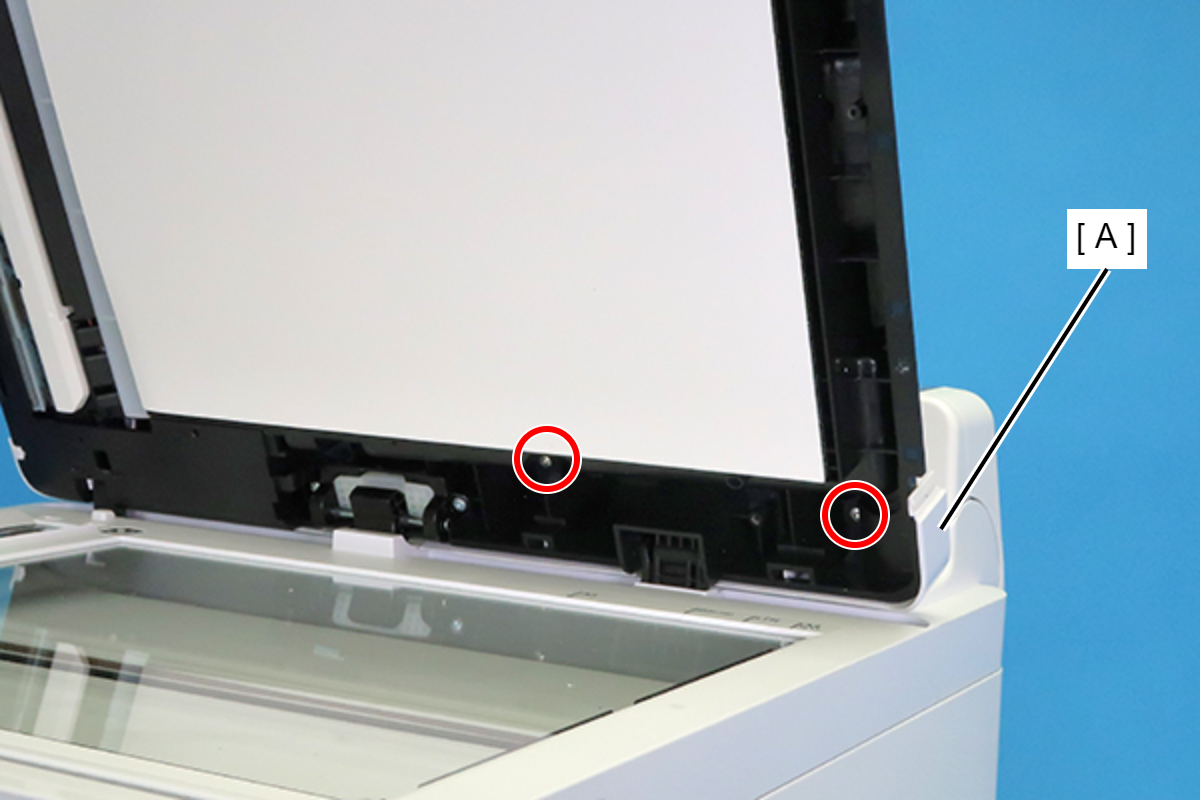

6. Remove the two screws securing the Rear ADF Cover (A).

   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

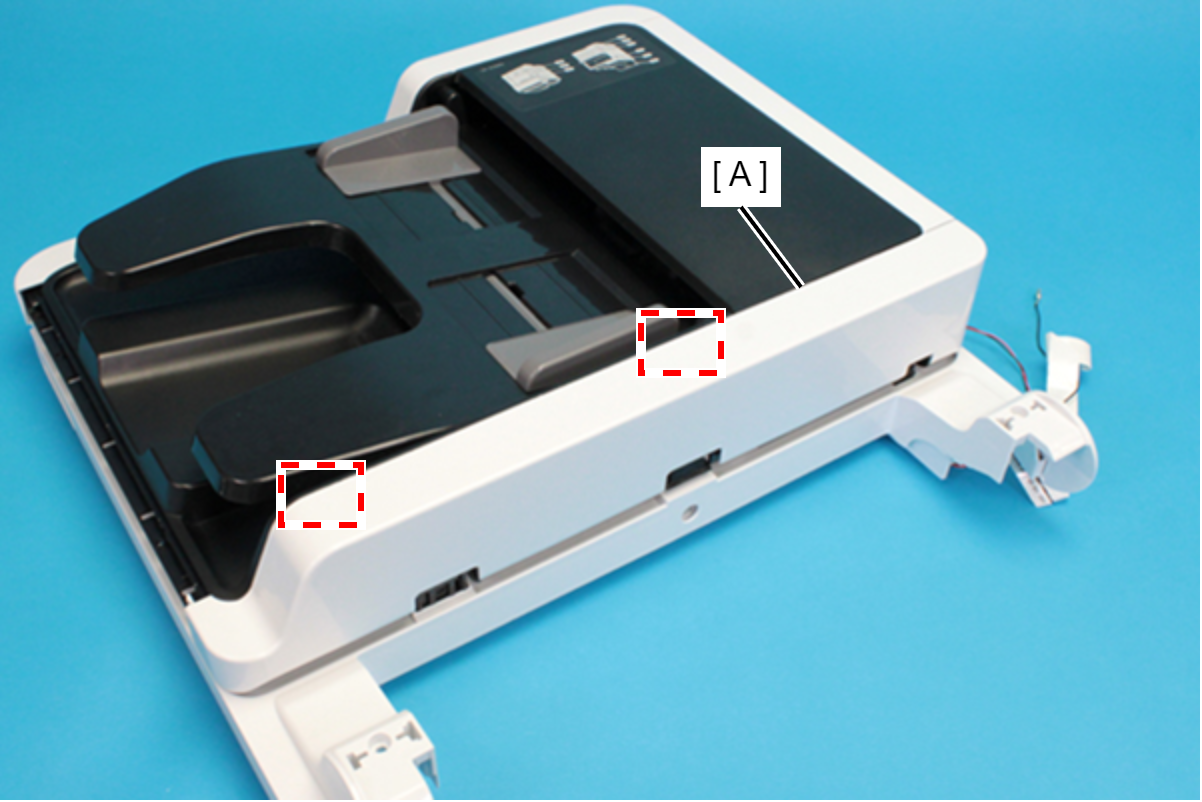

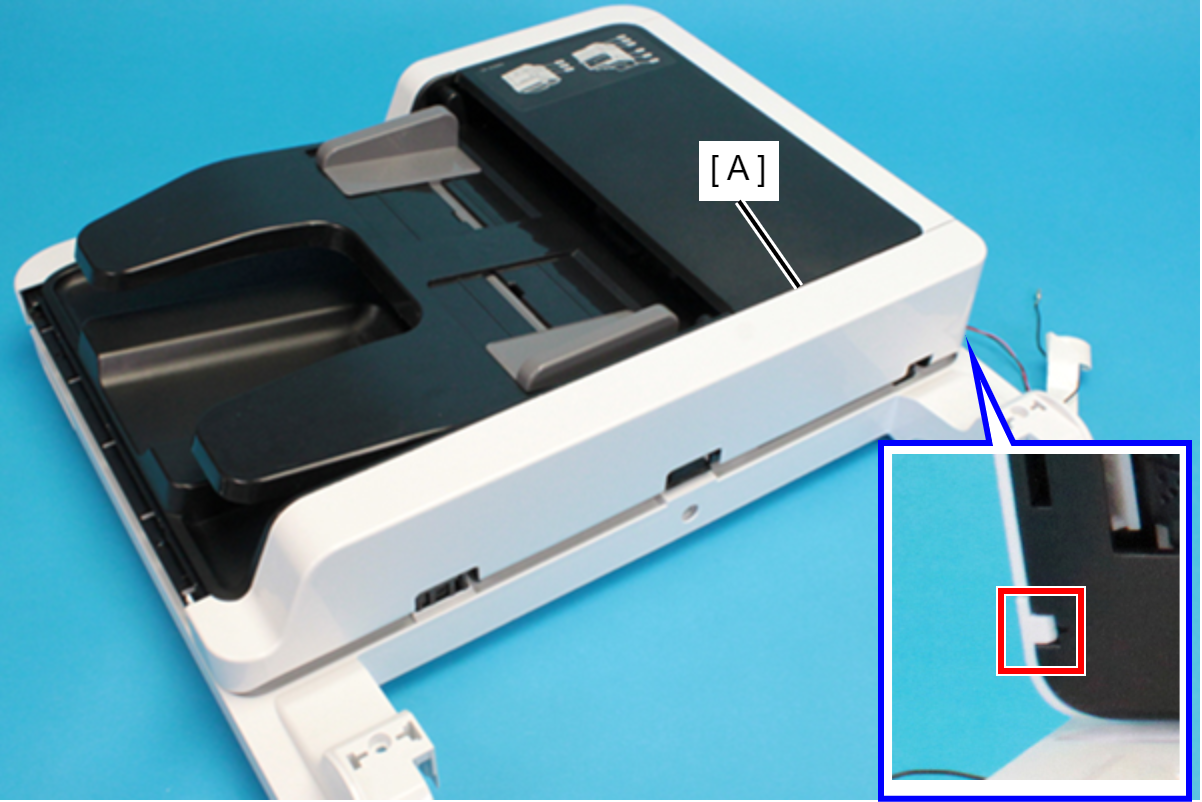

7. Disengage the hook of the Rear ADF Cover (A), then remove the Rear ADF Cover (A).




   Assembly / 組み立て

   Attach the two dowels of the Rear ADF Cover (A) to the holes on the ADF Base.
