# 202 Paper Feed Confirmation

Check the paper passing of the main unit (blank paper passing). Settings such Feed Tray, Duplex Printing Available or Not, etc. can be changed.

#Procedure

1. Start the service support mode. (Starting Service Support Mode)
2. Select [02 Check Pattern Print].

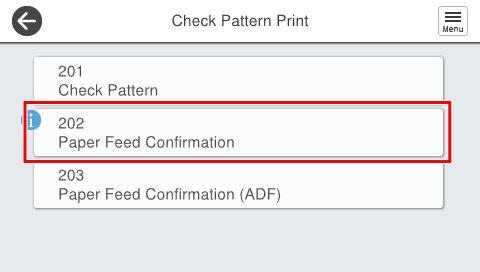

3. Select [202 Paper Feed Confirmation].

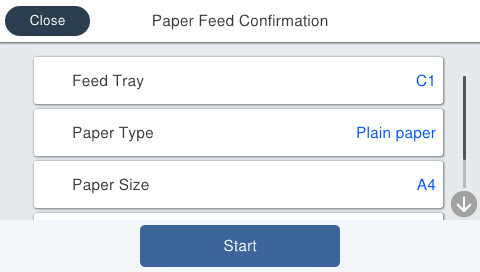

4. Press each setting item button to make print settings.




   Setting Items	Choice	Remarks
   Feed Tray	C1, C2, C3, C4, Rear ASF	---
   Paper Type	Plain Paper	Setting change not possible
   Paper Size	A4 / Letter	---
   Duplex setting	1-sided, 2-sided	---

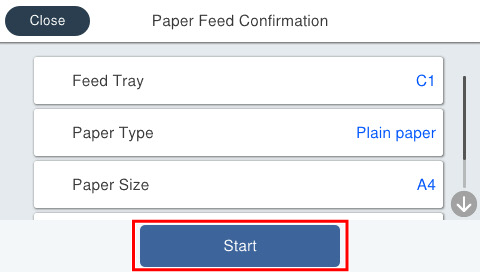

5. Press [Start].
