6014201 Head Ink Discharge
Overview
With the purpose of preventing ink leakage when replacing a print head, discharge ink in order to relieve pressure of ink in the supply system from the head (however, unnecessary during normal head exchanges).
Required Tool
---
Procedure
- Start the service support mode. (Starting Service Support Mode)
- Select [06 Individual Adjustment].
- Select [601 Printer/Additional Cassette].

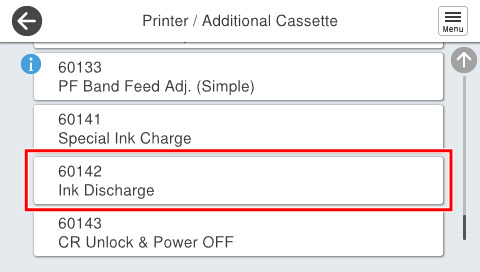

- Select [60142 Ink Discharge].

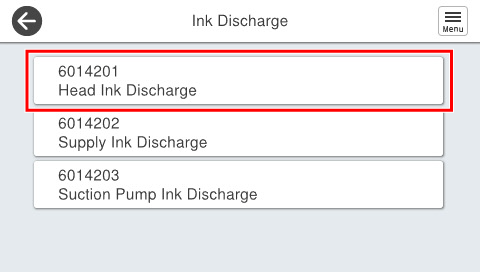

- Select [6014201 Head Ink Discharge].

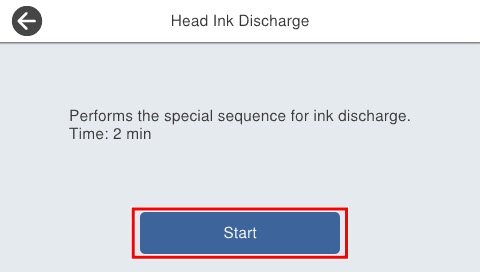

- Press [Start].
