# 60128 Cassette PE Adj.

#Overview

Use software to correct the paper detection position offset caused by variations in the PE sensor attachment position and print head position.

#Required Tool

• Plain paper (A4 or Letter)

#Procedure

1. Start the service support mode. (Starting Service Support Mode)
2. Select [06 Individual Adjustment].

3. Select [601 Printer/Additional Cassette].

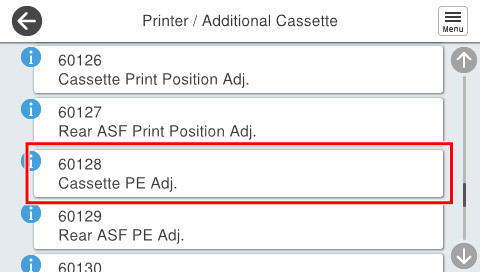

4. Select [60128 Cassette PE Adj.].

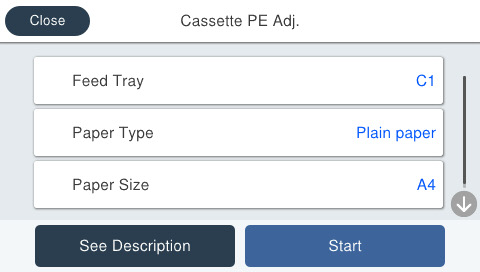

5. Press each setting item button to confirm print settings.



   Setting Items	Choice	Remarks
   Feed Tray	C1	Setting change not possible
   Paper Type	Plain Paper	Setting change not possible
   Paper Size	A4 / Letter	---

6. Load paper in the selected feed tray and press [Execute]. Paper is discharged as blank.

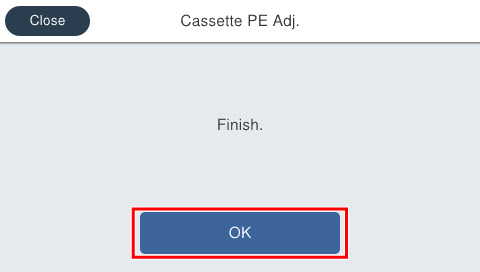

7. Press [OK] to complete the adjustment. The adjusted values are saved in the printer.
