ADF/SCN Open Sensor

  1. Remove the four screws, then remove the Rear Cover (Back) (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    Assembly / 組み立て

    Attach the two dowels of the Rear Cover (Back) (A) to the positioning holes on the Housing Left (B) and Housing Right (C).
  2. Remove the two screws, then remove the Rear Top Cover (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  3. Open the ADF/SCN Unit and remove the three screws that secure the Housing Left (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  4. Lift the Housing Left (A) to release the two hooks on the front side of the Housing Left.
  5. Disengage two hooks on the rear side of the Housing Left (A), and remove the Housing Left (A).


    Assembly / 組み立て

    Insert the eight tabs on the Housing Left (A) to the positioning holes of the Housing Upper (B) and the RIPS Unit (C).
  6. Disengage the hook, and remove the Maintenance Box Cover (A).
  7. Open the ADF/SCN Unit and remove the four screws that secure the Housing Right (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  8. Lift the Housing Right to release the two hooks on the front side of the Housing Right, then remove the Housing Right.


    Assembly / 組み立て

    Insert the four tabs of the Housing Right (A) to the positioning holes on the Ink Supply Unit.
  9. Remove the six screws, then remove the Housing Upper (A).
    • : C.B.P-TITE-SCREW-3x10-F/ZN-3C

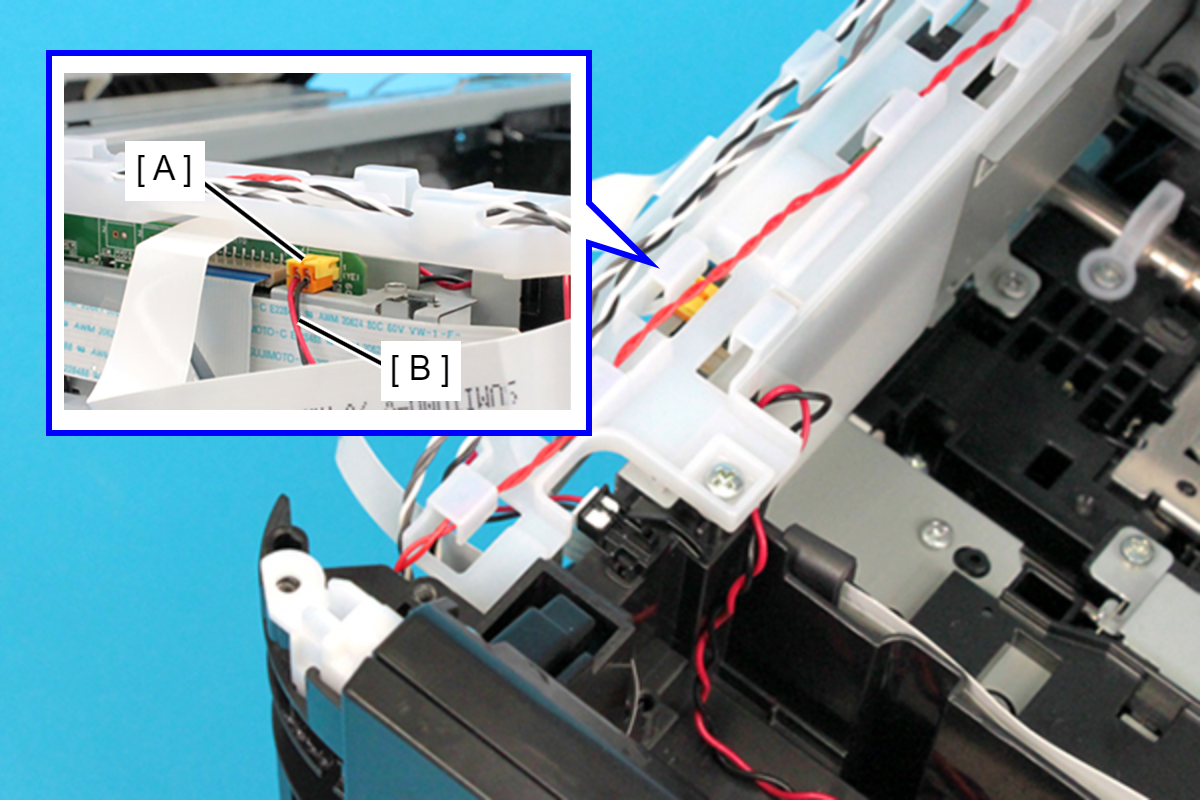

  10. Disconnect the cable from the connector (CN609) (A) on the Main Board Assy.

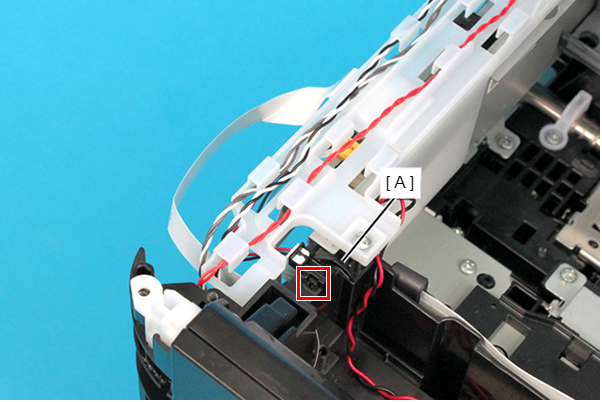

  11. Disengage the hook by pushing up the ADF/SCN Open Sensor (A).

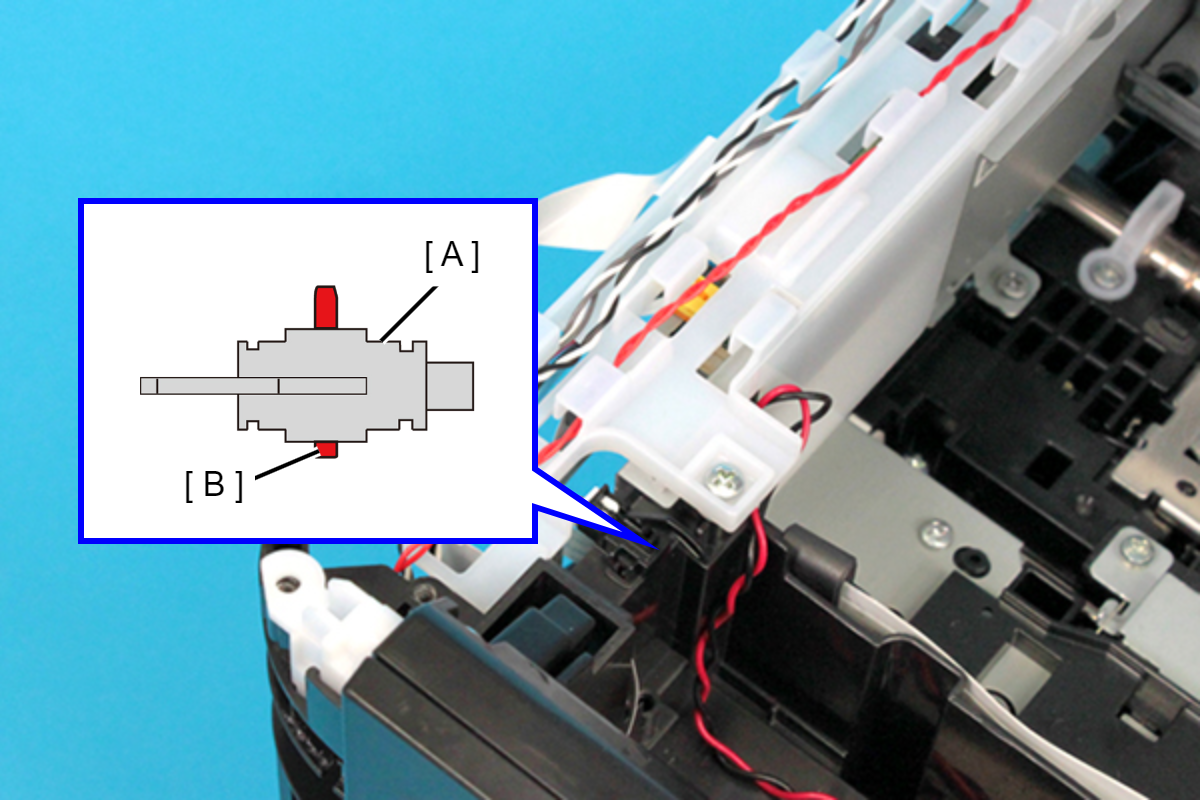

    Caution / 注意

    The length of the two hooks on the ADF/SCN Open Sensor differs. When removing it, disengage the shorter hook (B).
