# Separation Pad Spring　

1. Open the ADF cover (A).

2. Disengage two hooks of the Separation Pad (A).

3. Disengage two dowels of the Separation Pad (A), then remove the Separation Pad (A).

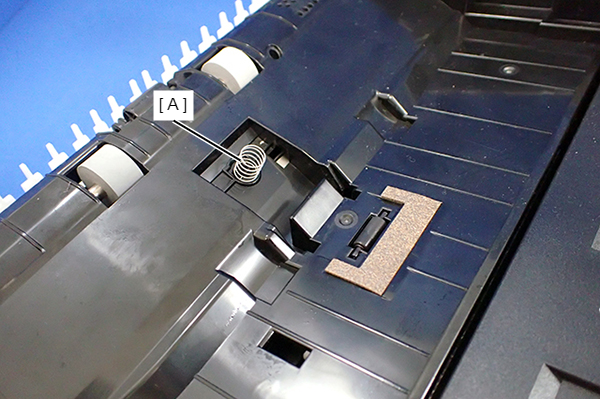

4. Remove the Separation Pad Spring (A).




   Assembly / 組み立て

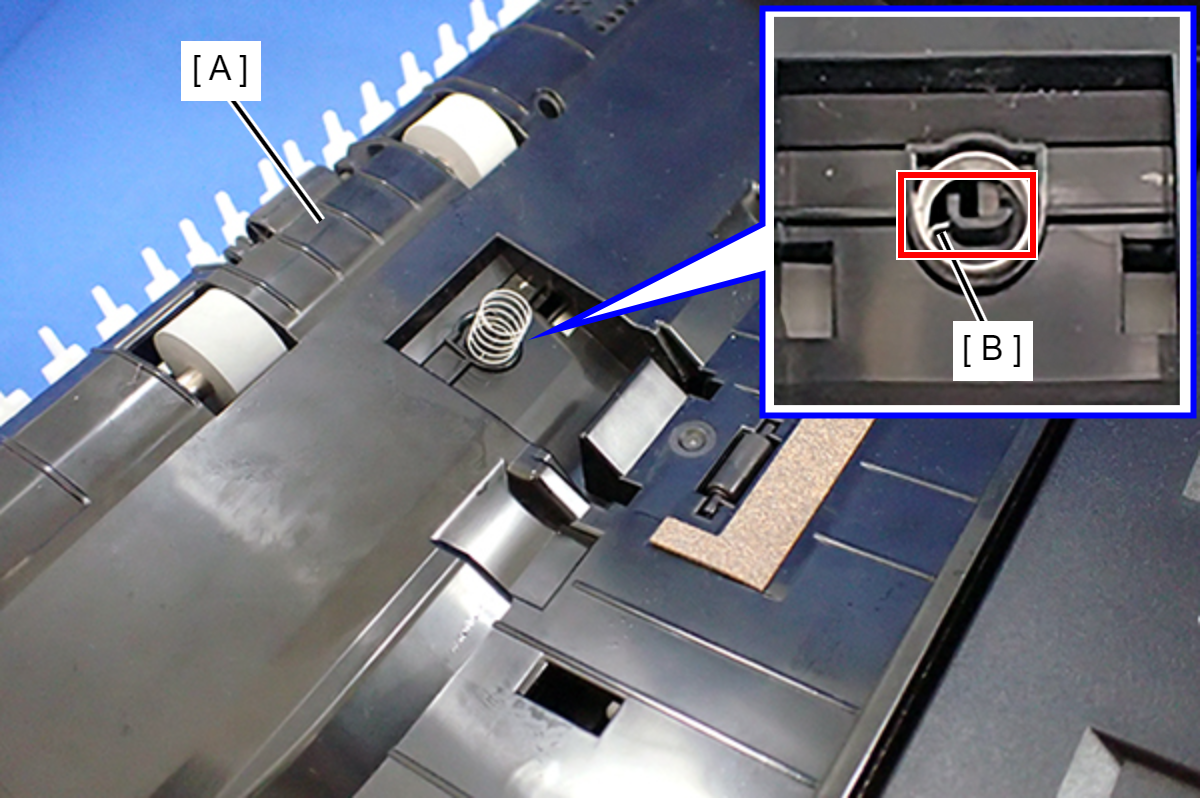

   Set the leg (B) of the Separation Pad Spring under the tab on the ADF Base (A).
