EP-C800 Series transport preparations

When you need to transport the printer, follow the steps below to pack the printer.

Caution / 注意

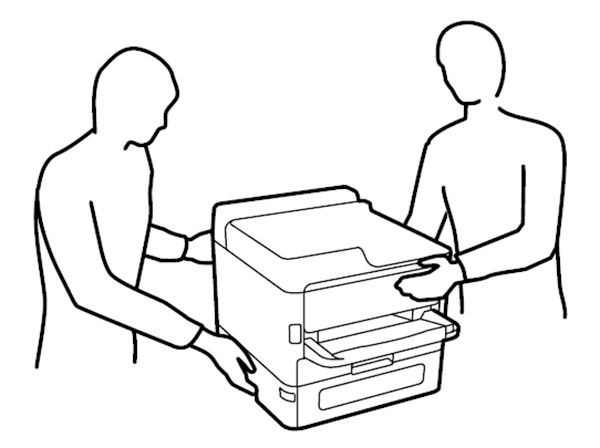

  • When lifting the printer, two or more people should assume the correct positions as shown below. The printer may fall if lifted incorrectly or by one person, and your fingers could be caught when lowering the printer which may cause an injury.
  • Do not tilt the product more than 10 degrees forward or back while moving it. Failure to observe this precaution could result in the printer falling over, causing accidents.
  • When storing or transporting the printer, avoid tilting it, placing it vertically, or turning it upside down. Ink may leak.
  • Do not remove ink packs. Removing these may dry out the printheads, and possibly prevent printing.
  • Do not remove the Maintenance Box. Ink may leak during transport.
  1. Turn off the printer.

  2. Make sure the power light turns off, and then unplug the power cord.

    Caution / 注意

    Unplug the power cord when the power light is off. Otherwise, the Printhead does not return to the home position causing the ink to dry, and printing may become impossible.
  3. Disconnect all cables such as the power cord and USB cable.
  4. Remove all of the paper from the printer.

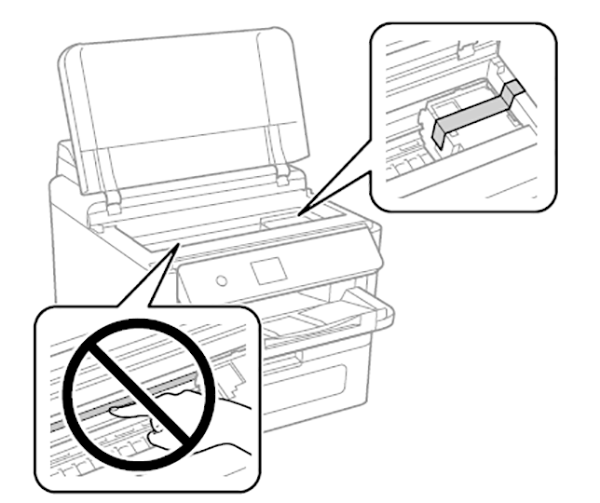

  5. Open the printer cover. Secure the Printhead to the case with tape.
  6. Close the printer cover.

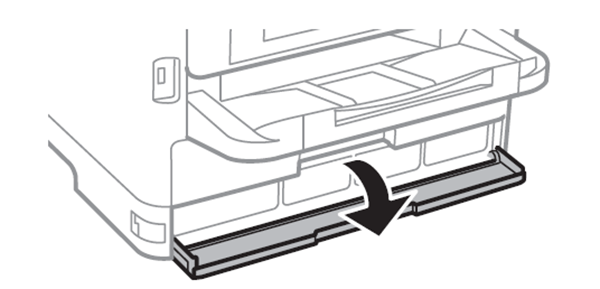

  7. Open the Ink cover.

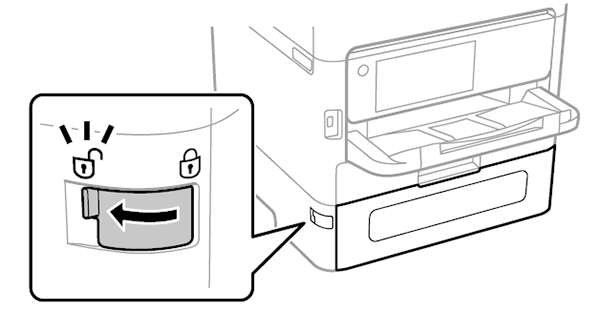

  8. If the ink cover is locked, you cannot open it. Release the cover lock.

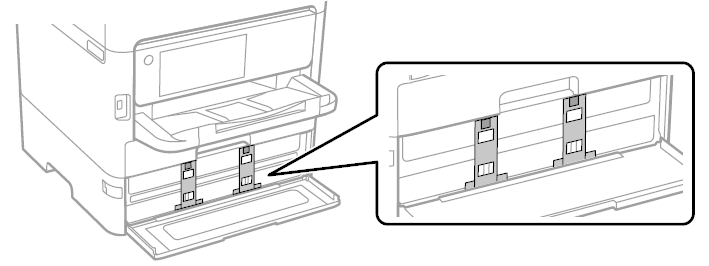

  9. Secure the ink tray by attaching the supplied protective material with tape so that the tray can not open.
  10. Close the Ink cover.

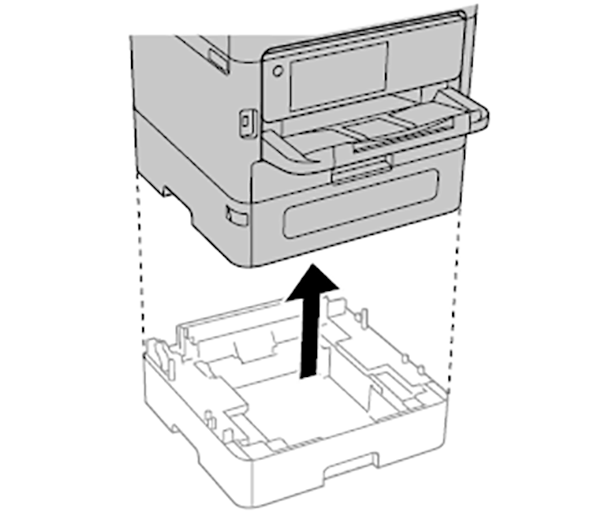

  11. Uninstall the optional paper cassette unit if it is installed.

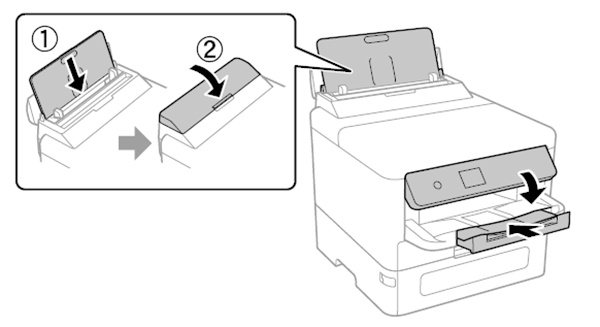

  12. Prepare to pack the printer as shown below.

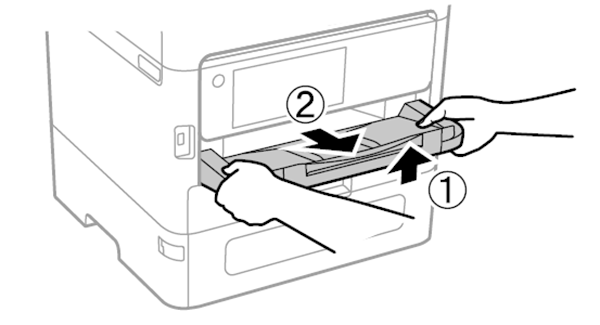

  13. Remove the output tray from the printer.
  14. Pack the printer in its box, using the protective materials.
Check Point / チェックポイント

When you use the printer again, make sure you remove the tape securing the print head and the protective material attached on the ink tray. If print quality has declined the next time you print, clean and align the print head.
