Ink Porous Pad, 4
- Disengage the hook, and remove the Maintenance Box Cover (A).

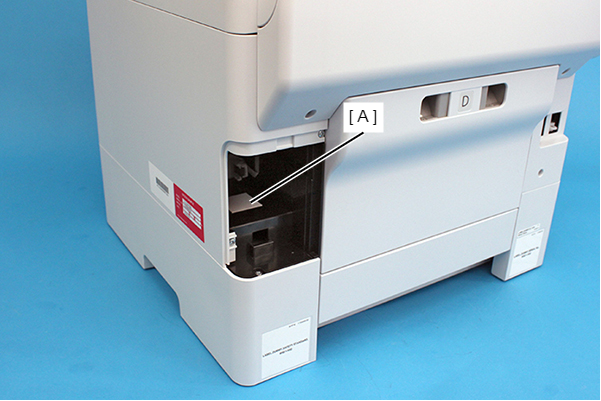

- Peel off the Ink Porous Pad, 4 (A).
