# 60102 PF Motor Correction

#Overview

Measure product variations to set the appropriate correction values. Also, make a pass/fail judgment by calculating whether or not the operation load is within the expected range from the motor current value.

#Required Tool

---

#Procedure

1. Start the service support mode. (Starting Service Support Mode)
2. Select [06 Individual Adjustment].

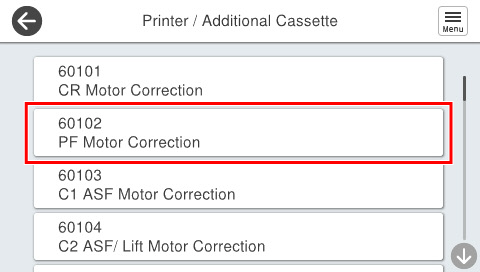

3. Select [601 Printer/Additional Cassette].

4. Select [60102 PF Motor Correction].

5. Press [Start].

6. Press [OK] to complete.

   Check Point / チェックポイント

   If an error is displayed, confirm the following and execute again. Motor cable connection
